5.7 Printer Refer to Figure 5-9
Printer records all cycle data on 2-1/4" (57 mm) wide single-ply
paper. See S
ECTION 8, ROUTINE MAINTENANCE for paper changing
procedure. Printer functions controlled by touch-screen pads are as
follows:
• Paper Feed – (appears on typical In-cycle screen) Press to feed
out paper from the roll stored inside the control. Accessible
during all phases of operation, including alarm conditions. Press
and hold for continuous feed.
• Status Print – (appears on typical In-cycle screen) Press to
obtain a printout of current cycle phase and conditions (when
unit is in cycle). This touchpad is only visible during cycle
operation.
• Duplicate Print – (appears on Menu screen) Press to obtain a
complete duplicate printout of the last previously run cycle
(when unit is not in cycle). This touchpad is only visible on the
screen during Complete and Change Values menu. The
Duplicate Print touch screen pad is not visible upon first power-
up of the day.

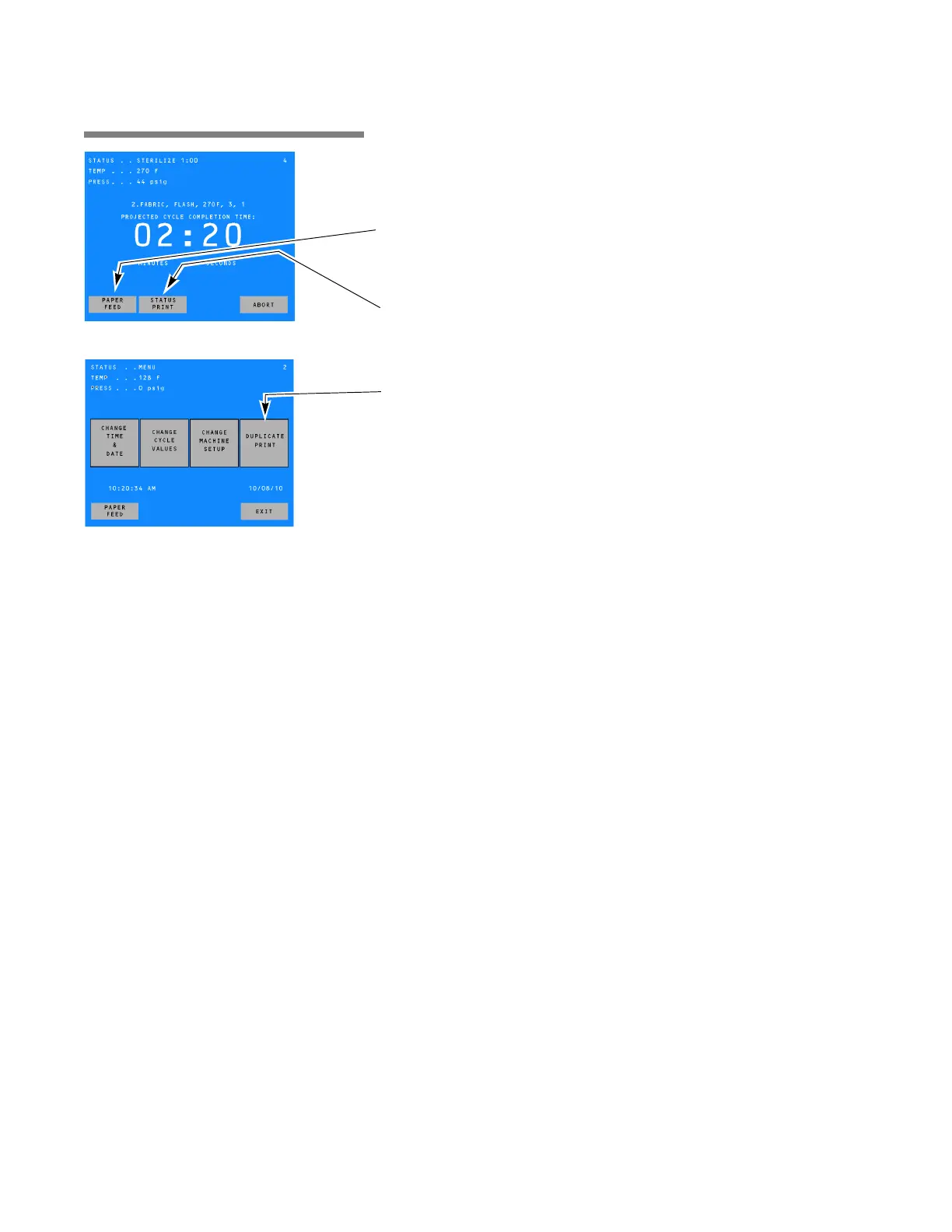

Menu Screen
Typical In-Cycle Screen
