6-20

P129394-176 Operator Manual Sterilizer Operation

Table 6-4. Factory-Set SFPP Sterilizer Cycles and Cycle Values

Cycles

Sterilize

Temp.

Sterilize

Time

Dry

Time Recommended Load

Validation

Standard

SFPP Cycle

270°F

(132°C)

Minutes

Double-wrapped instrument

trays, porous and non-

porous loads. Maximum

weight per tray, 25 lb

(11.3 kg)

ST-8:2008

SFPP Cycle

270°F

(132°C)

Minutes

Fabric Packs ST-8:2008

SFPP Cycle

275°F

(135°C)

Minutes

Double-wrapped instrument

trays, porous and

non-porous loads.

Maximum weight per tray,

25 lb (11.3 kg)

ST-8:2008

* Dry time can be reduced to 5 minutes for a single fabric pack.

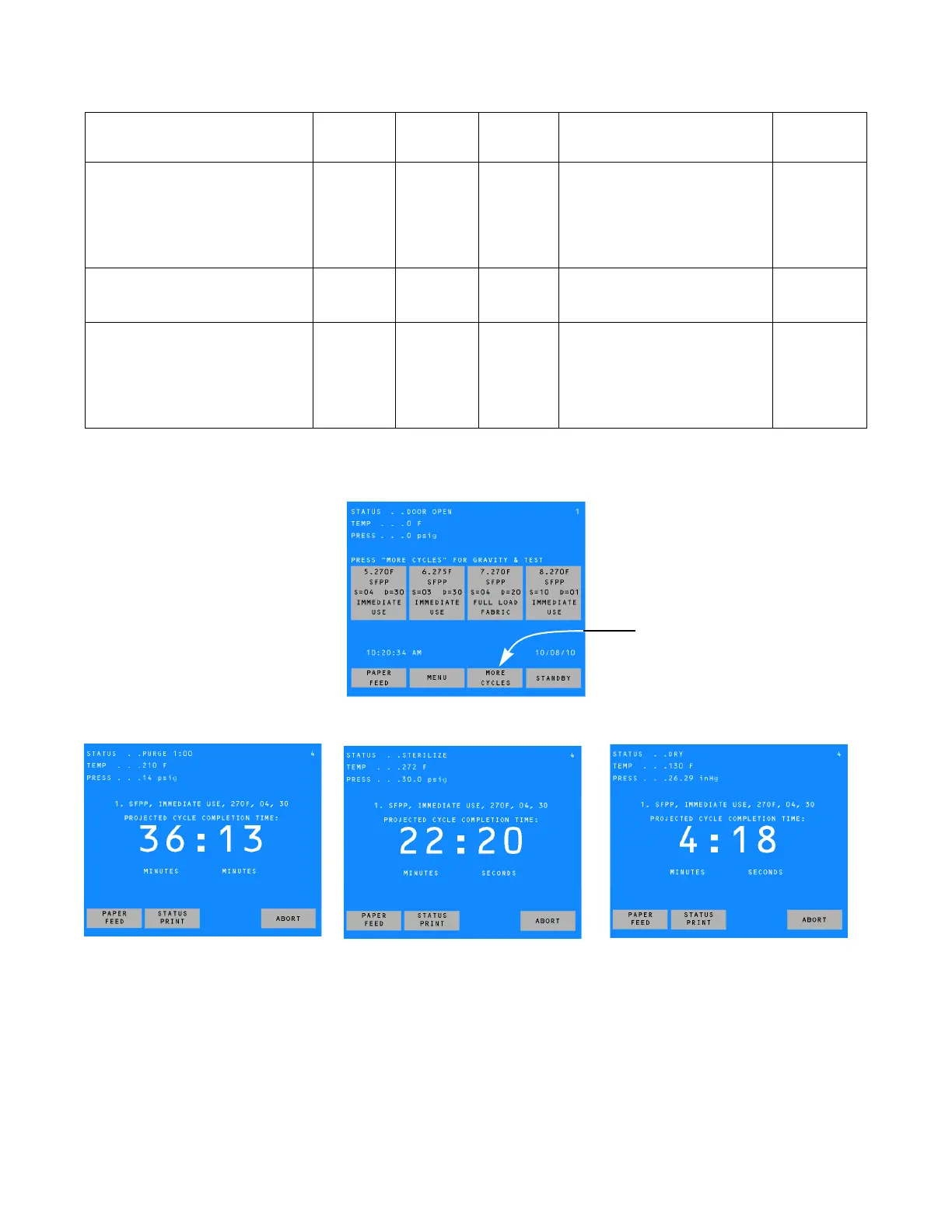

Figure 6-10. SFPP Cycle In-Cycle Screens

Cycle Selection Screen

Condition Phase Sterilize Phase Exhaust Phase

NOTE: Countdown time on display is estimated; timer self-corrects estimated time at beginning

of each phase.

Press for More Cycles
