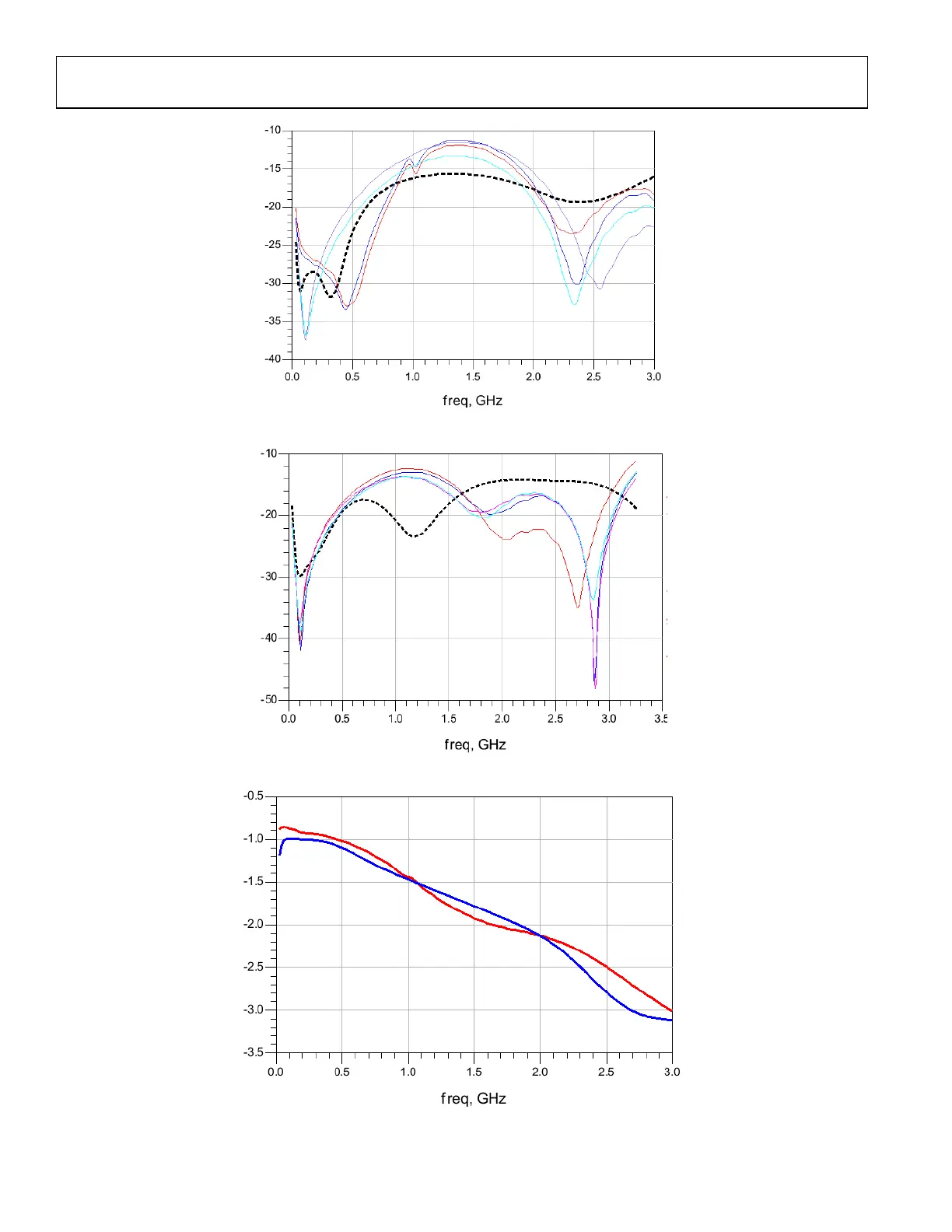

POWER SUPPLY RECOMMENDATIONS
TBD.
Table 103. Instruction Explaining How to Handle ADRV9001 Unused Pins
Pin No. Type Mnemonic Unused instructions
A1, A2, A13, A14, B2 to B5, B10
to B13, C2, C5, C10, C13, D1 to
D6, D9 to D14, E6, E9, F1 to F3,
F6 to F9, F12 to F14, G2, G13, J1
to J14,
Input VSSA Not applicable.
A5 Input VRFVCO2_1P3 Not applicable.
A6 Input/Output VRFLO2_1P0 Not applicable.
A7 Input MODEA Not applicable.
A8 Input RBIAS Not applicable.
A9 Input/Output VRFLO1_1P0 Not applicable.
A10 Input VRFVCO1_1P3 Not applicable.
A11, A12 Input EXT_LO1-, EXT_LO1+ Connect to VSSA.
B1, C1 Input RX2A-, RX2A+ Connect to VSSA.
B6 Output VRFVCO2_1P0 Not applicable.
B7 Input AUXADC_2 Do not connect.
B8 Input AUXADC_1 Do not connect.
B9 Output VRFVCO1_1P0 Not applicable.
B14, C14 Input RX1A-, RX1A+ Connect to VSSA.
C3, C4 Input RX2B+, RX2B- Connect to VSSA.
C6
Input/
Output
VANA2_1P0 Not applicable.
C7 Input VANA2_1P3 Not applicable.
C8 Input VANA1_1P3 Not applicable.
C9 Input/ Output VANA1_1P0 Not applicable.
C11, C12 Input RX1B-, RX1B+ Connect to VSSA.
D7, D8 Input MCS+, MCS- Connect to VSSA.
E1 Output VRX2LO_1P0 Not applicable.
E2 Input VRX2LO_1P3 Not applicable.
E3, E12, F4, F5, F10, F11, G4, G6,
G9, G11, H6, H9
Input/Output AGPIO_xx Do not connect.
E4 Input VRFSYN2_1P3 Not applicable.
E5 Input VCLKSYN_1P3 Not applicable.
E7, E8 Input DEV_CLK_IN+, DEV_CLK_IN- Not applicable.
E10 Input VAUXSYN_1P3 Not applicable.
E11 Input VRFSYN1_1P3 Not applicable.
E13 Input VRX1LO_1P3 Not applicable.
E14 Output VRX1LO_1P0 Not applicable.
G1, H1 Output TX2+, TX2- Do not connect.
G3 Input VTX2LO_1P3 Not applicable.
G5 Input VCLKVCO_1P3 Not applicable.
G7 Input VCONV_1P8 Not applicable.
G8 Input VAGPIO_1P8 Not applicable.
G10 Input VAUXVCO_1P3 Not applicable.
G14, H14 Output TX1+, TX1- Do not connect.
H2 Input VANA2_1P8 Not applicable.
H3 Output VTX2LO_1P0 Not applicable.
H4 Input AUXADC_3 Do not connect.
