UG-1828 Preliminary Technical Data
Rev. PrC | Page 30 of 338
SOFTWARE SYSTEM ARCHITECTURE DESCRIPTION
This section provides information about the device driver Application Programming Interface (API) software developed by ADI for the
ADRV9001 transceivers, as well as outlines the overall architecture, folder structure, and methods for using API software on the customer
platform.
Note:
• This document does not explain the API library functions. Detailed information regarding the API functions is in the doxygen
document included with the SDK (ADRV9001_API.chm) located at /pkg/production/.
• ADRV9001_API.chm is in compressed HTML format. For security reasons, .chm files can only be opened from a local drive. If
you attempt to open from a network drive, the file may look empty.
• The ADRV9001 is baseline device for the product family; therefore, all API and evaluation systems use this product number to
delineate the product.
For users who are new to this product family, we provide a simple flow chart which can guide you through evaluation, testing and
development of our platform and your own system:

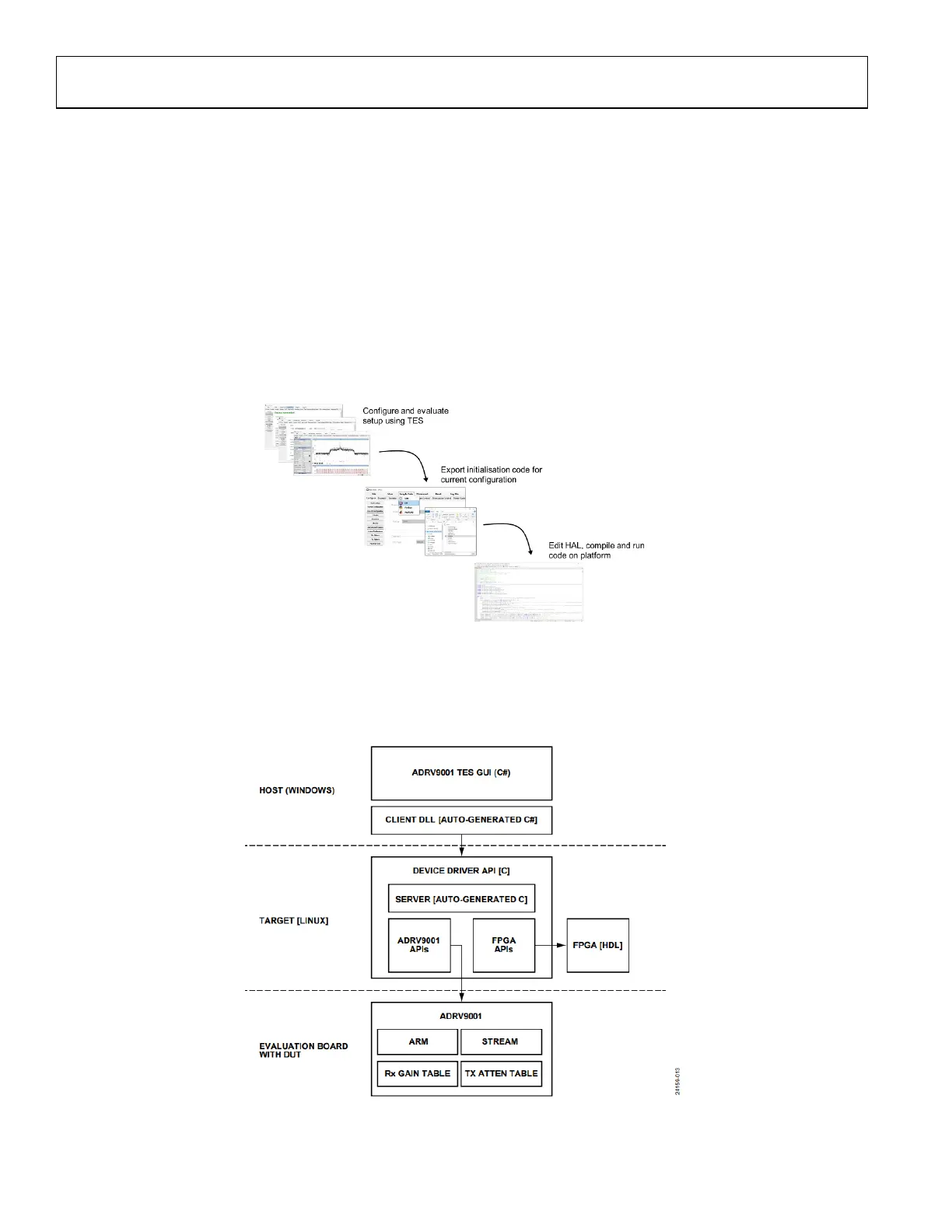

Figure 13: Development Flow Chart
SOFTWARE ARCHITECTURE
Figure 14. illustrates the software architecture for the ADRV9001 evaluation platform that Analog Devices provides. This chapter will take
a high-level look at the changes that need to be made to this architecture once the baseline setup for the evaluation board has been
explained.
Figure 14: ADRV9001 API Software Architecture (ADI Evaluation Platform)
