DAC Output Voltage Setup
(900 With CSS and I/O Options) – F 96
F 96 allows you to set up the DAC output voltage.

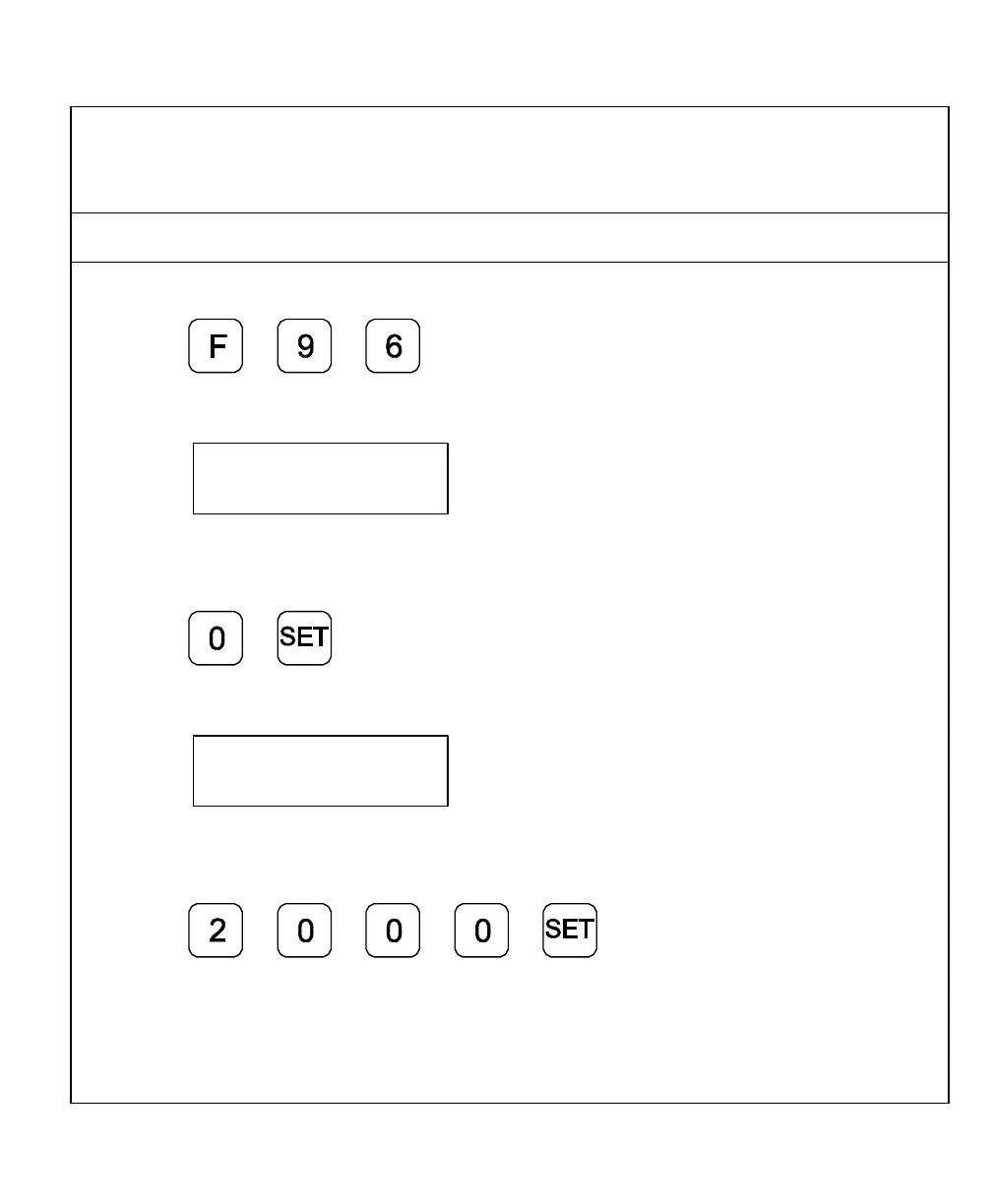

To set up the CSS feature:
1. Press to select DAC voltage setup.
The DRO displays the following in the message window:
Rpm 0v gi
prompting for the spindle
speed at 0V for Gear 1.
To enter the spindle speed at 0V for Gear 1 (For example, 0 RPM):
2. Press
The DRO displays the following in the message window:
Rpm i0v gi
prompting for the spindle
speed at 10V for Gear 1.
To enter the spindle speed at 10V for Gear 1 (For example, 2000 RPM):
3. Press
4. Repeat steps 1 through 3 for each existing gear range (maximum 5).
NOTE: Spindle speed refers to the speed of the spindle, not the spindle motor.
To Next Page
