6.3.6- Remote Input
Connect any triggered +12V signal
remote turn on lead for aftermarket
systems, +12V switched vehicle acces-
sory lead (on not autosense compat-
ible applications,) to turn on and
activate the PS8 and all of its functions
(See diagram 6.6)
6.3.7- +12V Input
+12V Positive fused connection to the
vehicle’s battery or constant power
source. (Fuse rating should be no
higher than 5 amps)
(See diagram 6.6)
6.3.8- Ground
Connect this lead to the vehicle’s
chassis or any clean grounding point.
The grounding point should be clean,
free of paint, grease, debris, etc., and
on bare metal. It is not recommended
to connect any ground wire of any
audio component to seat or seatbelt
bolts or hardware.
6.3.9 - DC Input Jack
By using an AC/DC wall plug adapter (not Included), the PS8 can be used in home or studio
applications. If you wish to use this feature of the PS8, please make sure to purchase a wall adapter
from a local electronics parts store with the following parameters. To operate this feature you will
be required to jumper a wire lead between the main power plug’s 12V and Remote turn on input
lead connection
(See section 6.3). If you power supply is not switched output operation you may
wish to connect a switch inline so you may turn the PS8 on and o.
Voltage rating +9V - +15V (Tip Positive)
Current Capacity - Minimum 2 Amps
Plug dimensions - 2.1mm I.D. x 5.5mm O.D.
6.4 - PS8 Digital Inputs & Sources
The PS8's digital platform is capable of receiving a variety of digital signals.
Please note that if you choose to run any of the PS8's digital signal inputs, you will be required to
use the PSC controller (sold separately) in order to have control of the system’s volume.
3 X 30 AMP MAX
ARC Audio Inc., USA
+12V GND
TURN
ON
3 X 30 AMP MAX
ARC Audio Inc., USA
+12V GND
TURN
ON

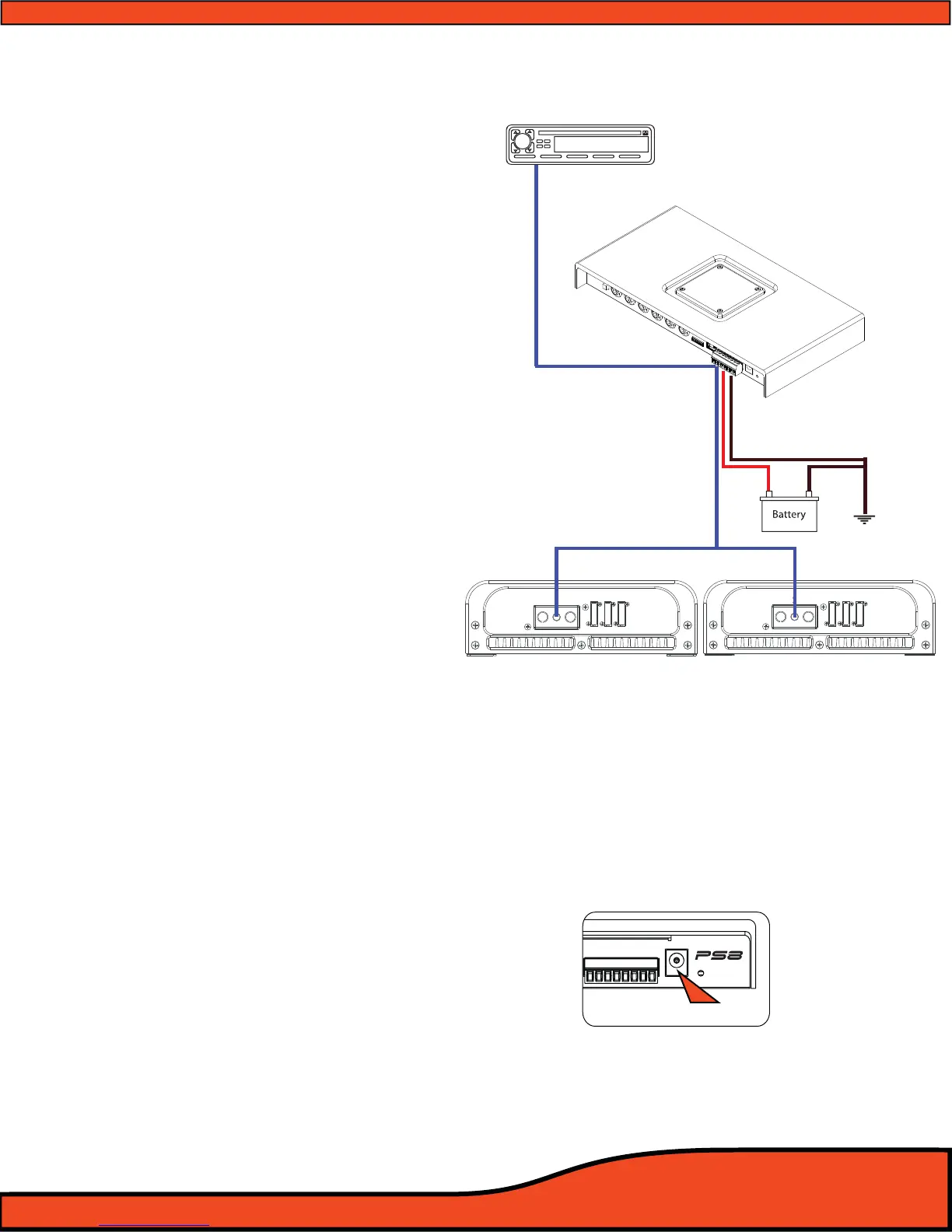

Diagram 6.6
+12V
GND
REM - IN
REM - OUT
P - 1
P - 2
ILLUM
SIG GND -
DC Input Jack
Diagram 6.7
