12.6 - Equalization Control Panel
The PS8 oers users one of the most advanced equalizer options available to the car audio market. Depending
on the user mode being accessed during operation, users have access to eight channels of 31-Band, 1/3rd
Octave equalization in .25dB steps, and a rst of its kind, global and linking mode, unheard of in existing mobile
electronics designs. Advanced mode users, have the option of the 31-band, 1/3rd octave EQ, or 8 channels of
31-band parametric EQ with fully variable frequency centers and band "Q".
12.6.1 - Equalization Channel Selection Panel
To make adjustments to the EQ on the any of the eight channels
on the PS8 (whether 1/3rd Octave or Parametric), users must
select the desired channels to be aected. This section is the
location that users will have to interface with to make these
channel selections during the tuning process.

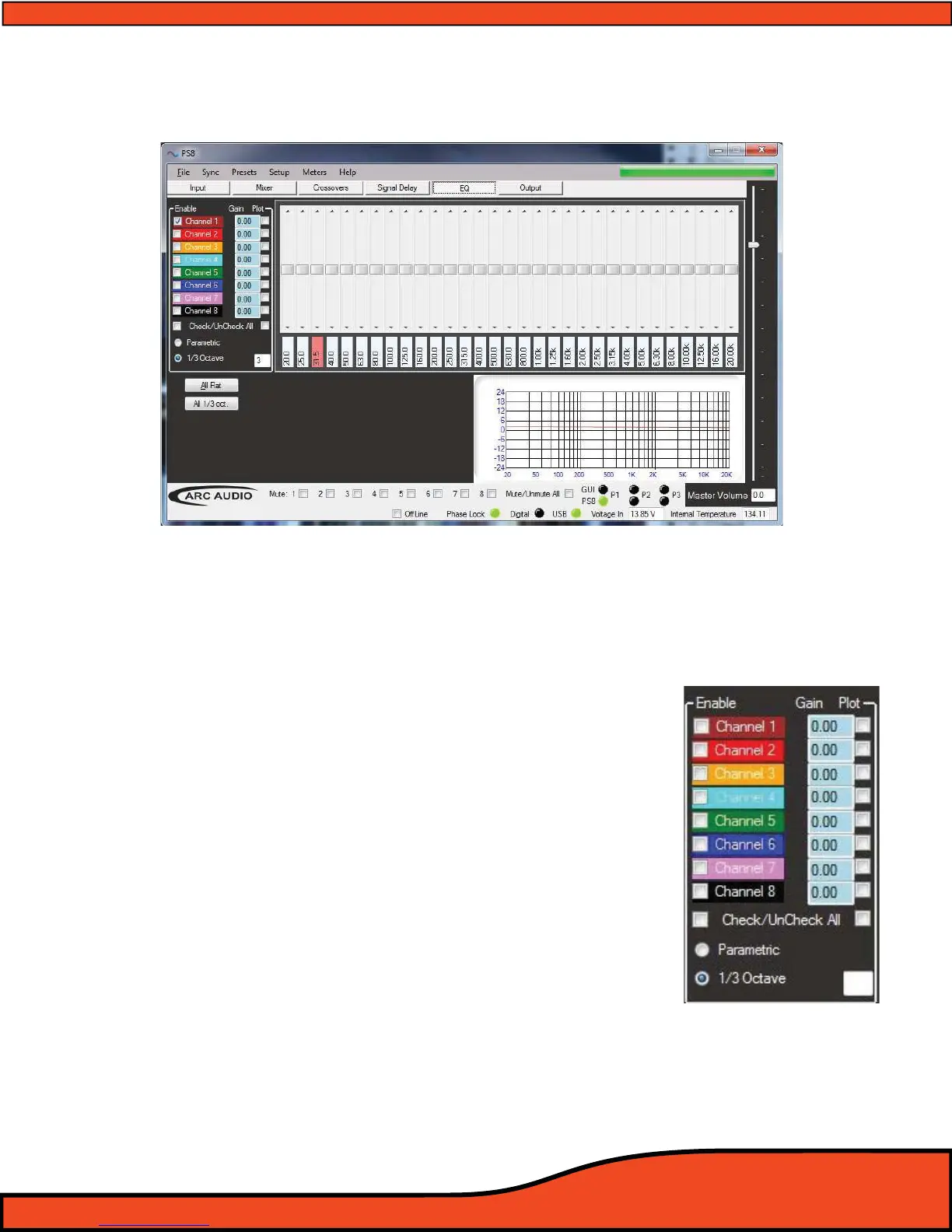

(See diagram 12.35)
Diagram 12.35
