12.7 - Signal Output Control Panel
The PS8's signal output trim level control panel
(See diagram 12.54) allows users to manually attenuate each of the
8 output channels, reducing the physical output of each channel individually or as paired channels. This feature
allows for great exibility of the PS8 with other brands of ampliers that cannot handle 8 volts of input signal, as
well as allowing users to use the output trim circuit as a way to assist in tuning a system when using an RTA for
an optimized balance without the need of excessive equalization.
12.7.1 - Master Volume Control
(See diagram 12.55)
The Master Volume slider control adjusts the main output volume of the PS8. The adjustment is made
post EQ, Crossover, Delay etc., so that the dynamic range and accuracy of the signal is not changed or
altered in any way.
This master volume is controllable thru the PS8 user utility main panel as well as thru the PSC controller
(Optional) for level setting, as well as control of the system’s volume level when using any of the digital
inputs.
The master volume control in this panel mirrors and reects the adjustments made on the "Master
Volume" controls on the main users interface panel.

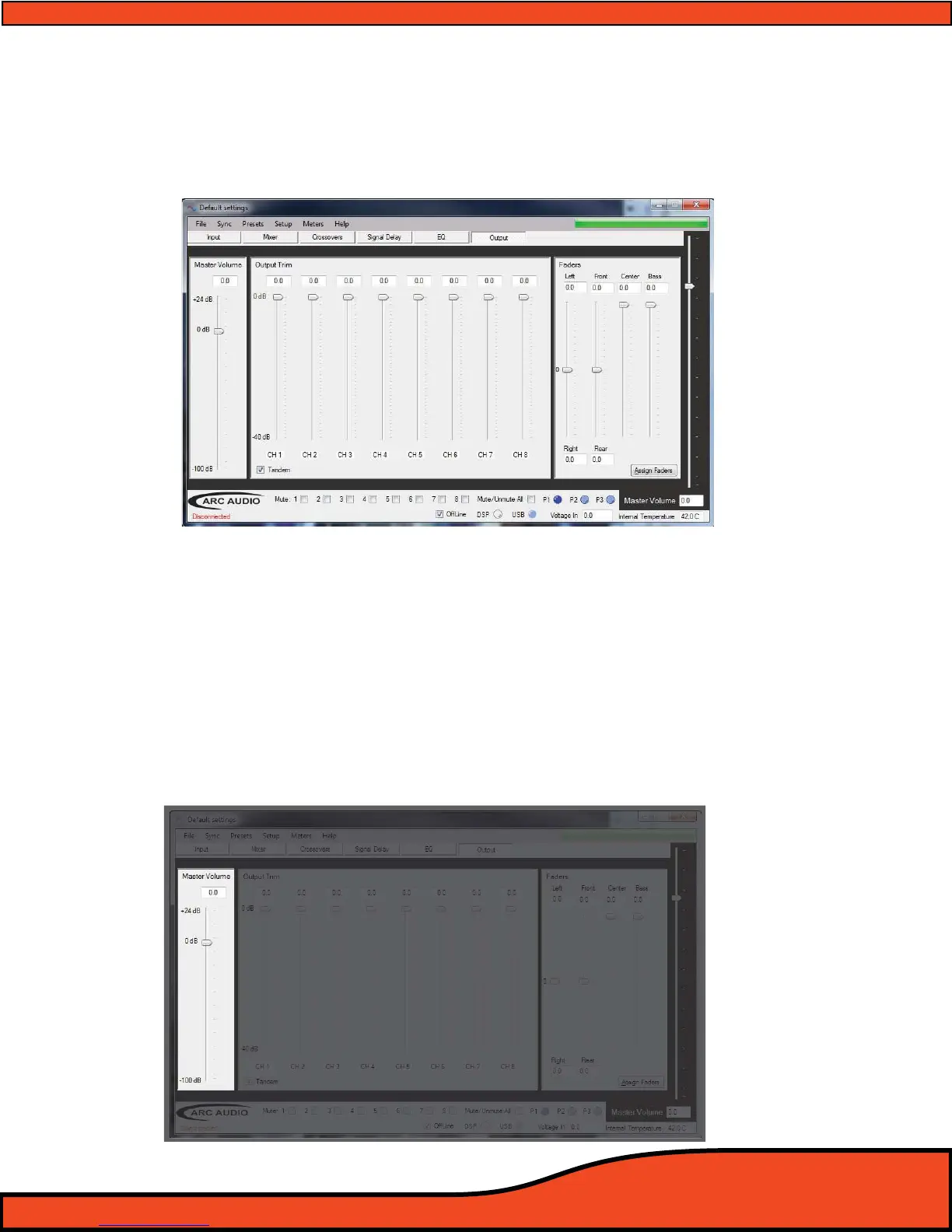

Diagram 12.54
