ARC Audio PS8 - Input;Output Signal Router Assignment Check Box Grid; Output Channel Assigned Display

Diagram 12.8
Channel 5&6 Input
Summed to Channel
8 output
Diagram 12.7

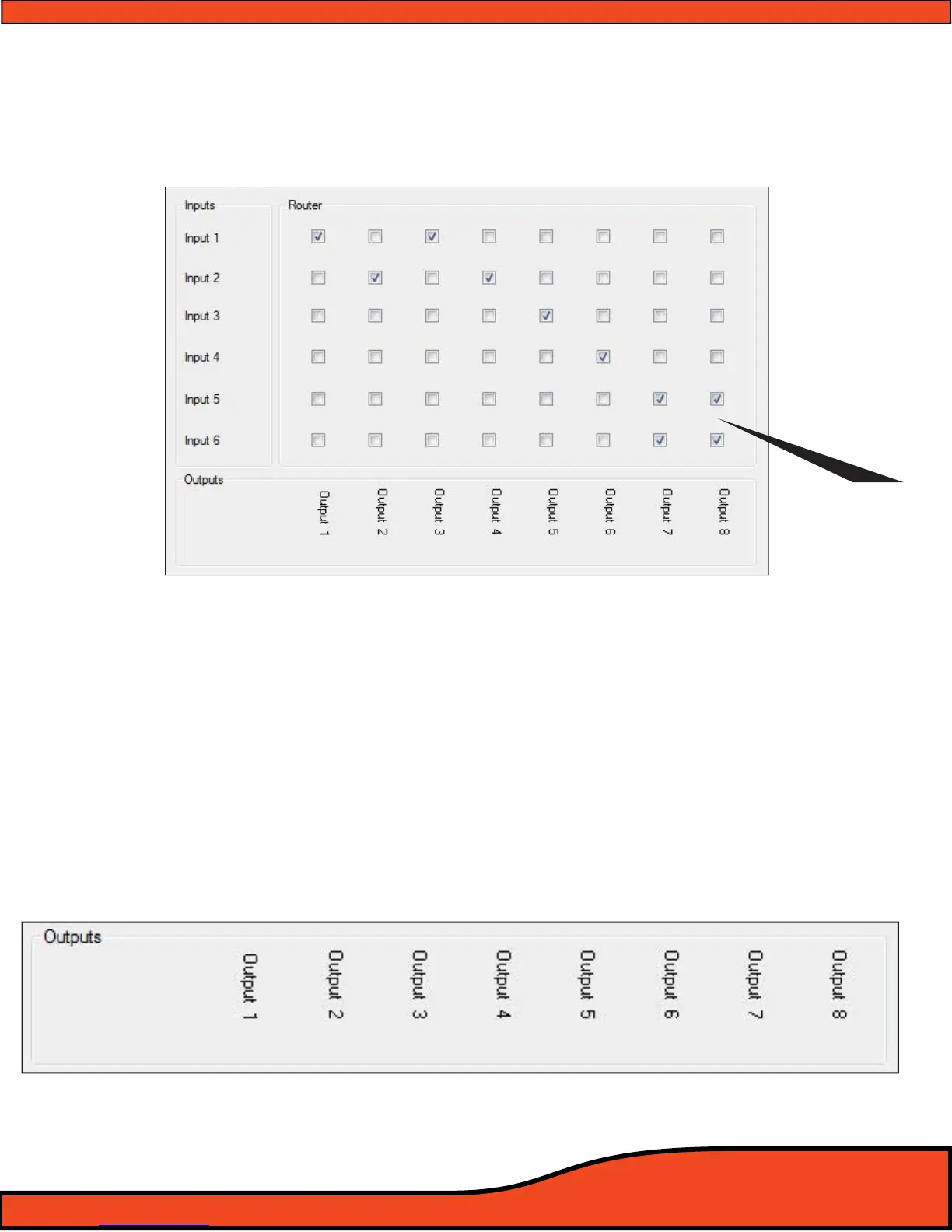

12.2.2 - Input/Output Signal Router Assignment Check Box Grid
The Input/Output router assignment grid allows you to select the specic path and route of any of the 6
channels of analog in any conguration to any of the eight channels of output on the PS8. To select a path
intersection, simply click on the desired checkbox.
(See diagram 12.7).
If you need to sum multiple input channels together to an individual output channel (For example, Signal
summing for OEM integration, or mono assignment of two channels for subwoofer applications), the system
will automatically adjust the input path signal level between the channels to prevent unwanted clipping and to
balance the signal level equally between the selected channels by balancing the total signal level of all of the
inputs into the single channel to not exceed 100% total signal level.
(See diagram 12.7).
12.2.2.1- Output Channel Assigned Display
When in standard user mode, this area
(See diagram 12.8) indicates the individual output channels and
the user dened names for these outputs
(See Section 10.1)
