Diagram 14.10
Diagram 14.11

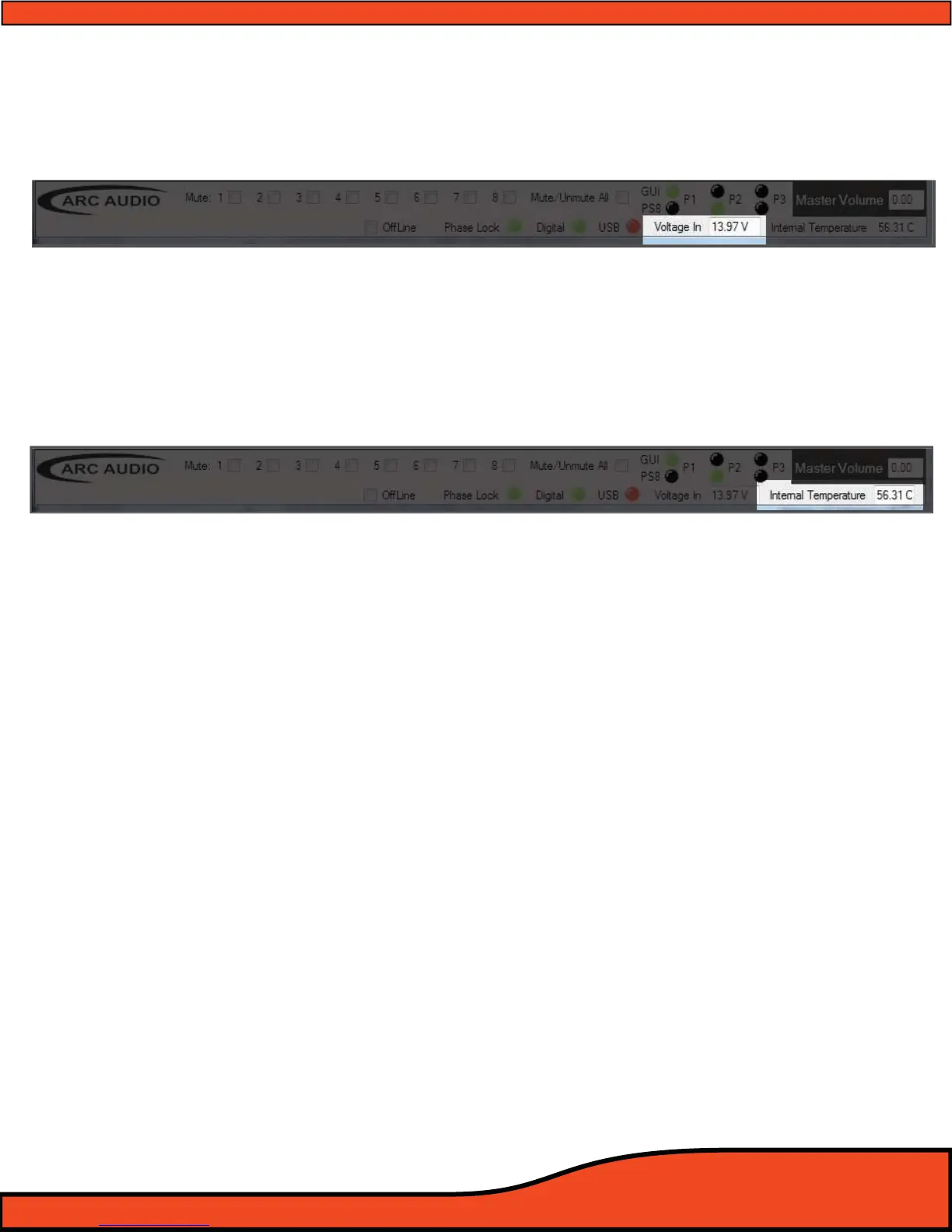

14.8 - System Voltage Display (See diagram 14.10)
The system voltage display allows you to see your vehicle’s system voltage in real time at the PS8's main
input connector.
14.9 - PS8 Internal Temperature Readout
(See diagram 14.11)
The PS8's internal temperature readout displays the real time active temperature of the onboard DSP.
This readout is capable of displaying the temperature in both Fahrenheit and also Celsius which can be
selected in the PS8's system preference settings panel
(See Section 9.4.1.5.6).
