ARC Audio PS8 - Digital Indicator; Offline Mode Selection Box; Phase Lock; USB Connection Indicator

14.4 - Oine Mode Selection Box (See diagram 14.6)
The oine mode selection box allows users to disconnect from their PS8 while still physically connected
thru the USB cable. Oine mode allows users to make adjustments and tuning changes in a virtual
environment without having to actively make changes on the processor itself.
14.5 - Phase Lock
(See diagram 14.7)
The “Phase Lock” indicator noties users when the PS8 is seeing an active digital signal thru any of the
PS8’s digital inputs (Optical, Digital Coaxial & Bluetooth). If the indicator is red there is no active digital
signal present. If Green the PS8 is actively receiving a digital signal.
14.6 - Digital Indicator
(See diagram 14.8)
The "Digital" indicator shows users when they have "Digital" actively selected as the desired input type.
14.7 - USB Connection Indicator
(See diagram 14.9)
The USB Connection Indicator gives you conrmation of a proper connection and communication
between the PS8's internal DSP and the User interface on your PC. When connected via a USB cable and
in online mode, this indicator will ash a red pulse indicating that proper and stable connection has been
established.

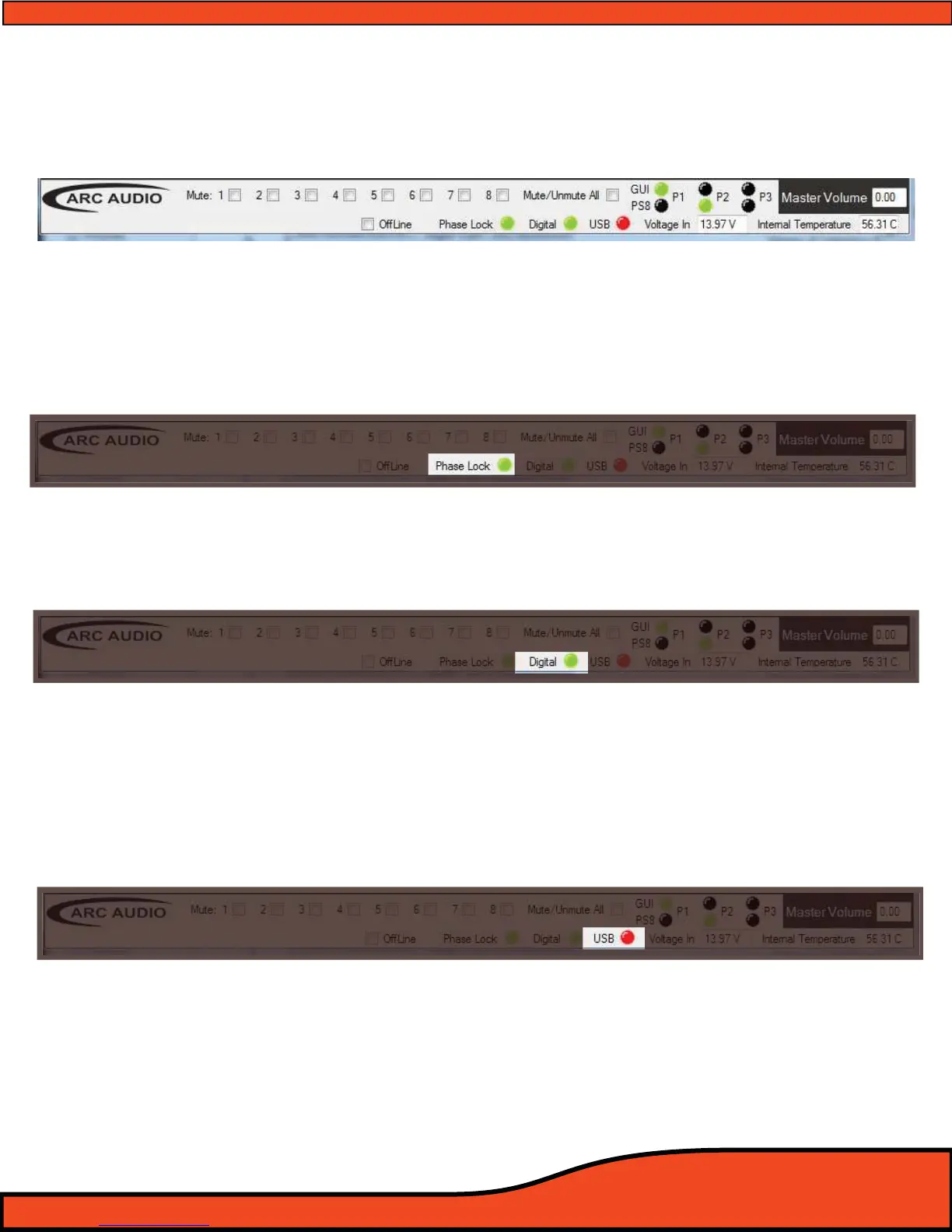

Diagram 14.6
Diagram 14.7
Diagram 14.8
Diagram 14.9
