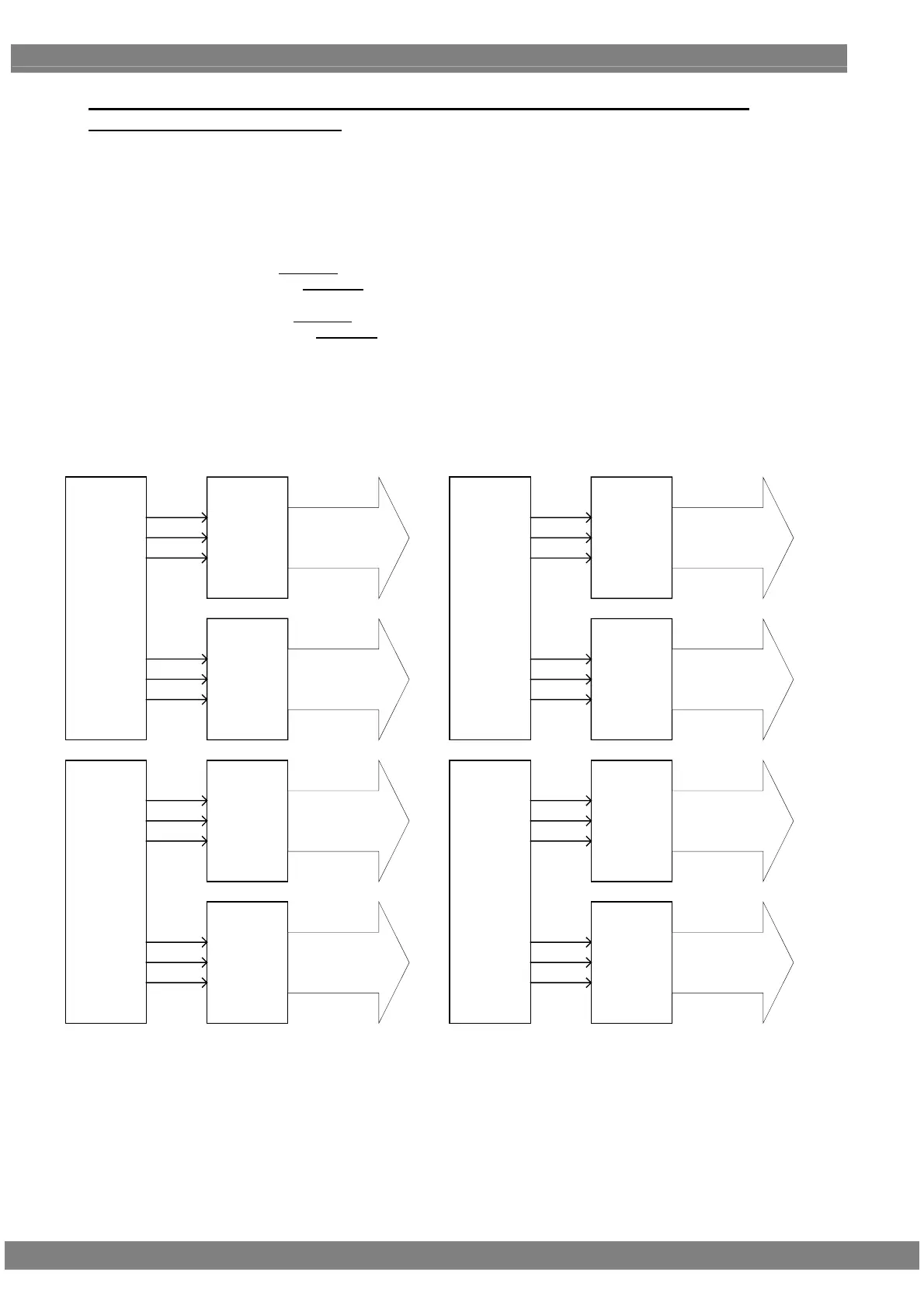

Specifications for Octal Link modes during 4K×2K with 2-board mode
(4K×2K 120 Hz mode) output
This mode is an output mode designed for 4K×2K 120 Hz inspections.
During the 4K×2K 2-board mode output, Dual Link equivalent to four channels is used through the use of two output
boards, and one screen is produced by combining the data of eight channels.
* In the first VM-1824 board (lower slot
), the data is output in channels 1 to 4 for the Master and Slave of Dual Link.
* In the second VM-1824 board (upper slot
), the data is output in channels 5 to 8 for the Master and Slave of Dual
Link.
* In the first VM-1824-A board (lower slot), the Single Link data is output as channels 1 to 4.
* In the second VM-1824-A board (upper slot
), the Single Link data is output as channels 5 to 8.
RGB 8-10Bit
[9:0]
Link0
Link1
Link2
Link3
Link4
Link5
1CH
2CH
2CH
Connector
3CH
4CH
【1st Board 出力(下段)】
Dual
Link
Master
Dual
Link
Master
Dual
Link
Srave
Dual
Link
Srave
Link0
Link1
Link2
Link3
Link4
Link5
1CH
Connector
RGB 8-10Bit
[9:0]
RGB 8-10Bit
[9:0]
RGB 8-10Bit
[9:0]
RGB 8-10Bit
[9:0]
Link0
Link1
Link2
Link3
Link4
Link5
5CH
6CH
2CH
Connector
7CH
8CH
【2nd Board 出力(上段)】
Dual
Link
Master
Dual
Link
Master
Dual
Link
Srave
Dual
Link
Srave
Link0
Link1
Link2
Link3
Link4
Link5
1CH
Connector
RGB 8-10Bit
[9:0]
RGB 8-10Bit
[9:0]
RGB 8-10Bit
[9:0]
【4Kx2K 2Board 8CH 出力】
[4K×2K 2-board 8-channel output]
[1st board output (lower slot)] [2nd board output (upper slot)]
