Manual, Air Module, AH2
Document #9620-20-D-AH2-09
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
D-2
D. Air Modules
AH2-M/T, AH3-T, AH4-T—Air Module
1. Product Overview
Air modules provide air utility and are attached to the Master and Tool plates. When the Tool Changer is coupled,
the Master module passes the air supply to the Tool module for use by the customer tooling. Signicant forces are
encountered when using these modules. Assistance from the robot may be required to overcome these forces when
coupling the Tool Changer.
NOTICE: The Master and Tool modules contain self-sealing valves. Do not use self-sealing valves for
vacuum utility.
Table 1.1—Air Modules
Module Customer Connections Ports/Valves
AH2-M
(8) G 3/8 (BSPP)
(8) self-sealing check
AH2-T
(4) self-sealing check,
(4) pass through ports
AH3-T (8) pass through ports
AH4-T (8) self-sealing check
The Master and Tool modules contain pass-through ports and self-sealing valves. Pass-through ports release the
air or vacuum when the Tool Changer is uncoupled. Before uncoupling the Tool Changer, turn off the air pressure
or vacuum supply for the pass-through ports. Unlike pass-through ports, self-sealing valves prevent the air circuits
from discharging, which eliminates the need to close those circuits upstream.

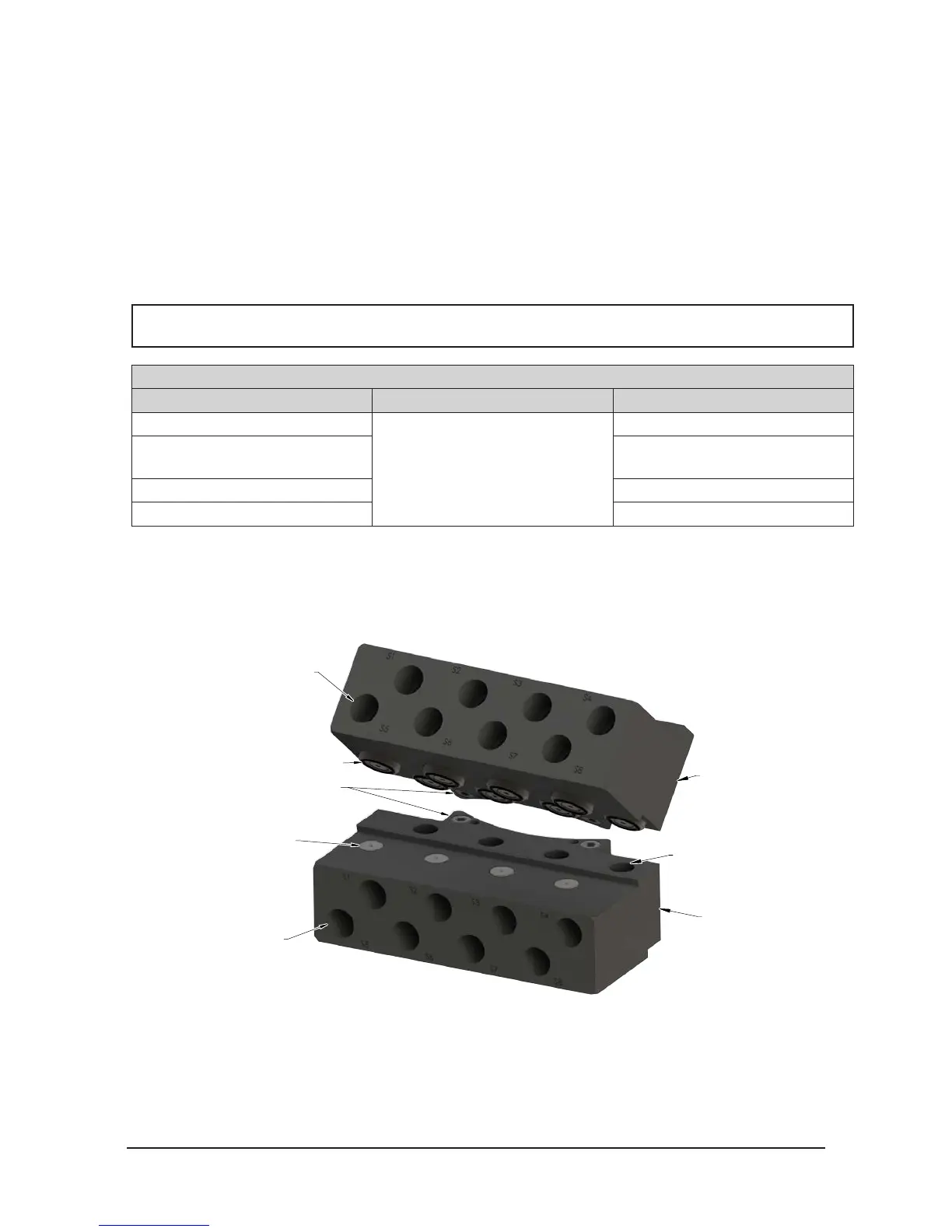

Figure 1.1—Air Modules
(8) Self-Sealing Check Valve
(8) G 3/8 (BSPP) Air Port
(8) G 3/8 (BSPP) Air Port
9121-AH2-M
9121-AH2-T (Shown)
Common Ledge
Mounting Feature
(4) Self-Sealing Check Valve
(4) Pass Through Port
Customer Connection
Customer Connection
