4.1 Pin Block Inspection and Cleaning
1. Dock the Tool side of the Tool Changer safely and uncouple the Tool Changer to allow clear access to
the Master and Tool plates.
2. Turn off and de-energize all energized circuits (e.g. electrical, air, water, etc.).
3. Inspect the Master and Tool pin blocks for any debris or darkened pins.

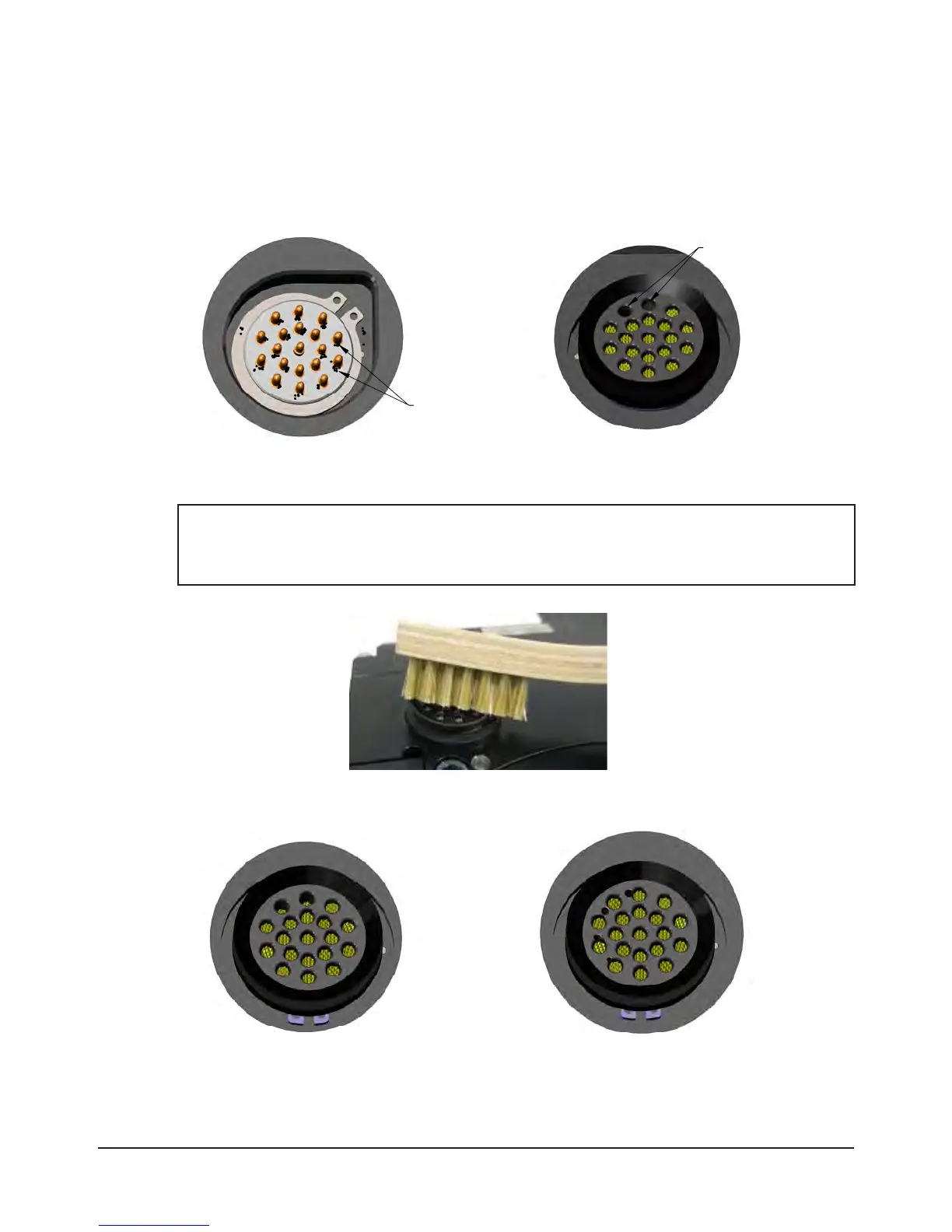

Figure 4.1—Inspect Master and Tool Pin Blocks
Tool Module Pin Block
Master Module Pin Block
Note: Pin blocks shown are for
illustration purposes only.
Weld Debris
Weld Debris
Blackened Pins
4. If debris or darkened pins exist, remove debris using a vacuum, and clean using a nylon brush (ATI Part
Number 3690-0000064-60).
NOTICE: Do not use an abrasive media, cleaners, or solvents to clean the contact pins. Using
abrasive media, cleaners, or solvents will cause erosion to the contact surface or pins to stick.
Clean contact surfaces with a vacuum and non-abrasive media such as a nylon brush (ATI Part
Number 3690-0000064-60)
Figure 4.2—Clean Pin Blocks with a Nylon Brush
5. Inspect the Master and Tool pin blocks for stuck pins or severe pin block damage.
Figure 4.3—Stuck Pin and Pin Block Damage
Stuck Pins
Severe Pin Block Damage
Note: Pin blocks shown are for
illustration purposes only.
6. If stuck pins or severe pin block damage exists, contact ATI for possible pin replacement procedures or
module replacement.
7. If repairs are complete, return circuits to normal operation.
