Manual, Robotic Tool Changer, QC-210
Document #9620-20-B-210 Series Base Tool Changer-26
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
B-46

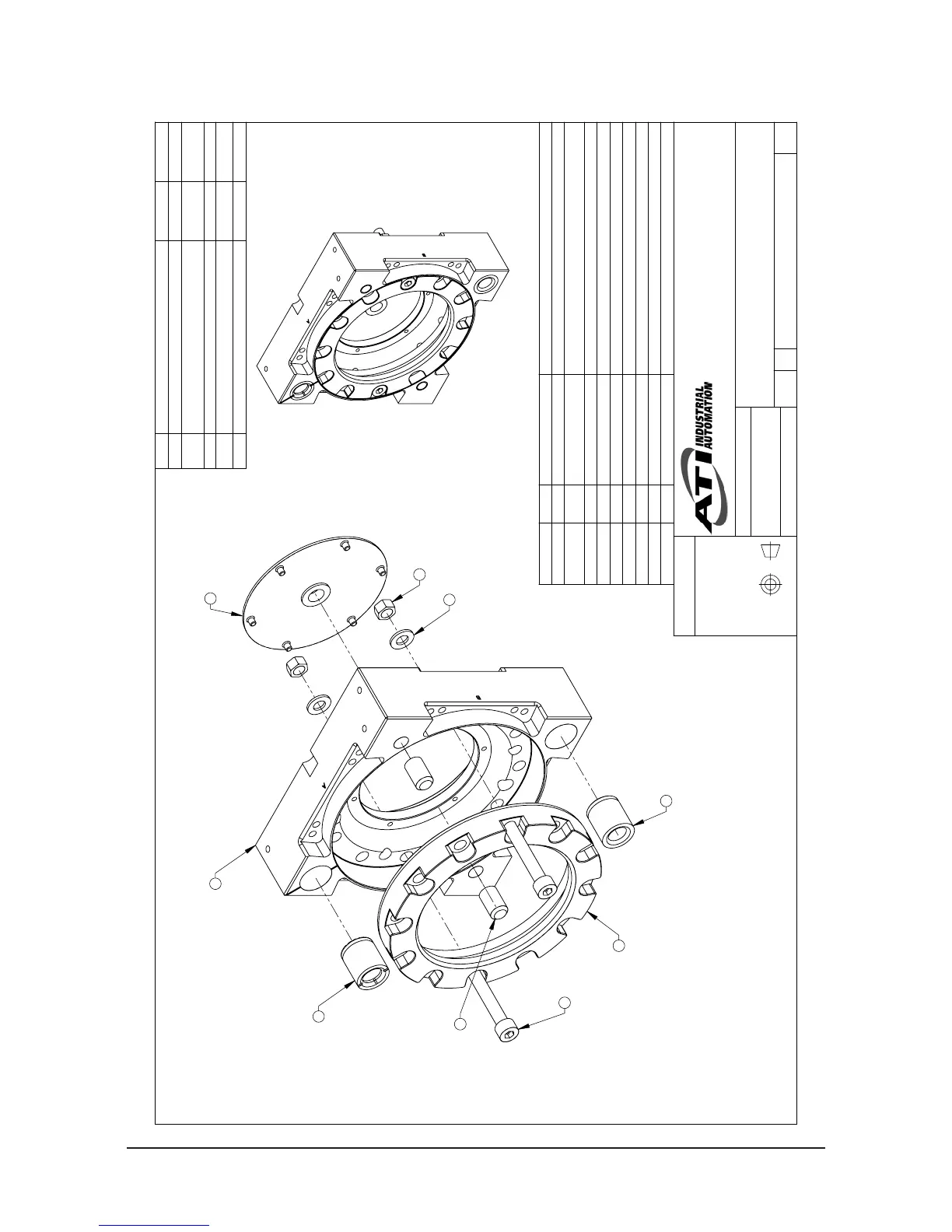

8.2 Bolt-Down Tool Plate
3rd ANGLE PROJECTION
1
4
5
6
7
8
2
3
9
Note 1
Pre / Note 2
-- / Note 3
-- / Note 3
-- / Note 3
Pre / 14 in-lbs
Isometric View
Scale 1:2
Assembly Notes:
When installing bushing into tool body, align orientation marks
1.
on both parts.
Install set screw flush with the tool body.
2.
M8 Fastener, M8 flat washer, and M8 nut are used for shipping
3.
only.
DO NOT APPLY LOCTITE!
ITEM NO.
QTY.
PART NUMBER
DESCRIPTION
1 2
3500-1068055-15
M8 x 55mm SHCS, Blue Dyed Magni-565
2 2
3500-1972020-22A
M12 x 20mm Lg Set Screw Flat Point SST, ND
Microspheres
3 2
3505-0868007-12
M8 Hex Nut Zinc Plated Steel, 7mm high
4 2
3510-5068001-12
M8 Flat Washer
5 1
3700-20-4026
QC-210 Tool Body
6
1
3700-20-4202
Elongated Drill Bushing 1/2" dia, 7/8 OD, 1" long
7 1
3700-20-4783
Bearing Race, QC-210 Bolt Down
8 1
3700-20-5274
Drill Bushing 1/2" dia, 7/8 OD, 1" long
9 1
9005-20-1335
Race Cover_QC 210 Tool Sub-Assembly
Rev.
Description
Initiator
Date
03
Eco 5578; Replaced 3710-20-3330 with 3700-20-5274.
CF
7/2/2007
04
Eco 7246; Removed Nylon Tip Set Screw 3500-1964008-32
and Changed 3500-1972020-22 to 22A (Pre Applied).
Removed Note 3.
CF
9/17/2009
05
Eco 8241; 3505-0868007-12 was 3505-0868004-12
LJH 1/7/2011
06
Eco 10082; Change race cover fastener to "Pre/14 in-lbs"
from "222/14 in-lbs".
MSD
9/6/2012
07
Eco 10275; Corrected Busing Mates in Assembly Model.
CF
10/19/2012
B
1:1.5
1 1
REVISION
NOTES: UNLESS OTHERWISE
SPECIFIED.
DO NOT SCALE DRAWING.
ALL DIMENSIONS ARE IN
MILLIMETERS.
DRAWN BY:
CHECKED BY:
R. Heavner, 2/15/06
B.Digeso, 3/2/06
TITLE
SCALE
SIZE
DRAWING NUMBER
PROJECT #
SHEET OF
9121-210CWT-0-0-0-0
060215-2
07
PROPERTY OF ATI INDUSTRIAL AUTOMATION, INC. NOT TO BE REPRODUCED IN ANY
MANNER EXCEPT ON ORDER OR WITH PRIOR WRITTEN AUTHORIZATION OF ATI.
1031 Goodworth Drive, Apex, NC 27539, USA
Tel: +1.919.772.0115 Email: info@ati-ia.com
Fax: +1.919.772.8259 www.ati-ia.com
ISO 9001 Registered Company
QC-210 Bolt Down Base Tool Assembly, No Options,
100mm Recess
