Manual, Robotic Tool Changer, QC-210
Document #9620-20-B-210 Series Base Tool Changer-26
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
B-40

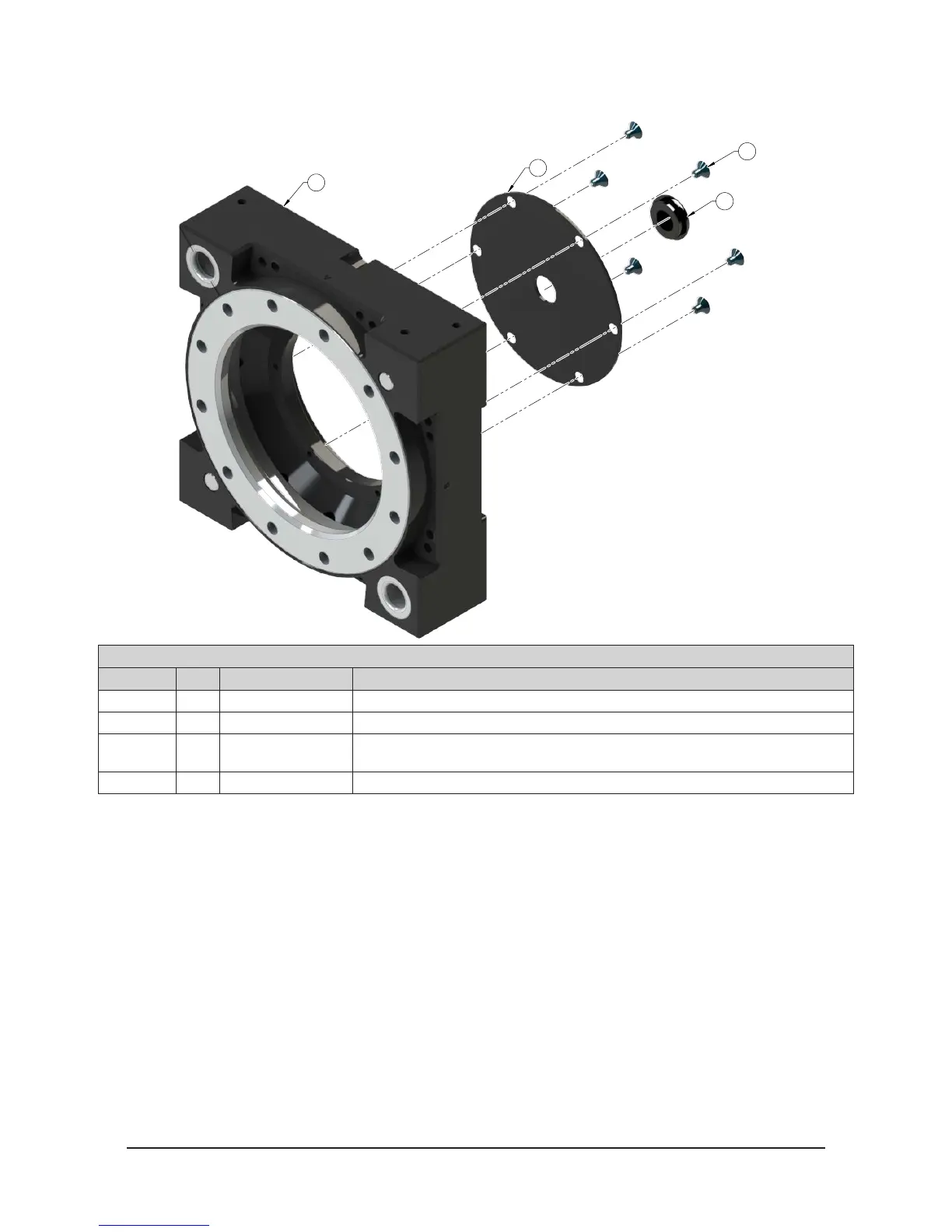

6.5 Standard Tool Plate
1
2
3
4
Table 5.2—Standard Tool Plate
Item No. Qty Part Number Description
1 1 9121-210CT-0-0-0-0
Tool with 100 mm Recess and no other options
2 1 9005-20-1335 Tool back cover plate for QC-210 (Includes Items 3 and 4)
3 6 3500-1262006-15A
M4x6 Flat Head Socket Cap Screw, Class 10.9, Blue dyed Magni-565, ND
Microspheres Epoxy, Yellow.
4 1 4010-0000020-01 Grommet C-30-SG-16A
