Manual, Air Module, AH2
Document #9620-20-D-AH2-09
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
D-14
8. Drawings
3rd ANGLE PROJECTION
52.2
45.6
Coupled
97.8
Approx
5
2
4
3
1
Magnalube
30 in-lb
Magnalube
3
6
1
5
2
4
Magnalube
Magnalube after installation
Magnalube bores
Note 4 / 10 in-lb
Magnalube
158.8
AH2 Master Module
(9121-AH2-M)
68
158.8
68
AH2 Tool Module (9121-AH2-T) Shown
AH3 Tool Module (9121-AH3-T)
AH4 Tool Module (9121-AH4-T)
Notes:
Materials of Construction:
Housings - Anodized aluminum.
1.
Valve Components - Stainless Steel, Nitrile & PVC
2.
Quantities shown in bill of materials are for AH2 master and AH4 tool.
3.
Replacement stem contains pre-applied thread locker. Use Loctite 7649 primer
4.
and Loctite 222 if reassembling with original stem.
Operations:
For best results keep air module mating surfaces free and clear of any debris.
5.
Checked ports can produce significant forces when under high supply pressures.
6.
These forces have to be overcome to achieve tool changer coupling.
Checked ports do not support vacuum conditions.
7.
AH2-M master module has (8) G 3/8 checked ports.
8.
AH2-T tool module has (4) checked and (4) pass thru G 3/8 ports. AH3-T has (8)
9.
pass thru G 3/8 ports. AH4-T has (8) checked G 3/8 ports.
AH2-T / AH3-T / AH4-T Serviceable Parts
Note: Service Kit 9120-F2-M-Kit consists of (1) each of items 1 thru 4.
Note: Service Kit 9120-F4-M-Kit consists of (1) each of items 1 thru 6.
AH2-M Serviceable Parts
Note: Items 1, 2, 3, 4 & 5 can be ordered in a kit. Part Number 9120-F5-T-Kit
Note: Service Kit 9120-F1-T-Kit consists of (1) each of items 1, 2, & 4.
Note: Service Kit 9120-F5-T-Kit consists of (1) each of items 1 thru 5.
Rev.
Description
Initiator
Date
08
ECO 14375; Added torque and Magnalube information.
Added Note 4.
SZJ
8/5/2016
ITEM NO.
QTY.
PART NUMBER
DESCRIPTION
1 8
3410-0001065-01
O-Ring 14MM X 2MM Buna
2 8
3410-0001068-01
Mini U-Cup Seal 18mm ID x 22mm Buna
3 8
3410-0001183-01
O-Ring 6MM X 2MM Buna D90
4 8
3700-20-1459
SW-150A Master Fluid / Air Spring SS
5 8
3700-20-2994
Master Check Valve Piston, FA44
6 8
3700-20-2996 VALVE STEM, HIGH STRENGTH
ITEM NO.
QTY.
PART NUMBER
DESCRIPTION
1 4
3410-0001067-01
O-ring, 10mm x 2mm, Buna N, Dur. 90
2 8
3410-0001284-01
O-ring, .669OD x .047 wall, 70D, Buna-N
3 4
3700-20-1457
SW-150A Tool Check Valve Piston
4 4
3700-20-1460
SPRING, F/A TOOL
5 8
9005-20-1515
Fluid/Air Long Plug with Dowel
B
1:2
1 1
REVISION
NOTES: UNLESS OTHERWISE
SPECIFIED.
DO NOT SCALE DRAWING.
ALL DIMENSIONS ARE IN
MILLIMETERS.
DRAWN BY:
CHECKED BY:
J.Snape 1/14/05
P.Sparrow 1/17/05
TITLE
SCALE
SIZE
DRAWING NUMBER
PROJECT #
SHEET OF
9630-20-AH2
040331-1
08
PROPERTY OF ATI INDUSTRIAL AUTOMATION, INC. NOT TO BE REPRODUCED IN ANY
MANNER EXCEPT ON ORDER OR WITH PRIOR WRITTEN AUTHORIZATION OF ATI.
1031 Goodworth Drive, Apex, NC 27539, USA
Tel: +1.919.772.0115 Email: info@ati-ia.com
Fax: +1.919.772.8259 www.ati-ia.com
ISO 9001 Registered Company

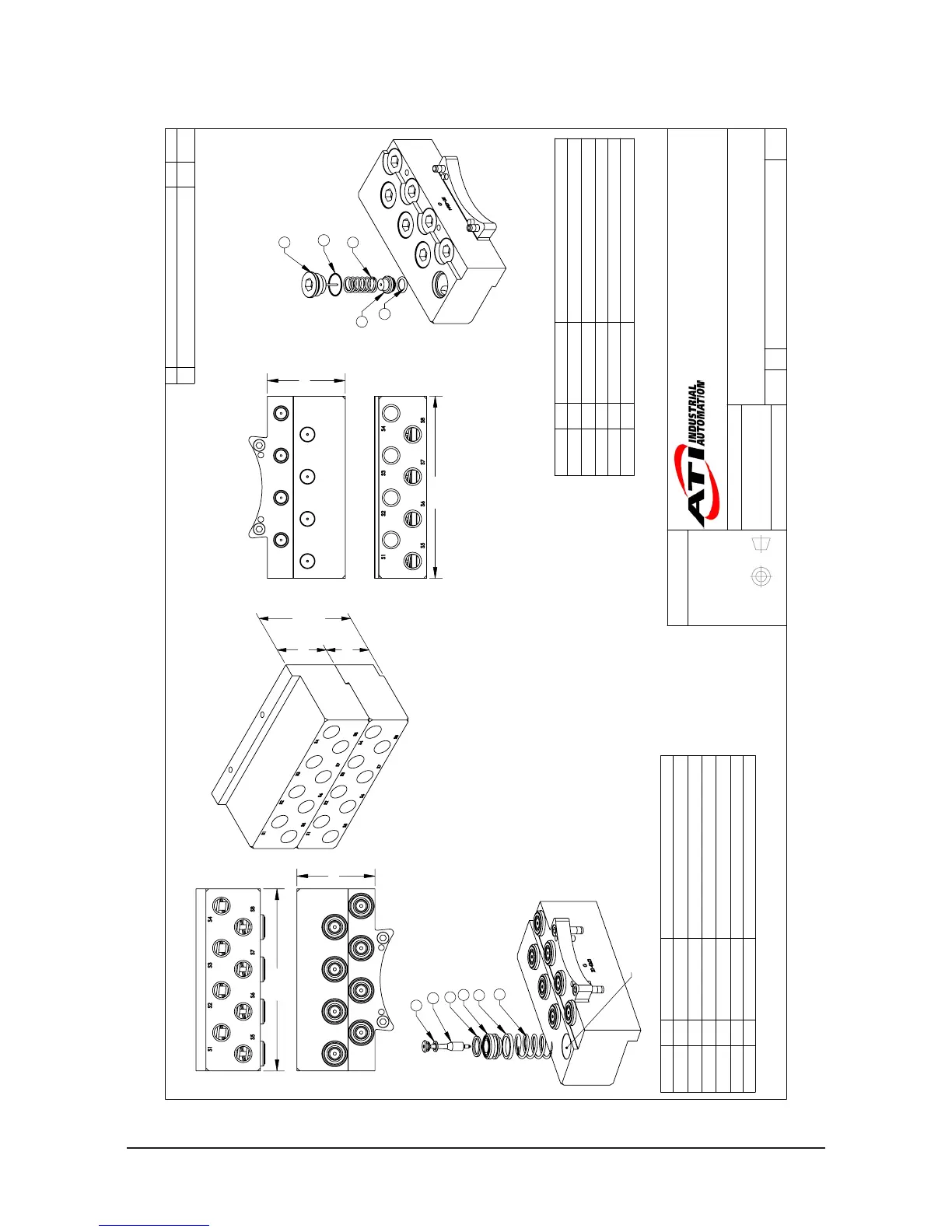

AH2-M, AH2-T / AH3-T / AH4-T Module Drawing
