Manual, Electrical Module, REP6
Document #9620-20-E-REP6-02
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
E-2
3rd ANGLE PROJECTION
"
DANGER!
" -
Electrical Shock Hazard
This module has a Voltage of 50V or greater, NO contact should be attempted
before removing power. This especially includes separation or insertion of the
mating connectors or any contact with the tool changer or its components."
72.8
Coupled
(Approx.)
9120-REP6-M
9120-REP6-T
44.9
60.2
A
Serviceable Part
ATI #4010-0000030-01
V-Ring
Intercontec
6-Pin M23 Male Connector
BEGA116MR14000200000
53.2
87.1
C
60.2
33.3
B
Intercontec
6-Pin M23 Female Connector
BDFA107FR54000150000
53.2
101
D
DETAIL A
Intercontec Male Connector
SCALE 2 : 1
Key
DETAIL B
Intercontec Female Connector
SCALE 2 : 1
Key
DETAIL C
ATI 10-Pin Block
SCALE 2 : 1
Set Screw
Dowel Pin
1
2
3
4
5
6
7
8
9
10
DETAIL D
ATI 10-Pin Block
SCALE 2 : 1
Dowel Pin
Set Screw
1
2
3
4
5
6
7
8
9
10
Notes:
See Sheet 2 for Wiring Diagram.
1.
Pass-throughs rated for 630VDC/10A.
2.
9120-REP6-M
9120-REP6-T
REV.
DESCRIPTION
INITIATOR
DATE
02
Project Release
DCS
2/20/18
B
1:1
1
2
REVISION
NOTES: UNLESS OTHERWISE
SPECIFIED.
DO NOT SCALE DRAWING.
ALL DIMENSIONS ARE IN
MILLIMETERS.
DRAWN BY:
CHECKED BY:
D. Simons, 12/21/17
W. Berrocal, 1/4/18
TITLE
SCALE
SIZE
DRAWING NUMBER
PROJECT #
SHEET OF
9630-20-REP6
171220-6
02
PROPERTY OF ATI INDUSTRIAL AUTOMATION, INC. NOT TO BE REPRODUCED IN ANY
MANNER EXCEPT ON ORDER OR WITH PRIOR WRITTEN AUTHORIZATION OF ATI.
1031 Goodworth Drive, Apex, NC 27539, USA
Tel: +1.919.772.0115 Email: info@ati-ia.com
Fax: +1.919.772.8259 www.ati-ia.com
ISO 9001 Registered Company
K. Davis, 1/3/18

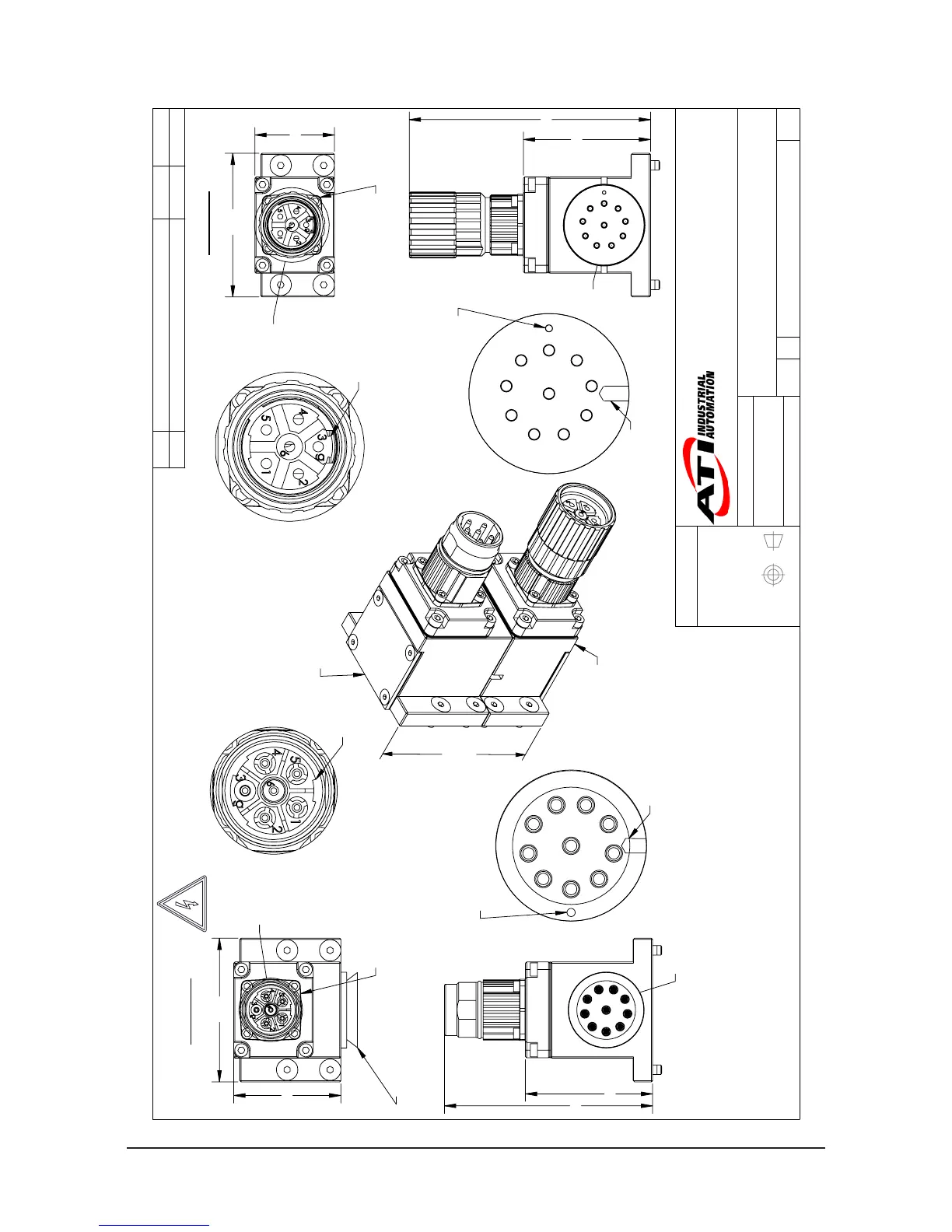

REP6 Master and Tool Customer Drawing
To Next Page
