Version 7.0 251 Mediant 3000

User's Manual 16. Services

2. Click Add; the following dialog box appears:

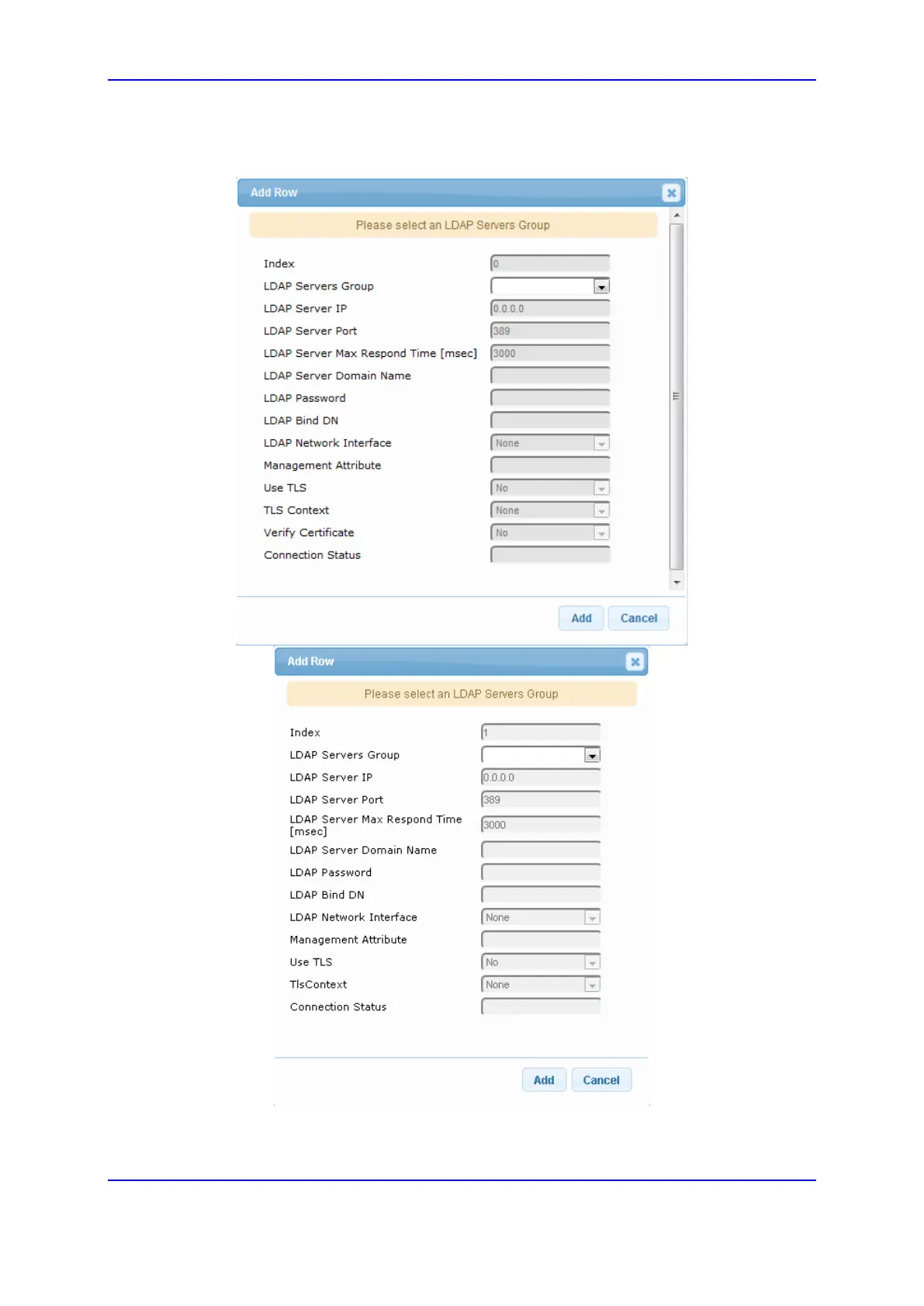

Figure 16-8: LDAP Configuration Table - Add Row Dialog Box

3. Configure an LDAP server according to the parameters described in the table below.

4. Click Add.
