5. In the Quality of Experience Profile page, select the QoE Profile index row for which
you want to configure QoE thresholds, and then click the Quality of Experience
Color Rules link located below the table; the Quality of Experience Color Rules page
appears.
6. Click Add; the following dialog box appears:

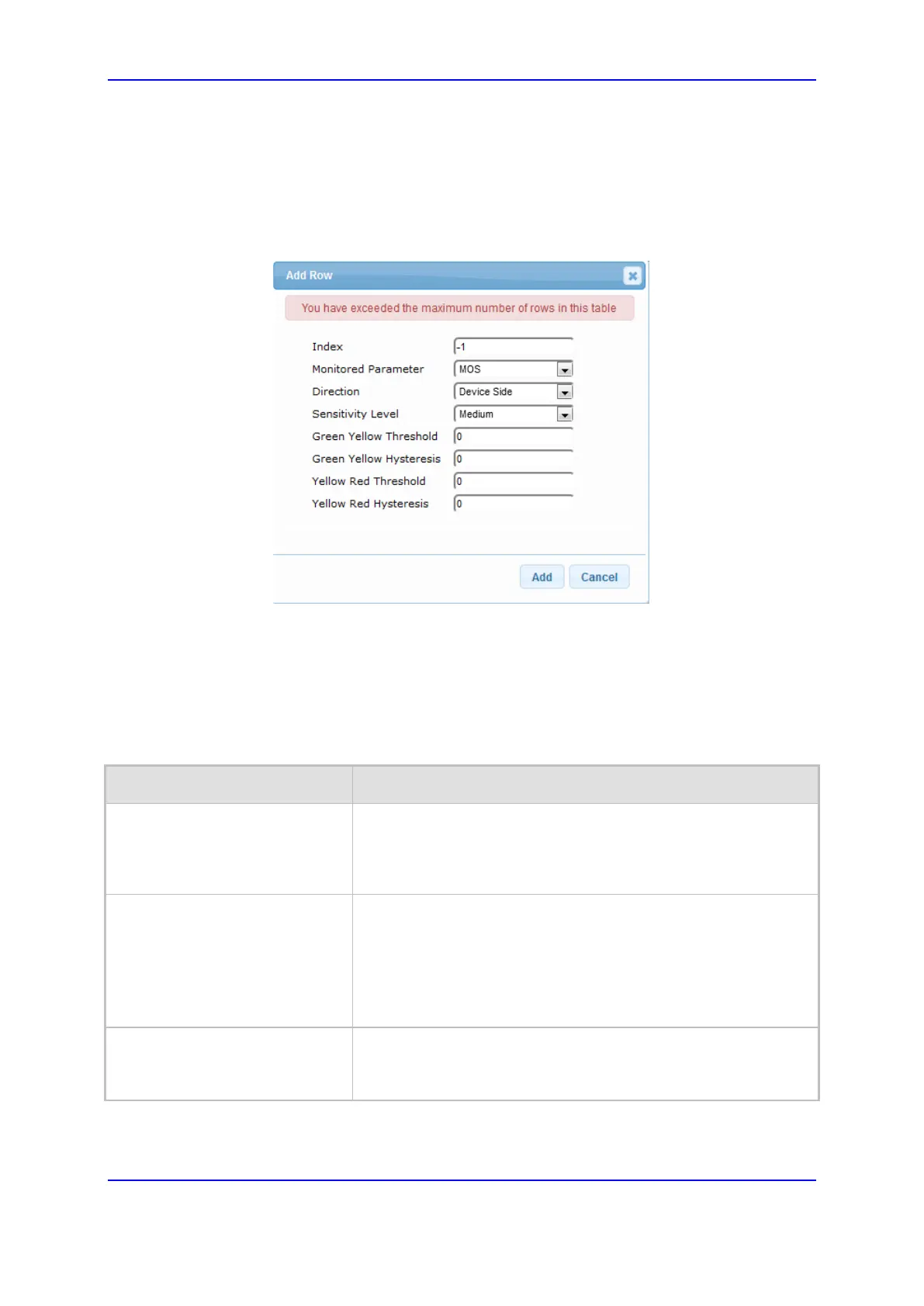

Figure 17-3: Quality of Experience Table - Add Row Dialog Box
The figure above shows a configuration example where if the MOS value changes by
0.1 (hysteresis) to 3.3 or 3.5, the Green-Yellow threshold is crossed. The device
considers a change to 3.3 as a Yellow state (i.e., medium quality) and a change to 3.5
as a Green state.
7. Configure a QoE Color rule according to the parameters described in the table below.
8. Click Add, and then save ("burn") your settings to flash memory.
Table 17-2: Quality of Experience Color Rules Table Parameter Descriptions
Parameter Description
Index
[QOEColorRules_ColorRuleIndex
]
Defines an index number for the new table row.
Note: Each row must be configured with a unique index.
Monitored Parameter
[QOEColorRules_monitoredPara
m]
Defines the parameter to monitor and report.
 [0] MOS (default)
 [1] Delay
 [2] Packet Loss
 [3] Jitter

RERL [Echo]
Direction
[QOEColorRules_direction]
Defines the monitoring direction.
 [0] Device Side (default)
 [1] Remote Side
