AudioCodes Mediant 3000 User Manual

Version 7.0 357 Mediant 3000
User's Manual 18. Control Network
2. Click Add; the following dialog box appears:

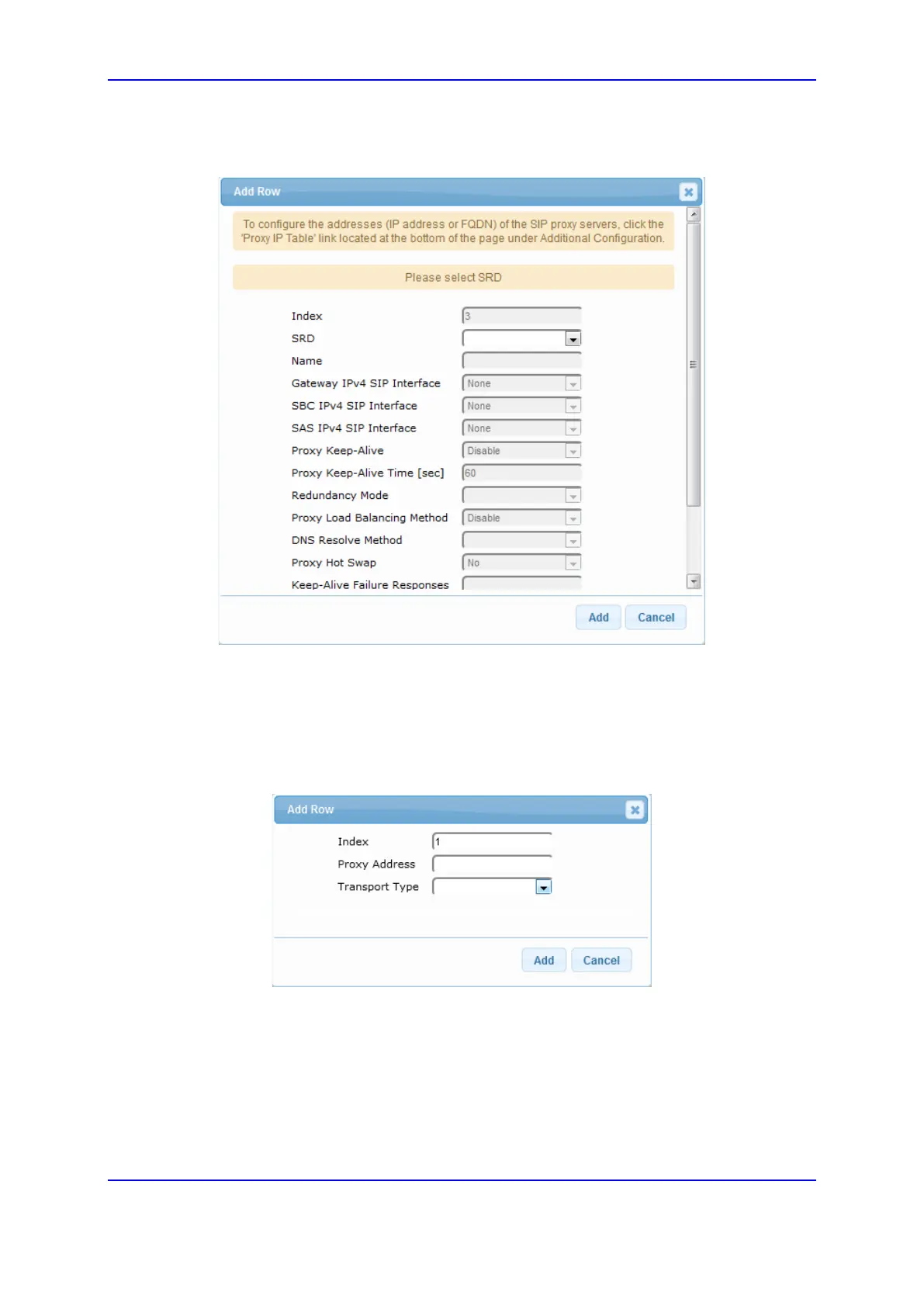

Figure 18-11: Proxy Sets Table - Add Row Dialog Box
3. Configure a Proxy Set according to the parameters described in the table below.
4. Click Add.
5. Select the index row of the Proxy Set that you added, and then click the Proxy
Address Table link located below the table; the Proxy Address table opens.
6. Click Add; the following dialog box appears:
Figure 18-12: Proxy Address Table - Add Row Dialog Box
7. Configure the address of the Proxy Set according to the parameters described in the
table below.
8. Click Add.
