Avery Dennison SNAP 500 - Unwind Assembly - Gen

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 116
Classification: Avery Dennison - Public
17
14
16
15
6
22
23
20
19
21
9
1
2
3
13
7
8
4
5
3
12
11
10
6
2
18
24

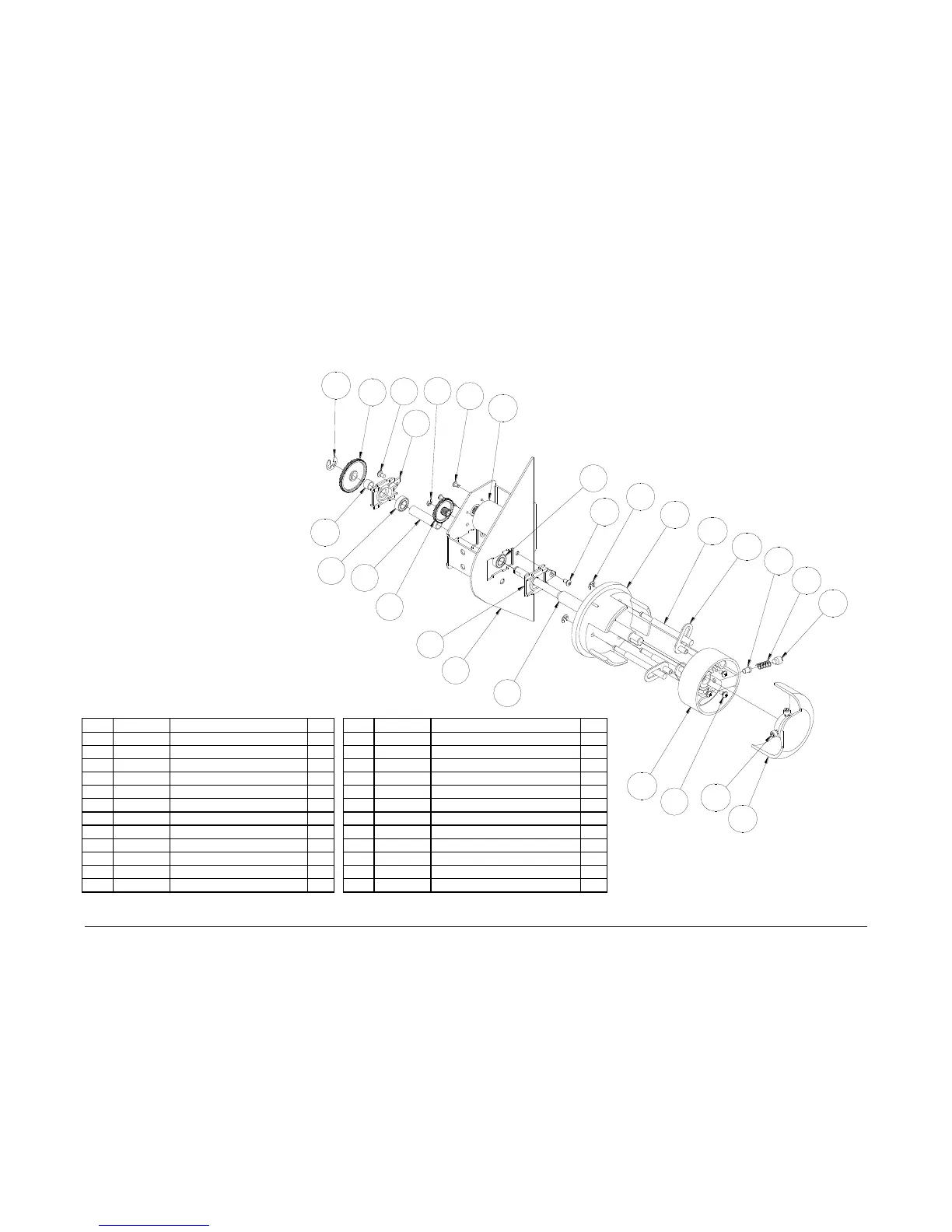

13.1 Unwind Assembly – Gen 1
Item
Part #
Description
Qty
Item
Part #
Description
Qty
1
05581201
Frame, Upright (ref only)
1
13
126468
Motor, Ribbon
1
2
118052
Holder, Bearing
2
14
05989971
5/16 - 18 x 3/8 Set screw
1
3
117903
Bearing, Platen
2
15
05583009
Drag plug, Unwind
1
4
117955
Gear, Ribbon, 54T - 15T
1
16
05991443
Spring, Compression
1
5
05991367
Snap ring, 9/64 e-ring
1
17
05583006
Knob, Adjust, Unwind
1
6
05991372
6-32 x 1/4 Pan head screw
4
18
05990019
6-32 x 1/4 Button head screw
1
7
05991368
2.5x 5mm Pan head screw
3
19
05583003
Hub, Inner, Unwind
1
8
05586005
Spacer, Ink arbor, Inner
1
20
05583004
Shaft, Core locator
3
9
05583007
Shaft, Unwind
1
21
05990325
Snap ring, 3/16 e-ring
3
10
05586004
Spacer, Ink arbor, Outer
1
22
05583002
Hub, Outer, Unwind
1
11
117954
Gear, Ribbon, 75T
1
23
05583005
Bracket, Core locator
3
12
05990327
Snap ring, 5/16 e-ring
1
24
05990052
8-32 x 1/2 Cap screw
2
