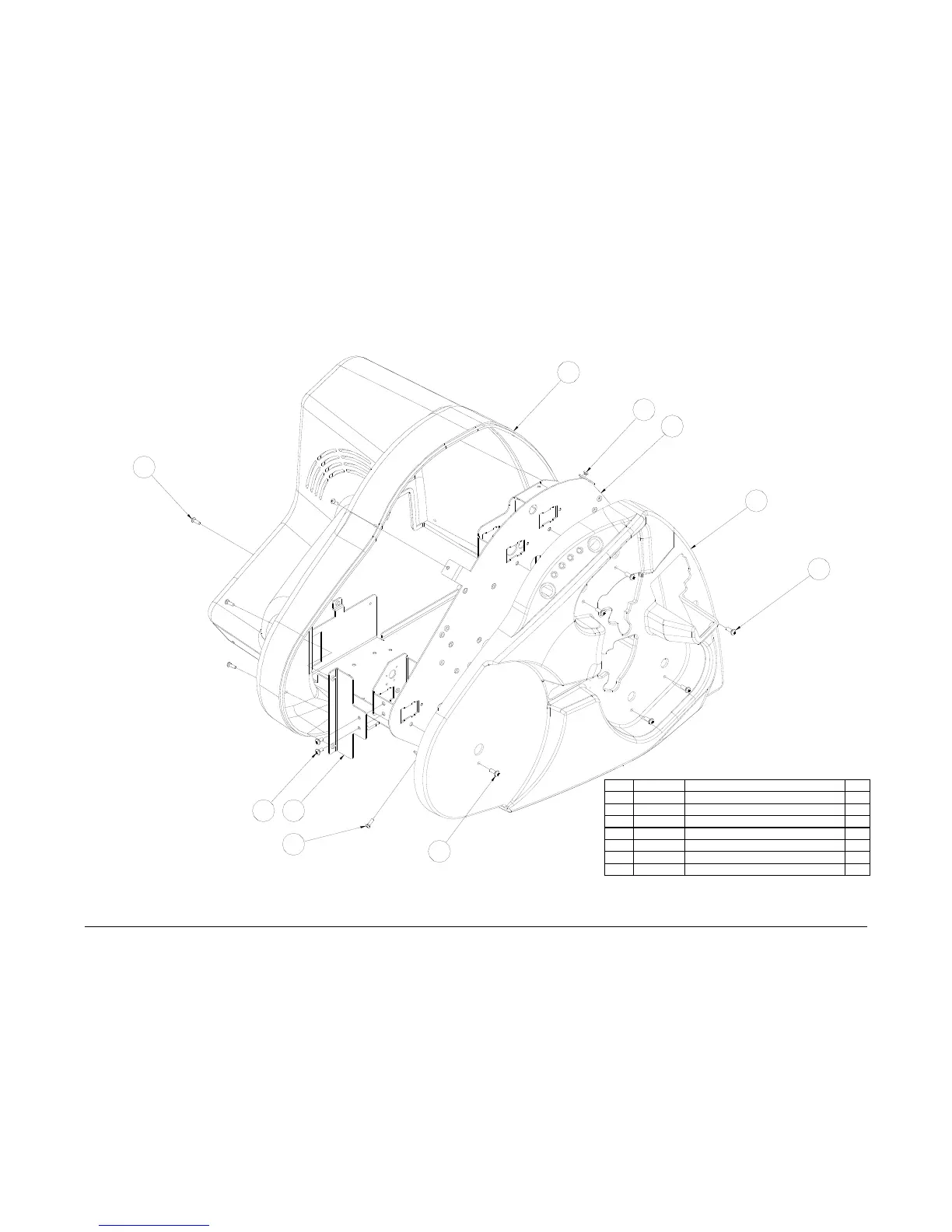

13.19 Covers Assembly – Gen 1
Item
Part #
Description
Qty
1
991376
10-32 x 1/2 Phillips pan head screw
6
2
991379
10-32 x 3/8 Phillips pan head screw
2
3
05631205
Cover, Rear
1
4
05581201
Frame, Upright
1
5
05581207
Bracket, Support, Rear cover
1
6
990091
8-32 x 1/2 Button head screw
10
7
05581206
Cover, Front
1
