Avery Dennison SNAP 500 - Fan Assembly - Gen 1

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 136
Classification: Avery Dennison - Public

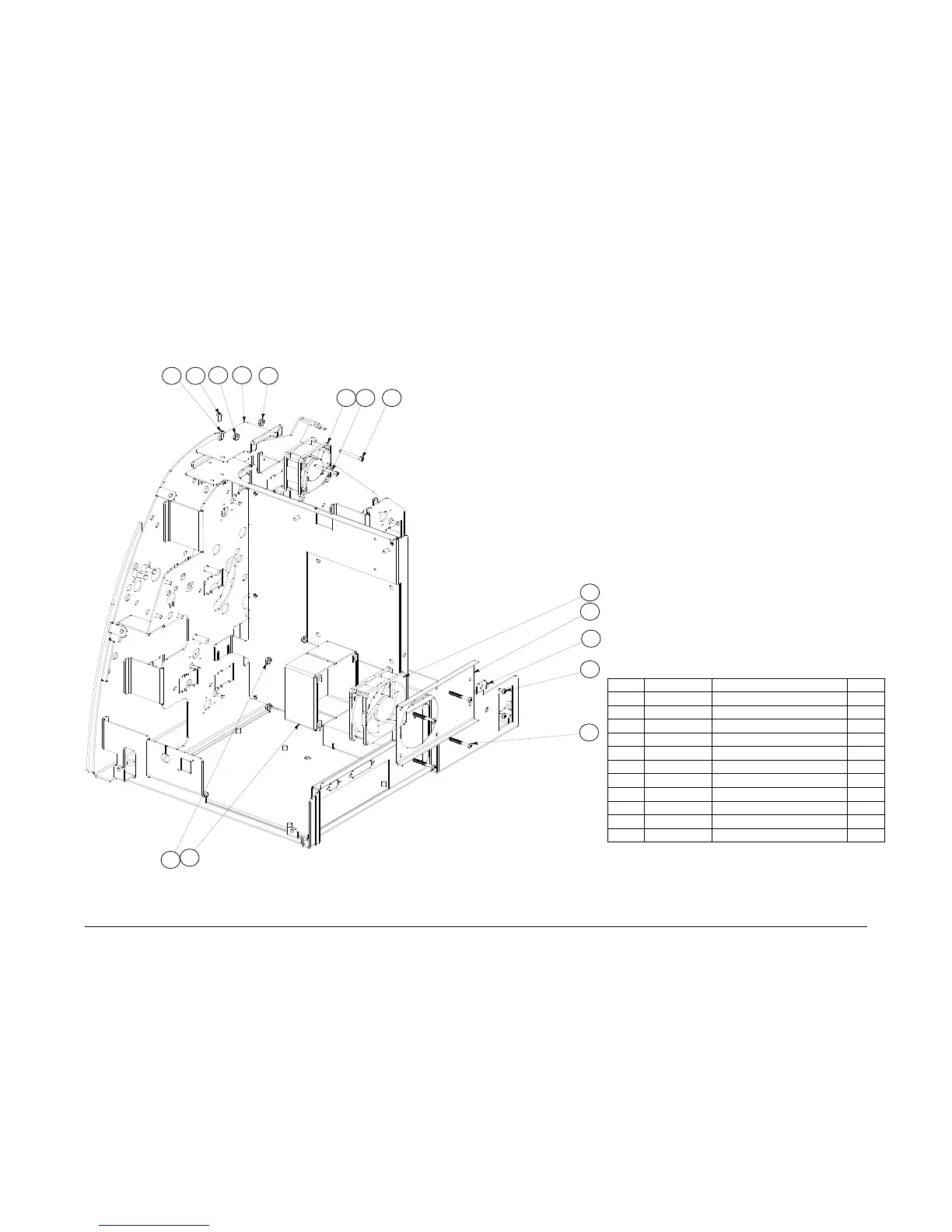

13.21 Fan Assembly – Gen 1
ITEM
PART NO.
DESCRIPTION
QTY
1
05581001
BRACKET, TOP FAN
1
2
05581104-1
FAN, HARNESSED 12V
1
3
05589012
BRACKET, FAN MOUNT
1
4
05589013
BRACKET, FAN CHUTE
2
5
05589015
HARNESS, FAN 80MM 12V
1
6
989965
LOCK WASHER, #6 SAE
2
7
990020
6-32 X 3/8 BHCS
2
8
990038
6-32 HEX NUT
6
9
991086
6-32 X 1 1/4 SHCS
2
10
991285
6-32 X 1 250 BHCS
4
11
991372
6-32 X 1/4 PAN PHILLIPS
2
5
3
6
11
10
4
8
7
7
8
1
8
2
9
9
