Avery Dennison SNAP 500 - Nip Roller Assembly - Gen 2

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 132
Classification: Avery Dennison - Public
4
10
1
5
9
8
7
3
2
6
6

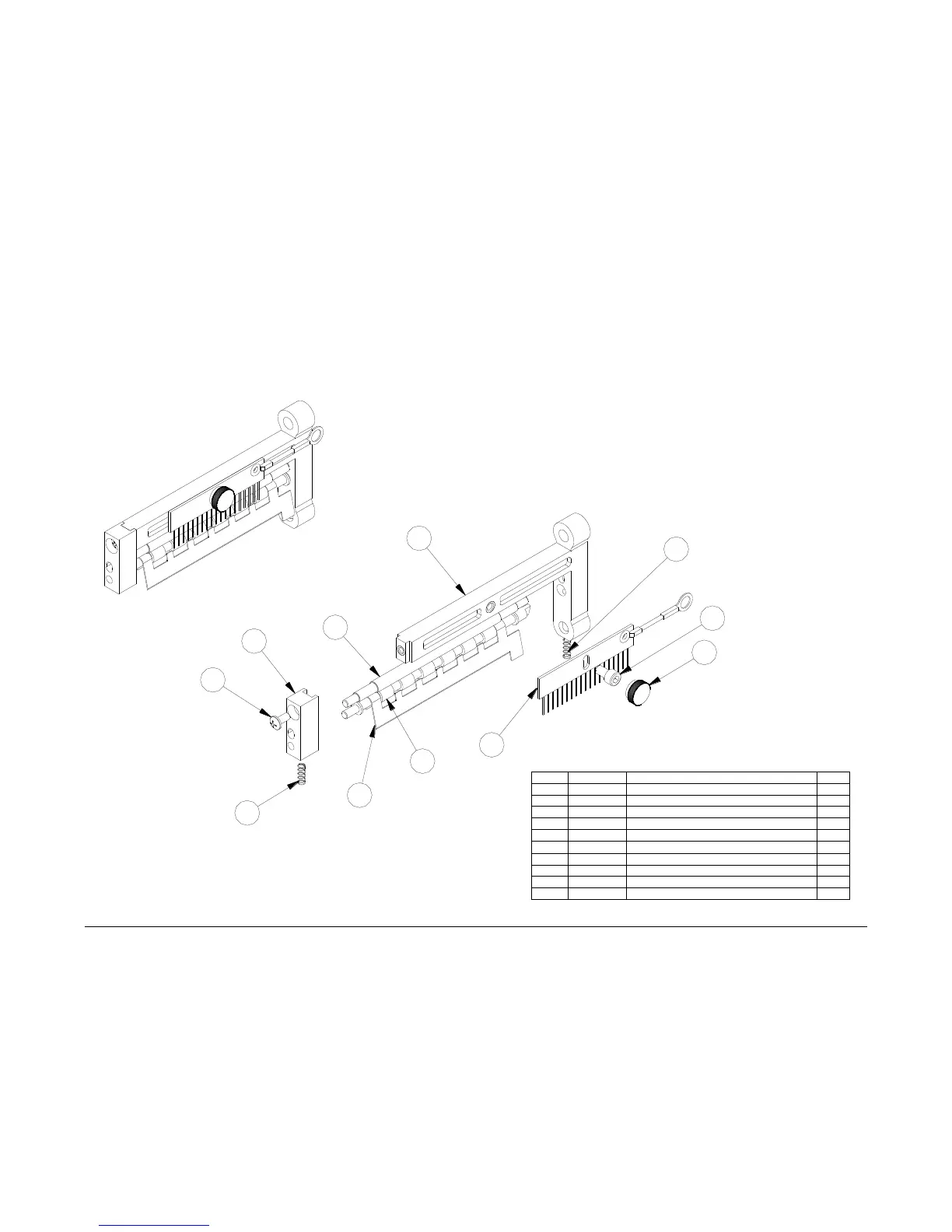

13.17 Nip Roller Assembly – Gen 2
ITEM
PART NO.
DESCRIPTION
QTY
1
05587086
SHAFT, FRONT UPPER ROLLER
1
2
05588076
BRACKET, TICKET STRIPPER
1
3
05634023
BRACKET, NIP INNER ASY
1
4
05634024
BRACKET, NIP OUTTER ASY
1
5
05634025
ROLLER, NIP MOLDED
1
6
05634026
SPRING, NIP
2
7
05634033
ELECTRICAL, STATIC BRUSH
1
8
990015
6-32 X 1/4 SHCS
1
9
990314
KNOB, THUMB SCREW, #6
1
10
991422
4 SCREW, 4-40 X 1/4 PAN HD PHILLIPS
1
