Avery Dennison SNAP 500 - Guide Assembly - Gen 1 with Hole Sensing

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 120
Classification: Avery Dennison - Public

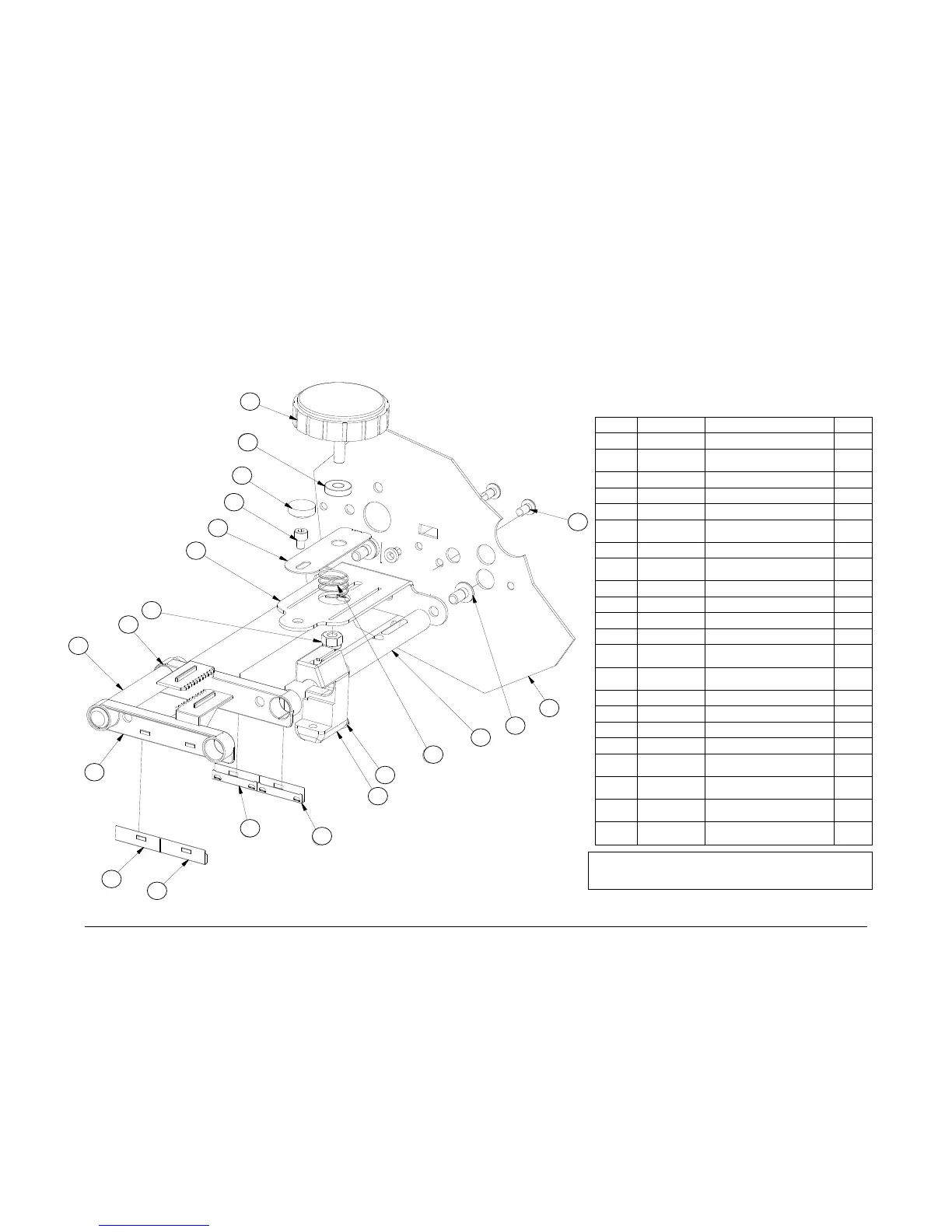

13.5 Guide Assembly – Gen 1 with Hole Sensing
ITEM
PART NO.
DESCRIPTION
QTY
1
05584009
SHAFT, WEB GUIDE
1
2
05594014
SHAFT, WEB GUIDE
SENSOR
1
3
05584035
SPACER, WEB GUIDE
1
4
05584006
BRACKET, WEB GUIDE
2
* 5
118826
GUIDE, WEAR
4
6
05584025
GEAR, WEB GUIDE
ADJUST
1
7
05990148
1/4-20 ES NUT
1
8
05594001
BLOCK, SENSOR
MOUNT
1
9
05584058
BRACKET, WEB GUIDE
1
10
05584059
PLATE, WEB GUIDE
1
11
05990079
10-32 X 1/4" SH CAP SCR
1
12
05990313
THUMB KNOB, #10
1
13
05991374
1/4-20 X 1/2 PAN HD
MACH SCR
2
14
05991379
10-32 X 3/8 PH PAN HD
SCR
2
15
05991366
KNOB, CLAMPING
1
16
05591201K
FRAME, SNAP 500
1
17
05991447
SPRING, COMPRESSION
1
18
05591121
LED, HARNESSED
1
19
05591128
SENSOR, REG OPTL
SWITCH
1
20
05591129
SENSOR, IR LED CEN
HARN
1
21
05591130
SWITCH, SENS HOLE
HARN
1
22
05581222
COVER, HOLE SENSR
SWITCH
1
5
5
5
5
4
1
4
8
6
16
14
13
2
9
10
11
12
3
15
7
17
ITEMS 18-22 NOT SHOWN
* RECOMMENDED SPARE PARTS
16
14
15
3
12
11
10
9
7
4
1
4
5
5
5
5
8
9
17
2
13
