Avery Dennison SNAP 500 - Knife Assembly - Gen 2

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 131
Classification: Avery Dennison - Public

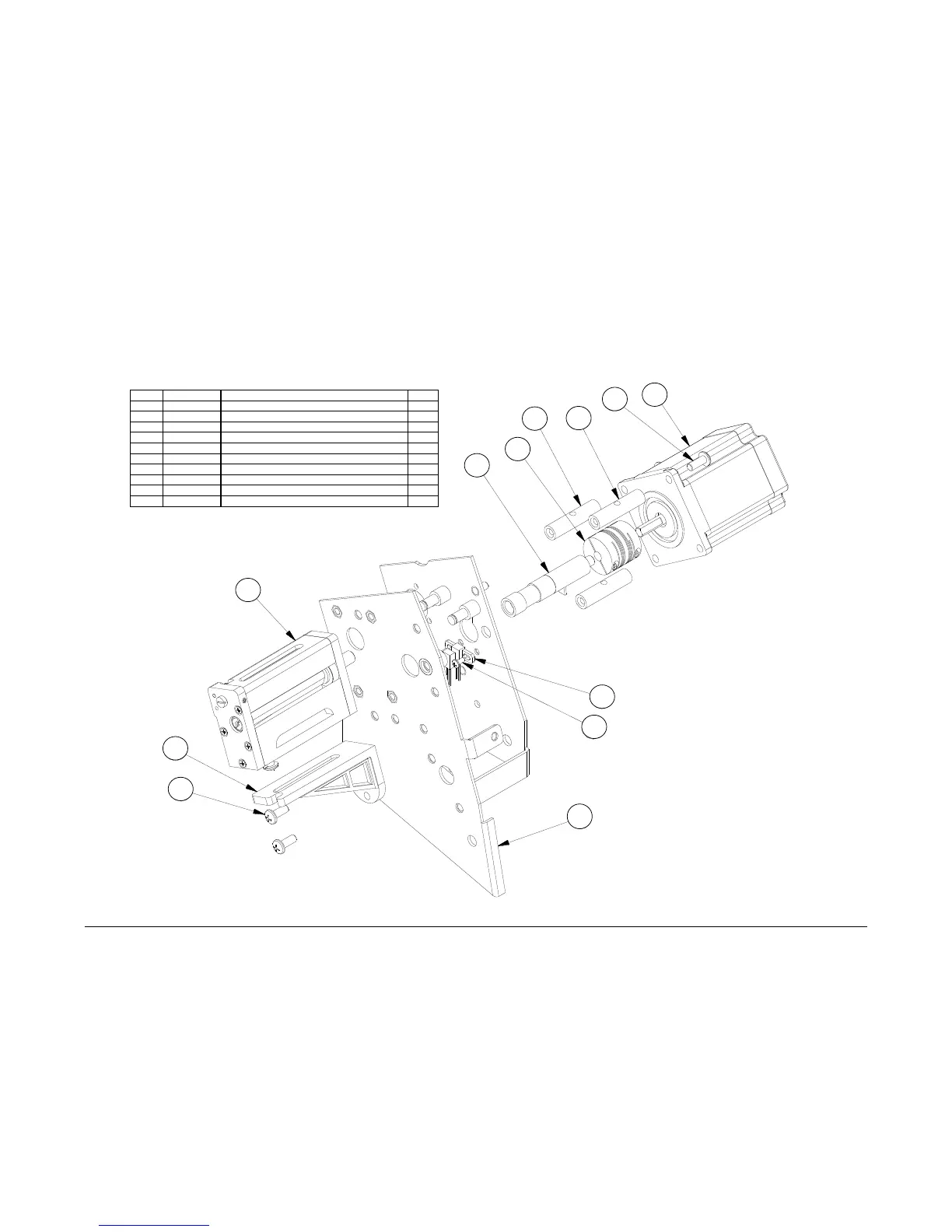

13.16 Knife Assembly – Gen 2
ITEM
PART NO.
DESCRIPTION
QTY
1
05331201
KIT, FRAME ASSEMBLY, SNAP 500 2/1
1
2
05587017
STANDOFF, KNIFE MOTOR
3
3
05637001
BRACKET, KNIFE
1
4
991376
10 SCREW, 10-32 X 1/2 PAN PHILLIPS
5
5
05581130
SENOSR, OPTICAL SLOTTED, HARNESSED
1
6
989983
4-40 X 1/4 PHILLIPS PAN HEAD SCREW
2
7
05245026
STEPPER MOTOR, HARNESSED
1
8
991642
DRIVE, BEAM COUPLING
1
9
05637002
ASSY, KNIFE DRIVE SHAFT
1
10
05587090-2
ASSEMBLY, KNIFE
1
1
10
9
8
7
6
5
4
3
2
2
4
