Avery Dennison SNAP 500 - Guide Assembly - Gen 1 and

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 119
Classification: Avery Dennison - Public

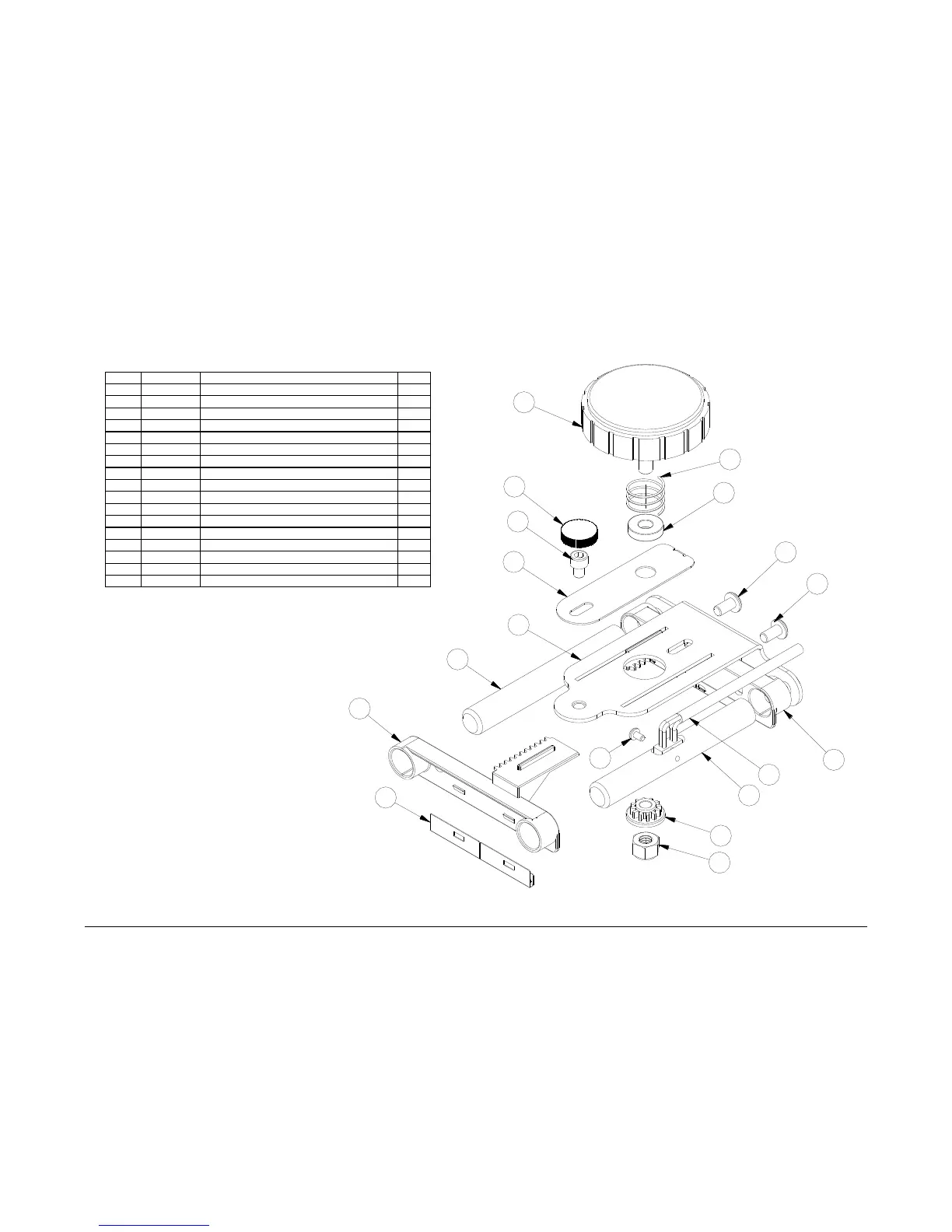

13.4 Guide Assembly – Gen 1 and 2
* Recommended spare parts
ITEM
PART NO.
DESCRIPTION
QTY
1
05584058
BRACKET, WEB GUIDE
1
2
05584059
PLATE, WEB GUIDE
1
3
05584009
SHAFT, WEB GUIDE
1
4
05584024
SHAFT, WEB GUIDE (SENSOR)
1
5
05584006
BRACKET, WEB GUIDE
2
6*
118826
GUIDE, WEAR
4
7
05991374
1/4 SCREW, 1/4-20 X 1/2 PAN PHILLIPS
2
8
05584035
SPACER, WEB GUIDE
1
9
05991447
SPRING, COMPRESSION
1
10
05990079
10-32 X 1/4 CAP SCREW
1
11
05990313
THUMB KNOB, #10
1
12
05584025
GEAR, WEB GUIDE ADJUST
1
13
05990148
1/4-20 E-S NUT
1
14
05991366
KNOB, CLAMPING
1
15
05581128
SENSOR, REF HARN
1
16
05989975
4-40 X 3/16 PAN HD SCREW
1
17
05991379
10-32 X 3/8 PHILLIPS PAN HEAD SCREW
2
3
5
6
13
12
16
4
15
5
17
1
2
10
11
14
17
8
9
