Avery Dennison SNAP 500 - Unwind Assembly - Gen

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 118
Classification: Avery Dennison - Public

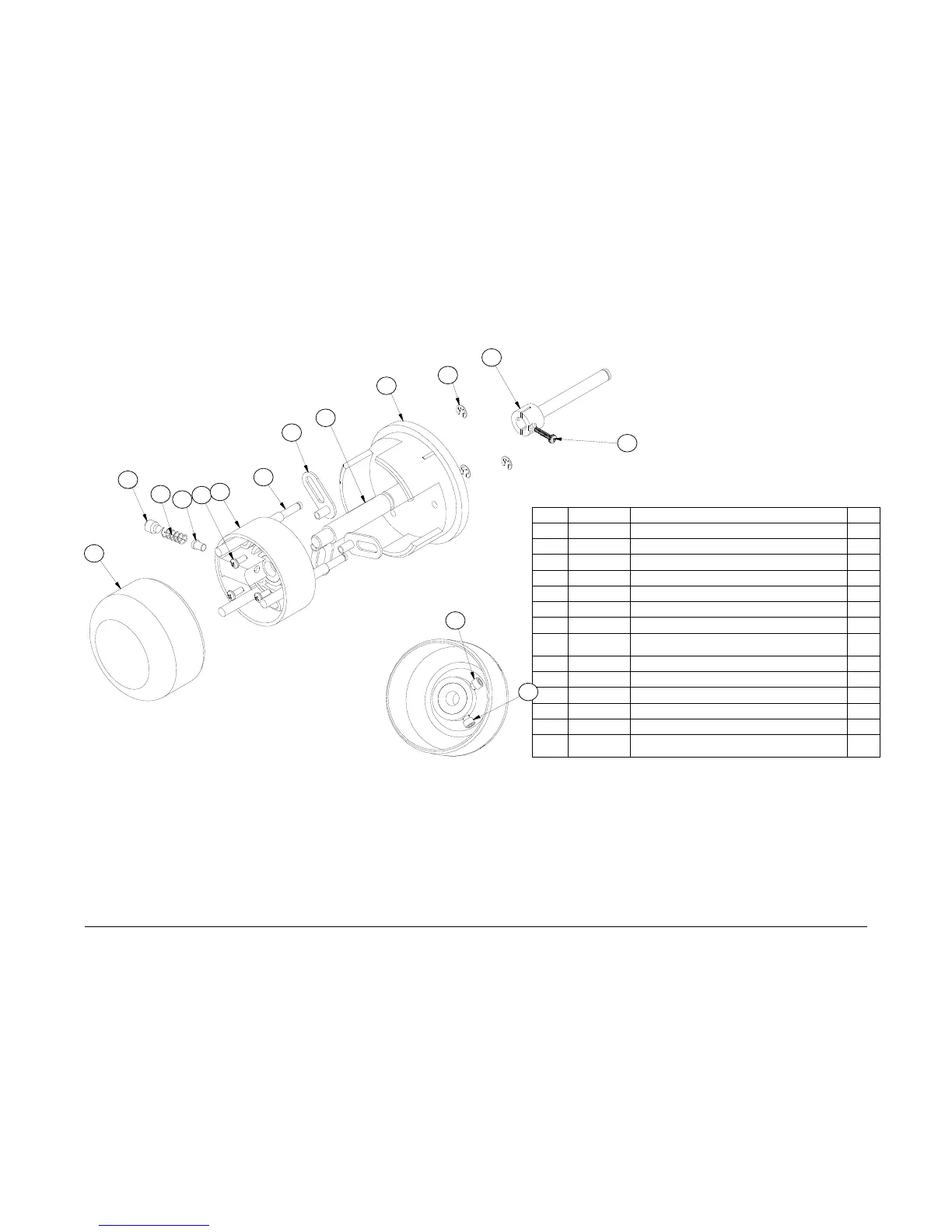

13.3 Unwind Assembly – Gen 2
Quick Attach Shaft Design – 2 Piece Shaft (New)
ITEM
PART NO.
DESCRIPTION
QTY
1
05583004
SHAFT, CORE LOCATOR
3
2
05583005
BRACKET, CORE LOCATOR
3
3
05583006
KNOB, UNWIND
1
4
05583009
DRAG, PLUG
1
5
05593002
HUB, OUTER, UNWIND, 600
1
6
05593003
HUB, INNER, UNWIND, 600
1
7
05634051
SHAFT, QUICK ATTACH UNWIND
1
8
05634052
SHAFT, QUICK ATTACH UNWIND
THREADED
1
9
05989971
5/16-18 X 3/8 SET SCREW W/ HALF DOG TIP
1
10
05990052
8-32 X 1/2 CAP SCREW
2
11
05990325
SNAP RING, 3/16 "E" RING
3
12
05991436
6-32 X 375 PHILLIPS PAN HEAD SCREW
3
13
05991443
SPRING, COMPRESSION
1
14
05996311
4 SCREW, 4-40 X 5/8 PPHS W/ EXT TOOTH
LOCK WASHER
1
6
2
1
5
4
13
9
3
12
10
10
7
11
14
8
10
10
3
9
13
4
12
5
1
2
8
6
11
7
14
