Avery Dennison SNAP 500 - Print Head Assembly - Gen

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 121
Classification: Avery Dennison - Public
15
7
11
13
8
2
14
5
9
6
12
4
10
17
16
3
4
1

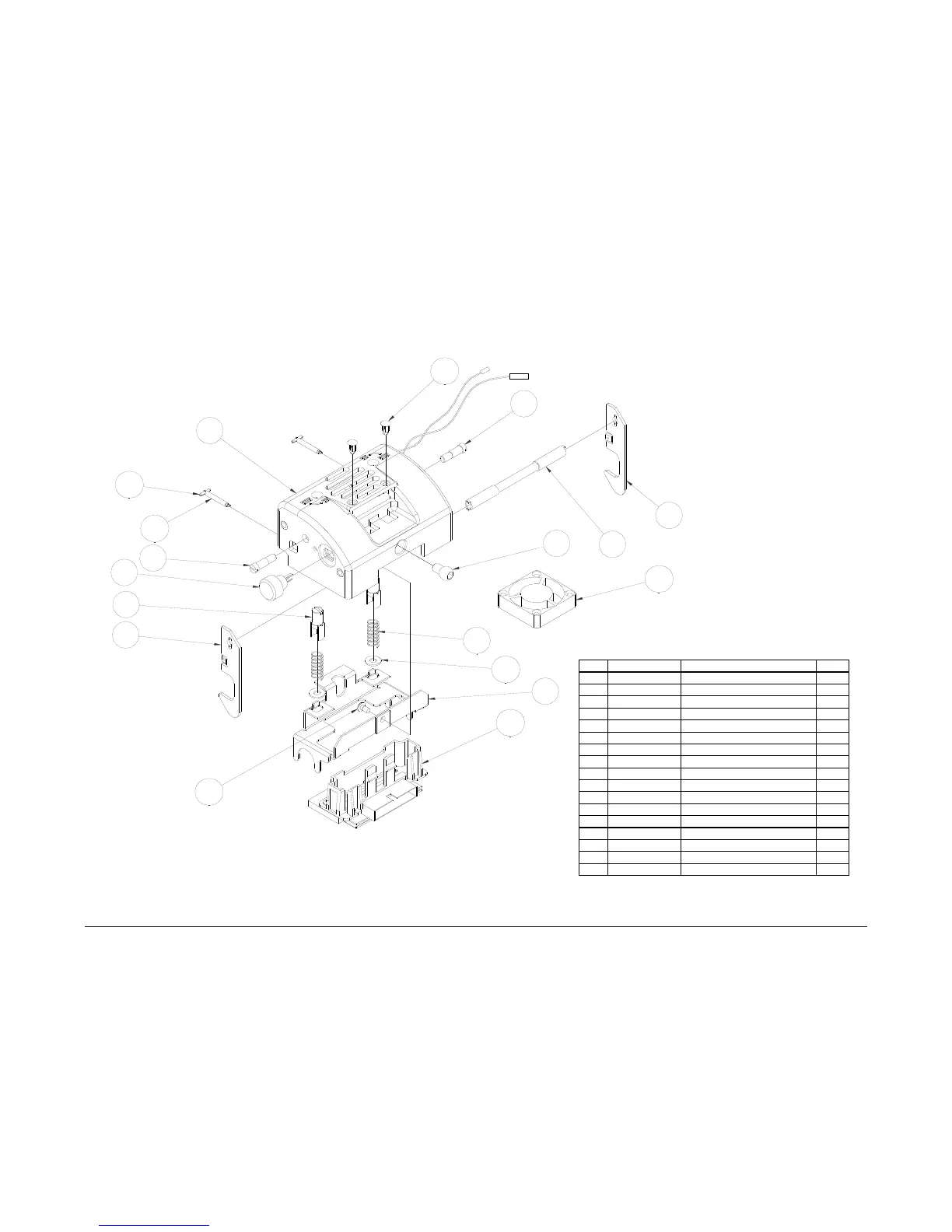

13.6 Print Head Assembly – Gen 1
Item
Part #
Description
Qty
1
05585008
Latch, Head - Right
1
2
117951
Button, Pressure
2
3
05585006
Shaft, Head lock
1
4
05585005
Screw, Special head lock
2
5
05585007
Latch, Head - Left
1
6
05585022
Mount, Print head
1
7
117950
Pin, Print head pivot
1
8
05585023
Bracket, Print head mount
1
9
05581111
Pot, Contrast control
1
10
990436
Roll pin, 1/16 x 3/8
2
11
991382
Spring, Compression
2
12
991383
Spring, Extension
2
13
990469
Washer, Nylon, .031 Thick
2
14
PB00700220
Screw, Pan head, Phillips
1
15
05581190
Assembly, Print head, 500
1
16
05589029
Harness, Fan, Print Head
1
17
991492
Nylon rivet
2
