Avery Dennison SNAP 500 - Ink Unwind; Rewind Arbor Assembly - Gen 2

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 125
Classification: Avery Dennison - Public
2
6
5
3
4
1
7
7
8
9

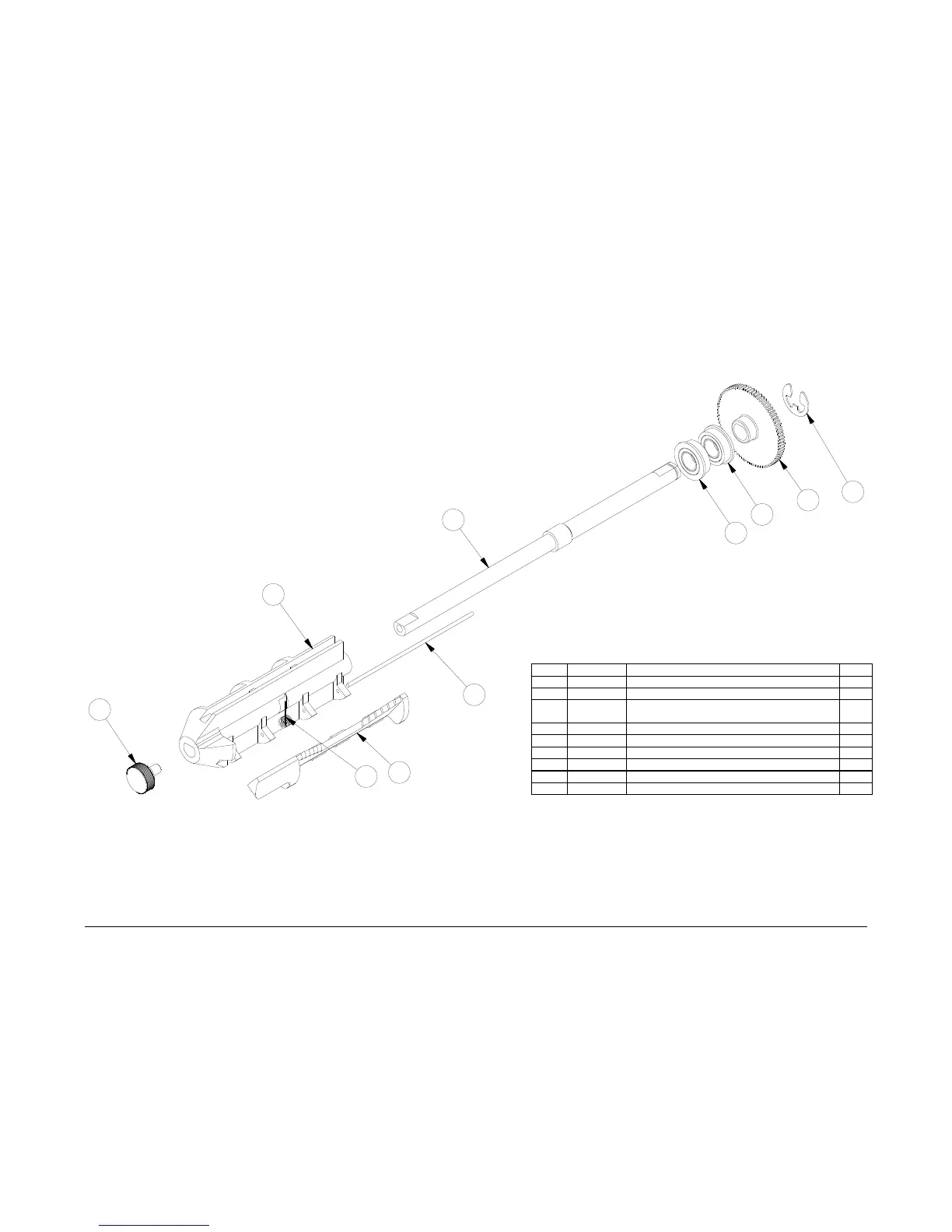

13.10 Ink Unwind / Rewind Arbor Assembly – Gen 2
*Items 2, 3, 4, & 5 may be ordered as a complete arbor assembly
586094K – Kit, Single Arbor Assembly, Inch
586095K – Kit, Single Arbor Assembly, Metric
ITEM
PART NO.
DESCRIPTION
QTY
1
05596001
SHAFT, INK ARBOR, 600
1
2*
05586008
CORE, INK ARBOR, MOLDED
1
3A*
3B*
05586002
05586009
BRACKET, CORE STOP (INCH)
BRACKET, CORE STOP (METRIC)
1
1
4*
05586006
SHAFT, IN K ARBOR, LOCK
1
5*
991370
SPRING, TORSION, CORE STOP
1
6
991454
8-32 X 1/4" THUMB SCREW
1
7
991510
BALL BEARING , 16mm O.D. x 8mm I.D. FLG
2
8
117954
GEAR-RIBBON 75T
1
9
990327
E-RING, 5/16
1
