Avery Dennison SNAP 500 - Electrical Components Assembly - Gen 2

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 137
Classification: Avery Dennison - Public

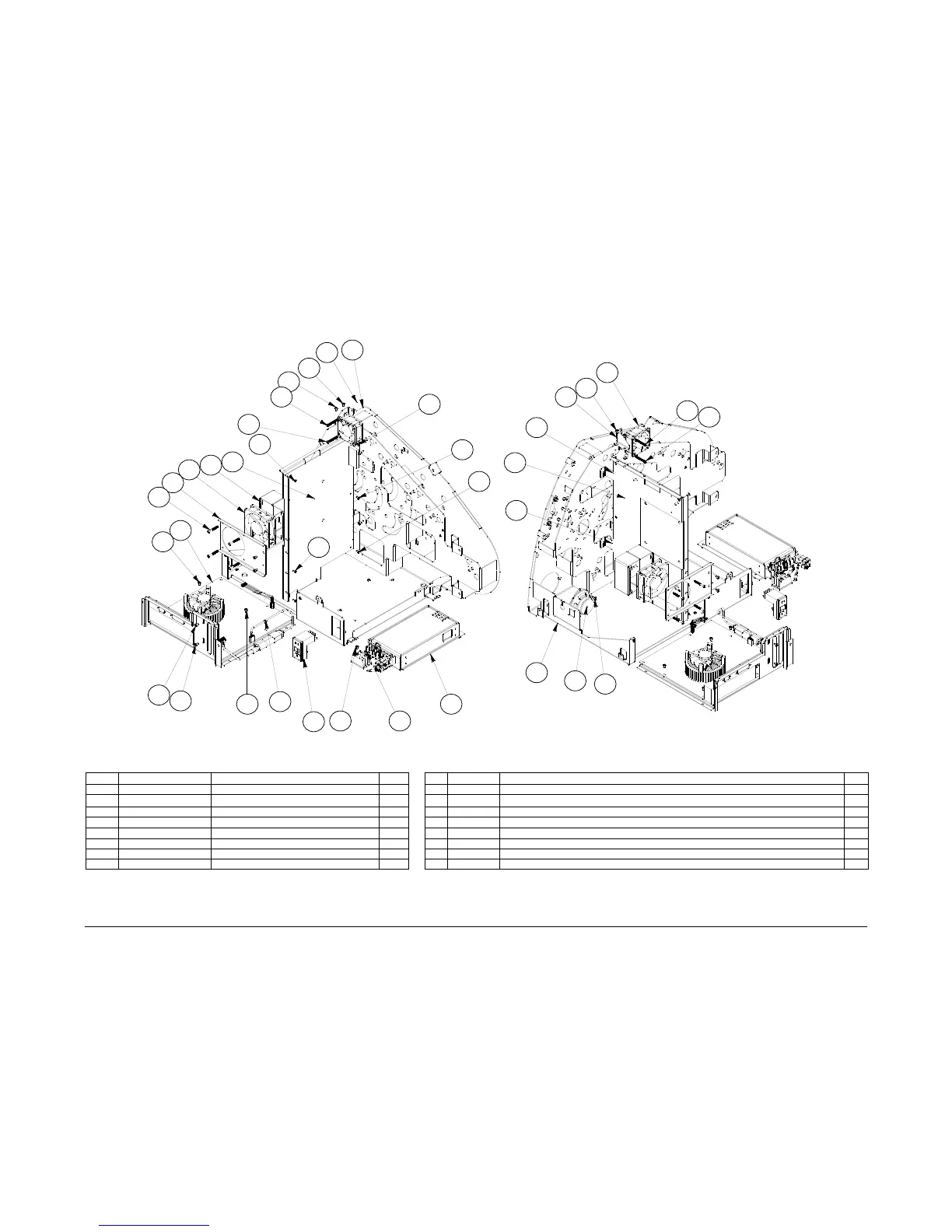

13.22 Electrical Components Assembly – Gen 2
ITEM
PART NO.
DESCRIPTION
QTY
9
991422
4 SCREW, 4-40 X 1/4 PAN HD PHILLIPS
6
1
05581104-1
FAN, HARNESSED, 12V
1
10
991638
SCREW, 6-32 X 1.250" PHCS
2
2
05581179
SPEAKER, 8 OHM 2W HARNESSED
1
11
996293
ENTRY, AC UNFILTERED
1
3
05631000
BRACKET, MCB COOLING FAN
1
12
05631111
ASSEMBLY, ADVANTECH MOTHERBOARD, 2 OVER 1, HARNESSED
1
4
05631107-500-2/1-0
PCB, MCB 500 2/1 PROGRAMMED
1
13
05631116
POWER SUPPLY, MEANWELL 24V HARNESSED WITH OFSET BRACKET, 2 OVER 1
1
5
05631201
KIT, FRAME ASSEMBLY, SNAP 500 2/1
1
14
05589012
BRACKET, FAN MOUNT
1
6
05631202
BRACKET MCB SUPPORT
1
15
05589015
HARNESS, FAN 80MM 12V
1
7
991372
6 SCREW, 6-32 X 1/4 PAN PHILLIPS
16
16
05589013
BRACKET, FAN CHUTE
2
8
991373
8 SCREW, 8-32 X 1/4 PAN PHILLIPS
2
17
05991285
6-32 X 1 250 BHCS
4
7
7
3
1
10
10
9
9
9
9
9
4
16
15
14
17
12
7
7
7
7
7
7
11
7
7
13
5
2
8
6
7
3
7
1
10
10
