Avery Dennison SNAP 500 - Feed Assembly - Gen

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 128
Classification: Avery Dennison - Public

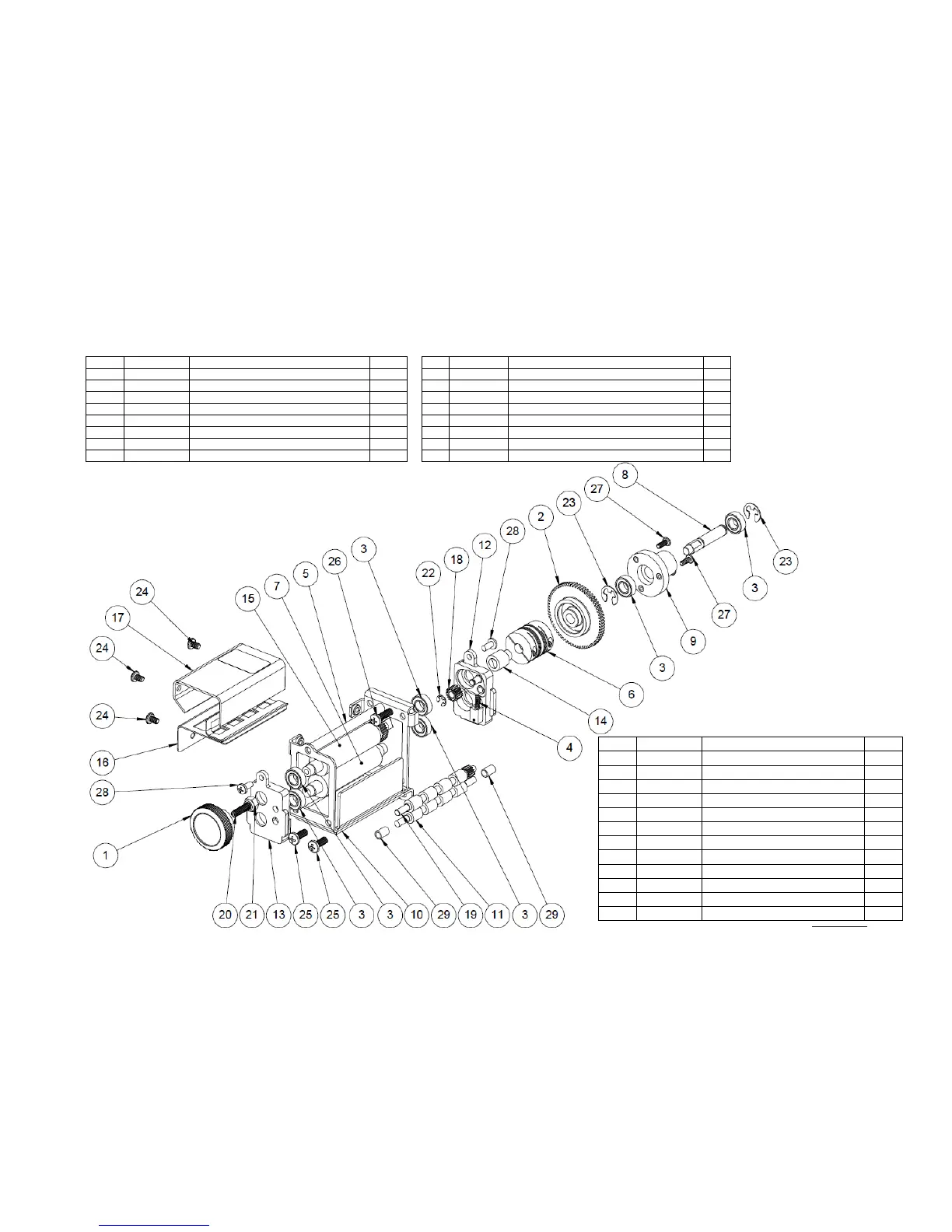

13.13 Feed Assembly – Gen 2
ITEM
PART NO
DESCRIPTION
QTY.
9
05634012
BEARING MOUNT, FEED SHAFT
1
1
105023K
IMPRESSION ADJ. KNOB
1
10
05634015
BRACKET, FEED ASSEMBLY
1
2
117902
GEAR-PLATEN
1
11
05634020
ROLLER, LOWER NIP FEED
1
3
117903
BEARING-PLATEN
6
12
05634021
BRACKET, INNER ROLLER ASSEMBLY
1
4
05354022
SPRING, ECCENTRIC LIFT
1
13
05634022
BRACKET, OUTER ROLLER ASSEMBLY
1
5
05594041
SHAFT, AUX DRIVE SUPPORT
1
14
05634101
ASSEMBLY, DRIVE
1
6
05627030
DRIVE, BEAM COUPLING, ALTERED
1
15
05634102
ROLLER, GRIT
1
7
05634010
ROLLER, MOLDED LOWER FEED
1
16
05634103
ASSEMBLY, STRIPPER
1
8
05634011
SHAFT, FEED DRIVE
1
17
05634104
COVER, FEED ASSY
1
ITEM
PART NO
DESCRIPTION
QTY.
18
05634138
GEAR, 18T FEED IDLER
1
19
05634149
ROLLER, AUX FEED DRIVE
1
20
05989979
10:32 X 1 KNURLED CUP POINT
1
21
05990104
10:32 E-S NUT
1
22
05990325
SNAP RING, 3/16 "E" RING
1
23
05990327
SNAP RING, 5/16 "E" RING
2
24
05991373
8-32 X 1/4 PAN PHILLIPS
4
25
05991376
10-32 X 1/2 PAN PHILLIPS
2
26
05991377
10-32 X 3/4 PAN PHILLIPS
1
27
05991436
6-32 X 3/8 PAN PHILLIPS NS
3
28
05991636
8-32 X 3/8 PHILLIPS PAN HEAD
2
29
05999098
BUSHING, 3/16 X 1/4 X 3/8
2
