User’s Manual—SNAP™ 500 Gen 1 and Gen 2 124
Classification: Avery Dennison - Public
19
10
11
6
5
4
17
2
3
1
7
18
15
12
3
2
8
16
14
13
9
8
13
8
20

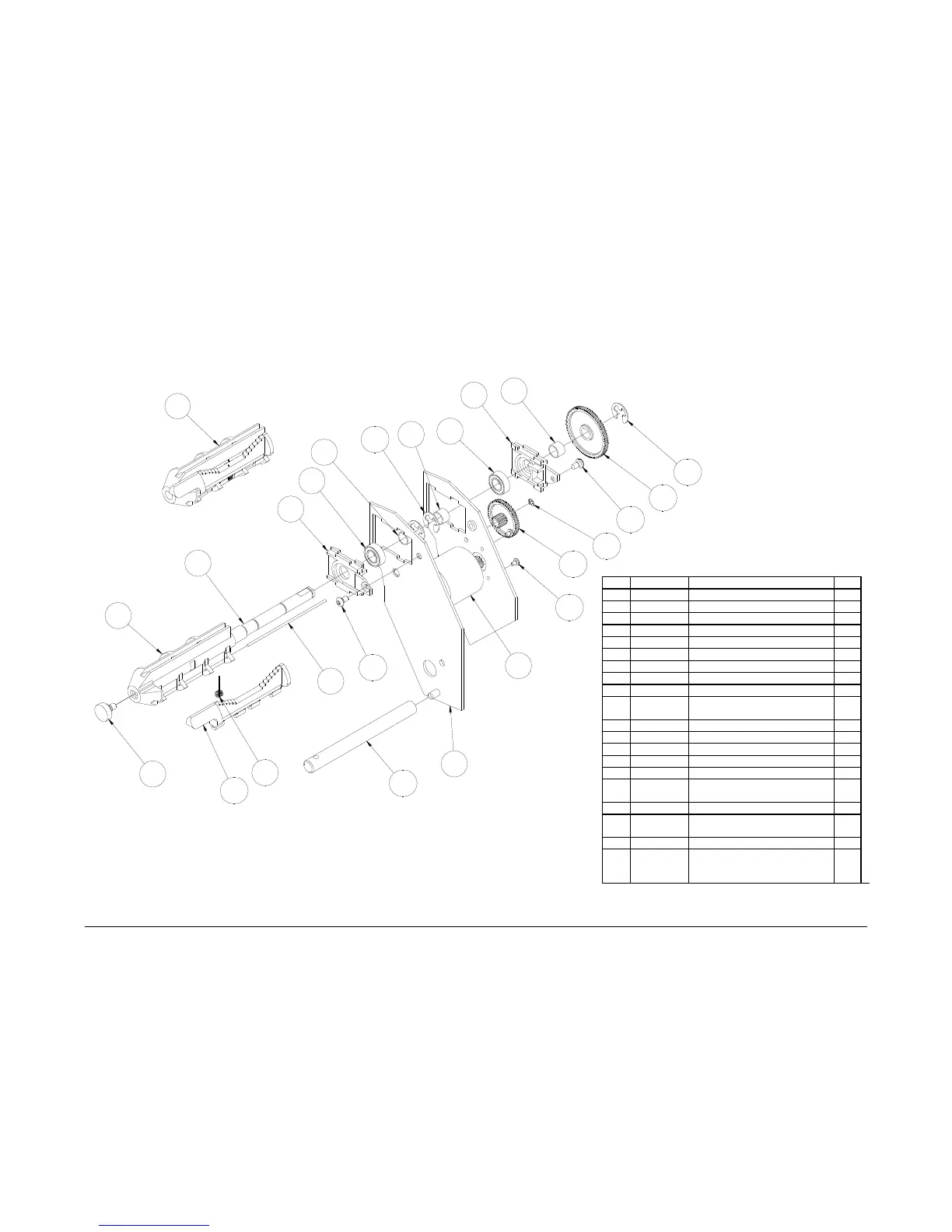

13.9 Ink Unwind / Rewind Assembly – Gen 1
*Item 20 may be ordered as a complete arbor assembly
Item
Part #
Description
Qty
1
05581201
Frame, Upright
1
2
118052
Holder, Bearing
2
3
117903
Bearing, Platen
2
4
05586007
Shaft, Ink arbor
1
5
05586008
Core, Ink arbor, Molded
1
6
991454
8-32 x 1/4 Thumb screw
1
7
126468
Motor, Ribbon
1
8
05586004
Spacer, Ink arbor, Outer
3
9
05586006
Shaft, Ink arbor lock
1
10
05586002
05586009
Bracket, Inch core stop - Black
Bracket, Metric core stop - Gray
1
11
991370
Torsion spring
1
12
991367
Snap ring, 9/64 e-ring
1
13
990327
Snap ring, 5/16 e-ring
3
14
117954
Gear, Ribbon, 75T
1
15
117955
Gear, Ribbon, 54T - 15T
1
16
991372
6-32 x 1/4 Phillips pan head
screw
1
17
990019
Hexagon socket BH cap screw
1
18
991368
2.5mm x 5mm Slotted PH
screw
3
19
05586003
Shaft, Ink turn
1
20*
05586094K
05586095K
Kit, Single arbor assembly, Inch
Kit, Single arbor assembly,
Metric
