Avery Dennison SNAP 500 - Print Head Assembly - Gen

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 122
Classification: Avery Dennison - Public

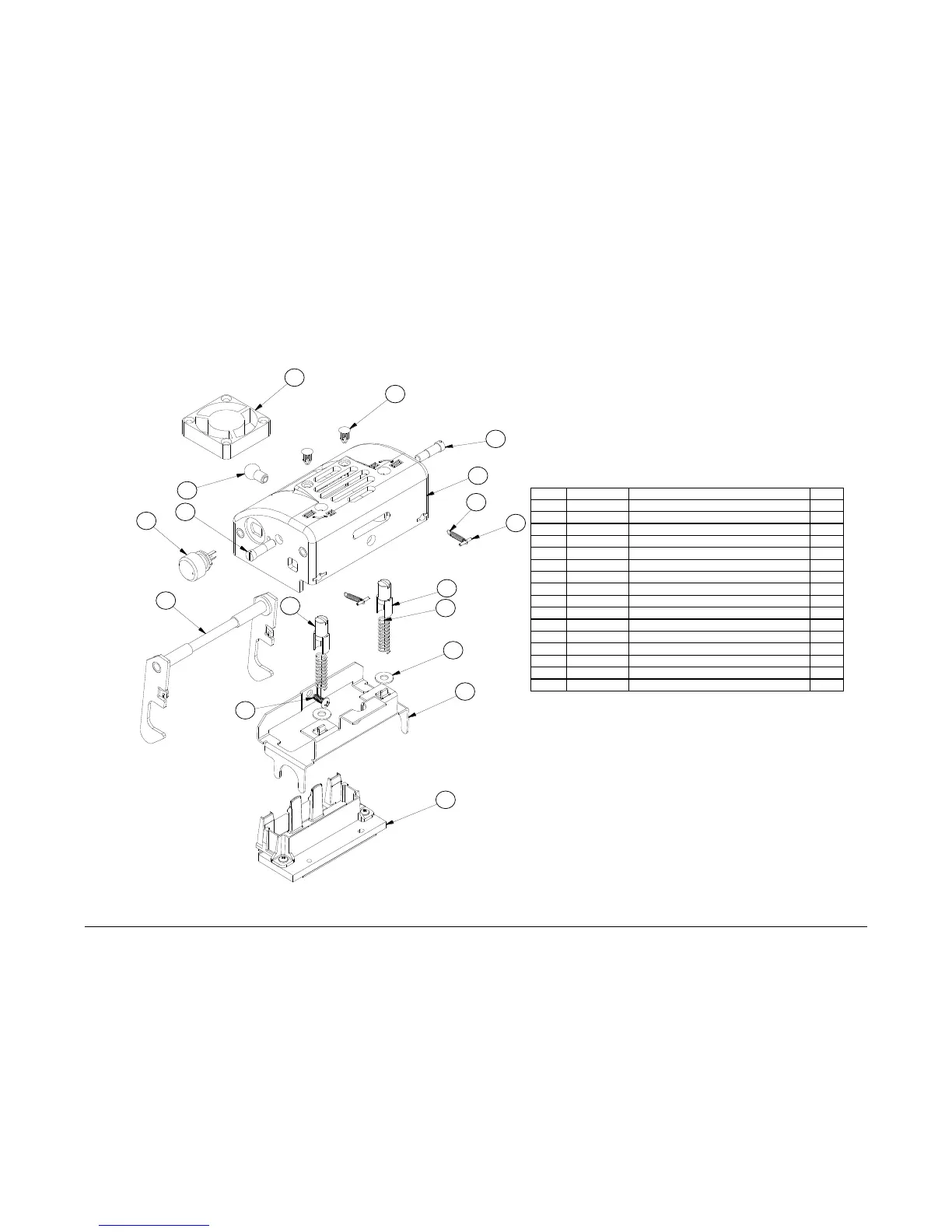

13.7 Print Head Assembly – Gen 2
ITEM
PART NO.
DESCRIPTION
QTY
1
05585022
MOUNT, PRINT HEAD
1
2
05589029
HARNESS, FAN, PRINT HEAD
1
3
991492
RIVET
2
4
117950
PIN, PRINT HEAD PIVOT
1
5
05635003
BRACKET, PRINT HEAD MOUNT
1
6
05631190S
PRINT HEAD, 500 2 OVER 1
1
7
990436
ROLL PIN, .062 X .375
2
8
05585027
ASSY, LATCH, PRINT HEAD
1
9
05585005
SCREW, SPECIAL, HEAD LOCK
2
10
991383
SPRING, EXTENSION
2
11
05581111
POT, CONTRAST CONTROL
1
12
990469
WASHER, NYLON, .031 THICK
2
13
117951
BUTTON PRESSURE - TOOL T-10542
2
14
991382
SPRING, COMPRESSION
2
15
991653
SCREW, PAN HEAD PHILLIPS
1
NS
05581126
CABLE, PRINTHEAD
3
6
5
12
14
13
7
10
1
9
3
2
4
9
11
13
15
8
6
5
12
15
14
13
13
7
10
8
11
9
4
2
3
9
1
