Avery Dennison SNAP 500 - Knife - Drive - Nip Roller Assembly - Gen 1

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 129
Classification: Avery Dennison - Public
1
2
18
22
19
23
6
13
16
15
4
17
14
12
18
17
15
25
3
20
21
5
11
7
8
10
9
24

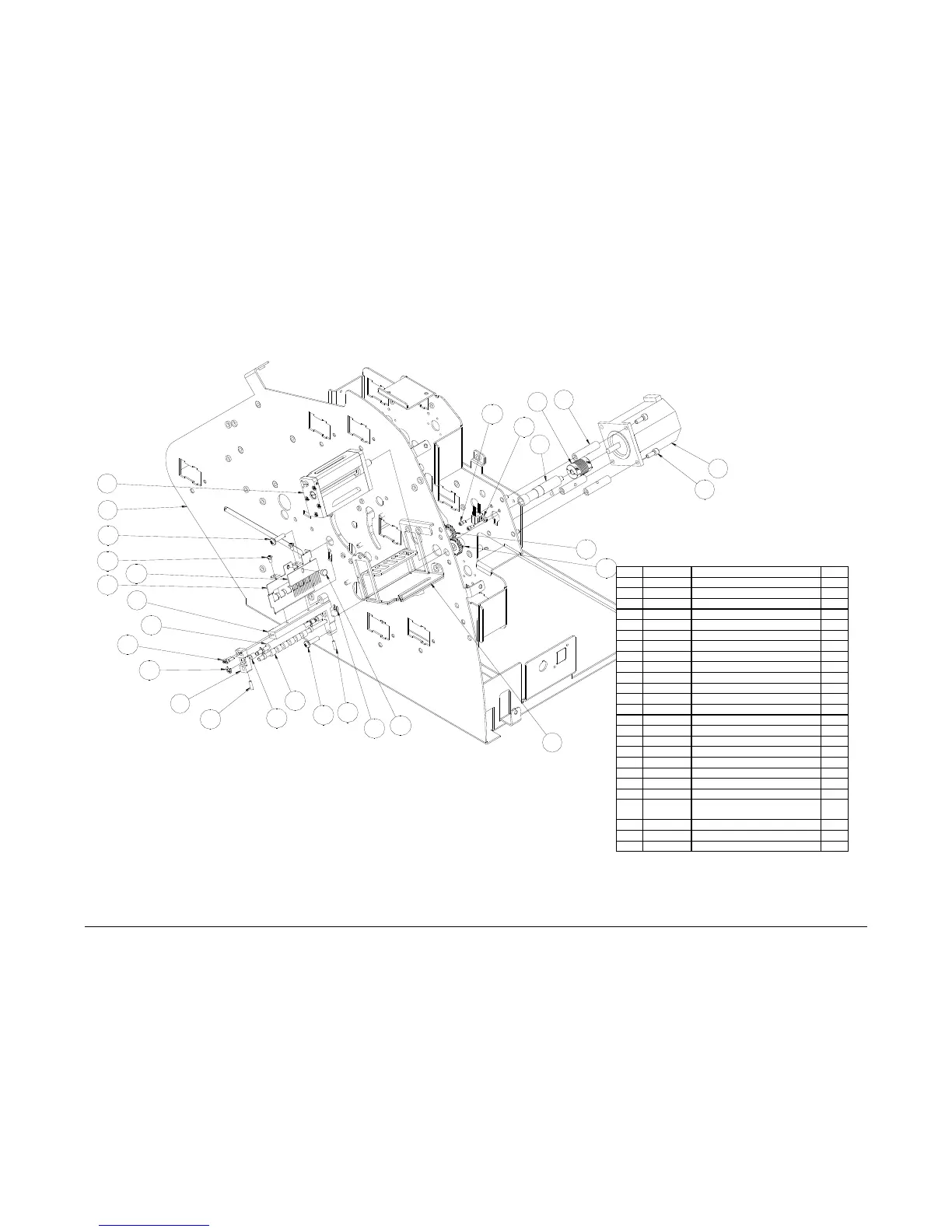

13.14 Knife – Drive – Nip Roller Assembly – Gen 1
*Recommended Spare Parts
Item
Part #
Description
Qty
1
0587090-1
Assembly, Knife
1
2
05581201
Frame, Upright
1
3
05584011
Frame, Knife / Drive
1
4
05584033
Bracket, Nip roller, Outer
1
5
05587017
Standoff, Knife motor
3
6
05584019
Bracket, Nip roller mount
1
7
245026
Motor, Stepper
1
8
991438
Drive, Beam coupling
1
9
05587018
Shaft, Knife drive
1
10
05581130
Sensor, Optical
1
11
990081
10-32 x 1/2 Cap screw
3
12*
05584015
Roller, Molded
1
13
05584016
Roller, Nip, Idler
1
14
999165
Bushing, 3/16 x 1/4 x 1/4
2
15
990325
Snap ring, 3/16 e-ring
4
16
990424
4-40 x 3/8 Cap screw
2
17
991523
Spring, comp 500/600 nip ass’y
2
18
991377
10-32 x 3/4 Phillips PH Screw
2
19
05588045
Bracket, Label stop, Rear
1
20
05584028
Gear, Nip 26T, 32P
1
21
05584027
Gear, Idler 22T, 32P
2
22
991372
6-32 x 1/4 Phillips pan head
screw
2
23*
05584034
Electrical, Static brush
1
24
990006
4-40 x 1/4 Cap screw
2
25
991471
4-40 x 1/4 Thumb screw
1
