11.4 Mini Web Guide Adapter
Some printers have the Mini Web Guide Adapter installed. To use this feature
 Turn the large black web guide knob to widen the web guide plates to
their maximum “open” position.
 Slide the Mini Web Guide Adapter up, under the web guide, in between
the web guide plates.
 The Mini Web Guide Adapter will “clip” onto the web guide posts.
 Turn the large black web guide knob so that the web guide plates close in
on the Mini Web Guide Adapter.
 Doing this will automatically center the Mini Web Guide Adapter.

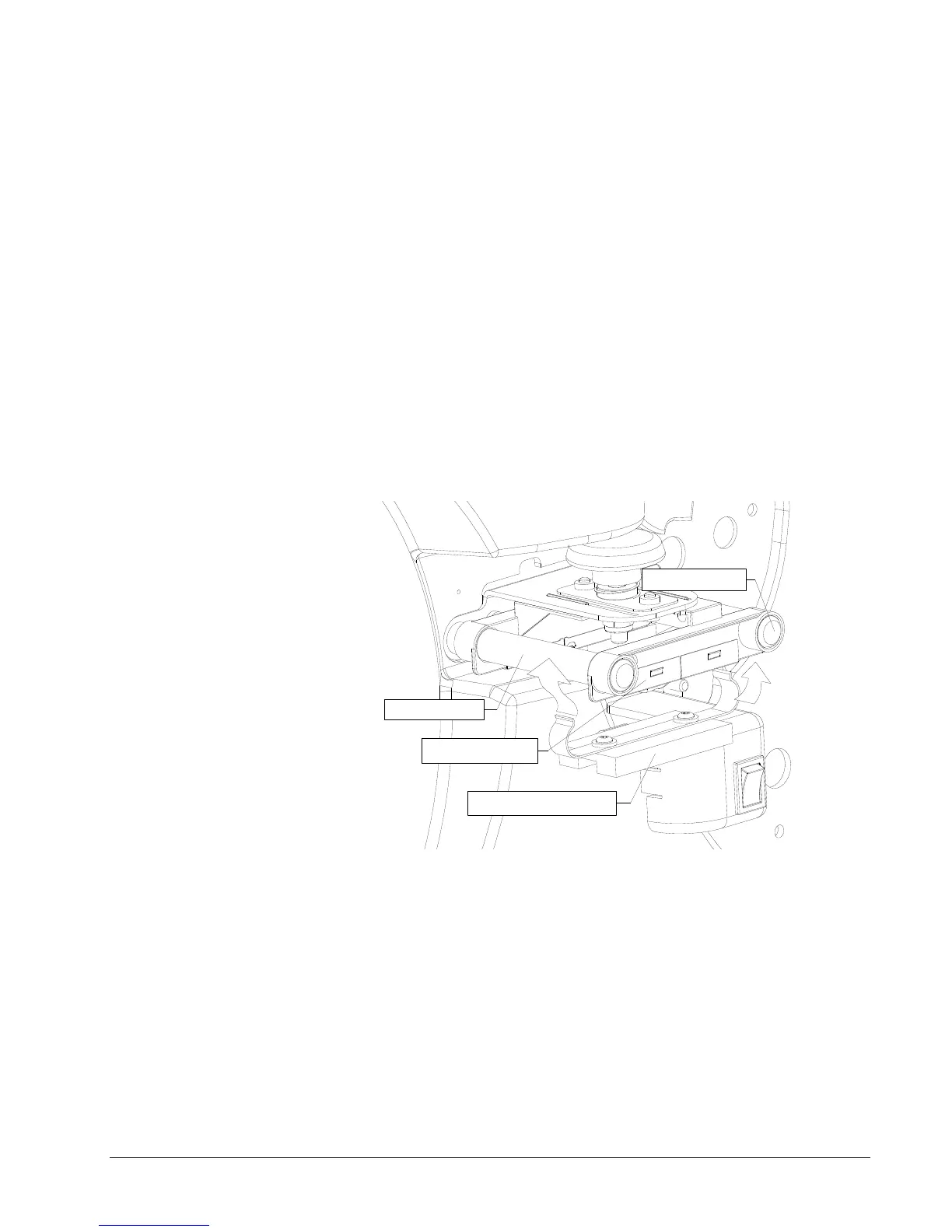

MINI WEB GUIDE ADAPTER
WEB GUIDE POST
WEB GUIDE POST
WEB GUIDE PLATE
