Avery Dennison SNAP 500 - Stacker

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 142
Classification: Avery Dennison - Public

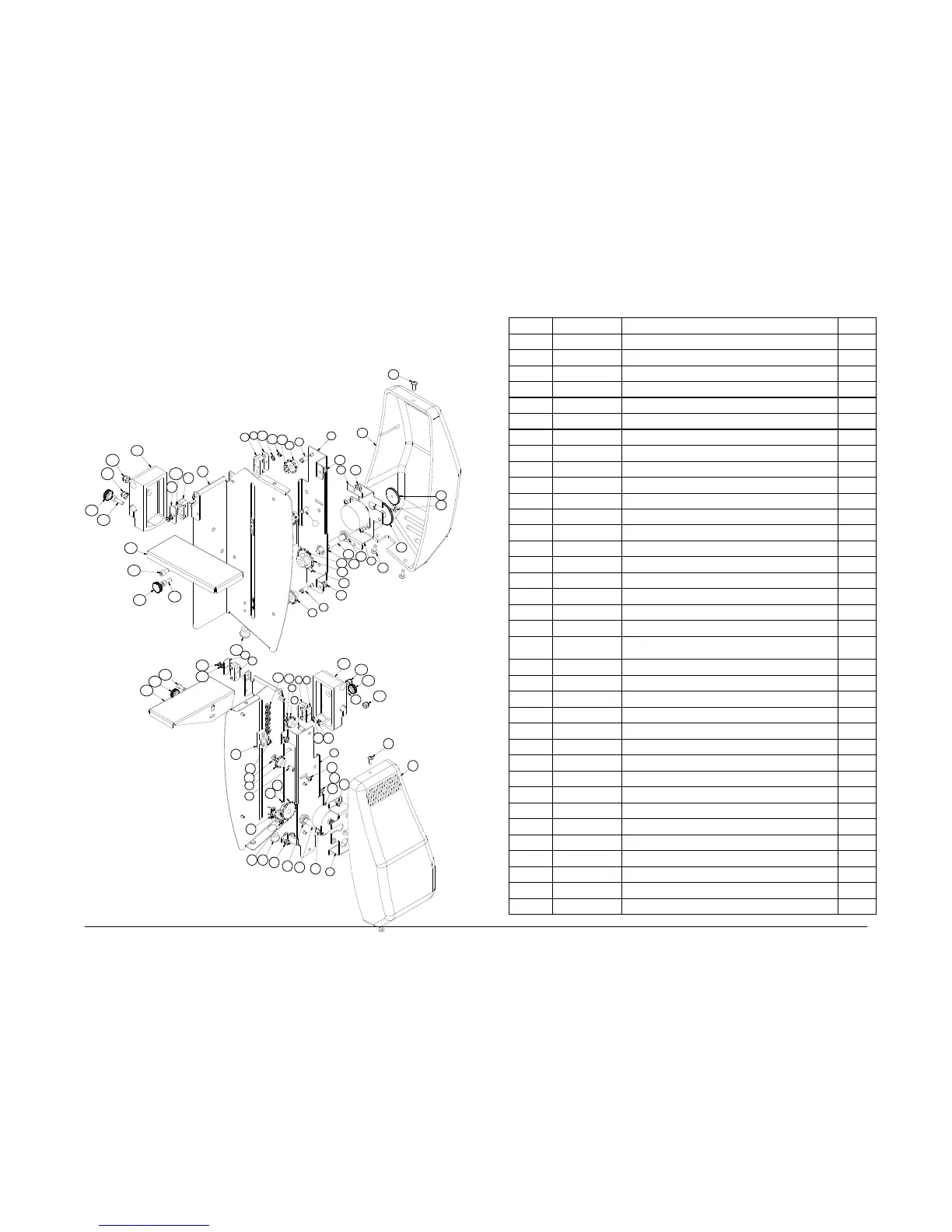

13.27 Stacker
ITEM
PART NO.
DESCRIPTION
QTY
1
05638005
FRAME, STACKER 500 2/1
1
2
05638004
BRACKET, MIDDLE SUPPORT
1
3
05638003
BRACKET, STACKER MOTOR
1
4
05588029
BRACKET, DIODE MOUNT, FRONT
1
5
05588028
BRACKET, DIODE MOUNT REAR
1
6
05588031
COVER, LABEL SENSOR
2
7
05638006
SHAFT, SPROCKET
2
8
05638007
SHAFT, TENSIONER
1
9
05991640
SPROCKET, STACKER, 10T
3
10
221117
STRAIN RELIEF .360 X .625"
1
11
05991510
BALL BEARING , 16mm O.D. x 8mm I.D. FLG
2
12
05638002
SHAFT, MAIN DRIVE
1
13
117954
GEAR-RIBBON 75T
1
14
117955
GEAR-RIBBON 54T-15T
1
15
05991419A
SPROCKET, STACKER 16T ALTERED
1
16
05588001A
PLATFORM SLIDE, ALT
1
17
05990327
E-RING, 5/16
1
18
05990329
E-RING, 7/32
3
19
05991373
8 SCREW, 8-32 X 1/4 PAN PHILLIPS
3
20
05581199A
HARNESS, DOWNSTACKER, PROGRAMMED
WITH GEAR
1
21
05588080
BRACKET, LABEL PLATFORM
1
22
05991182
10-32 X 3/8 SHCS w Nylon
1
23
05990081
10-32 x 1/2 SOC HD CAP SCR
1
24
05990313
THUMB KNOB, #10
1
25
05989966
#4 STAR WASHER
2
26
05990005
4-40 HEX NUT
2
27
05990069
8-32 HEX NUT
5
28
05990058
8-32 X 1/4 KNURLED CUP POINT
2
29
05989986
4-40 ES NUT
1
30
05638010
BRACKET, STACKER MOUNT
1
31
05990104
10-32 E-S NUT
2
32
05991455
10-32 X 5/8 THUMB SCREW
1
33
05588072
COVER, STACKER REAR VENTED
1
34
05991508
8-32 X 1/2 FLANGED BUTTON HEAD SCREW
3
35
05638008
CHAIN, STACKER DRIVE
1
36
05991335
E-RING, 3/32
1
1
4
20
6
30
31
31
32
32
24
23
22
21
10
9
7
27
28
15
28
11
12
11
34
2
3
33
34
27
3
27
7
9
18
26
25
6
5
8
13
17
14
35
18
33
34
31
31
32
32
30
26
25
6
5
9
7
2
16
36
18
9
8
28
15
20
10
27
11
27
19
20
27
3
12
4
26
25
6
22
24
21
29
19
30
31
31
1
4
6
20
5
25
26
18
7
9
2
6
27
34
33
27
3
14
17
34
3
13
11
12
11
28
15
28
27
7
9
23
24
22
21
32
32
10
26
25
6
4
22
24
21
35
7
9
6
5
18
30
31
32
31
32
26
2
25
19
27
27
20
16
36
18
9
8
15
28
20
29
10
27
11
12
19
3
34
33
