Avery Dennison SNAP 500 - Turn Bar; Stacker Mount Assembly - Gen 2

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 138
Classification: Avery Dennison - Public

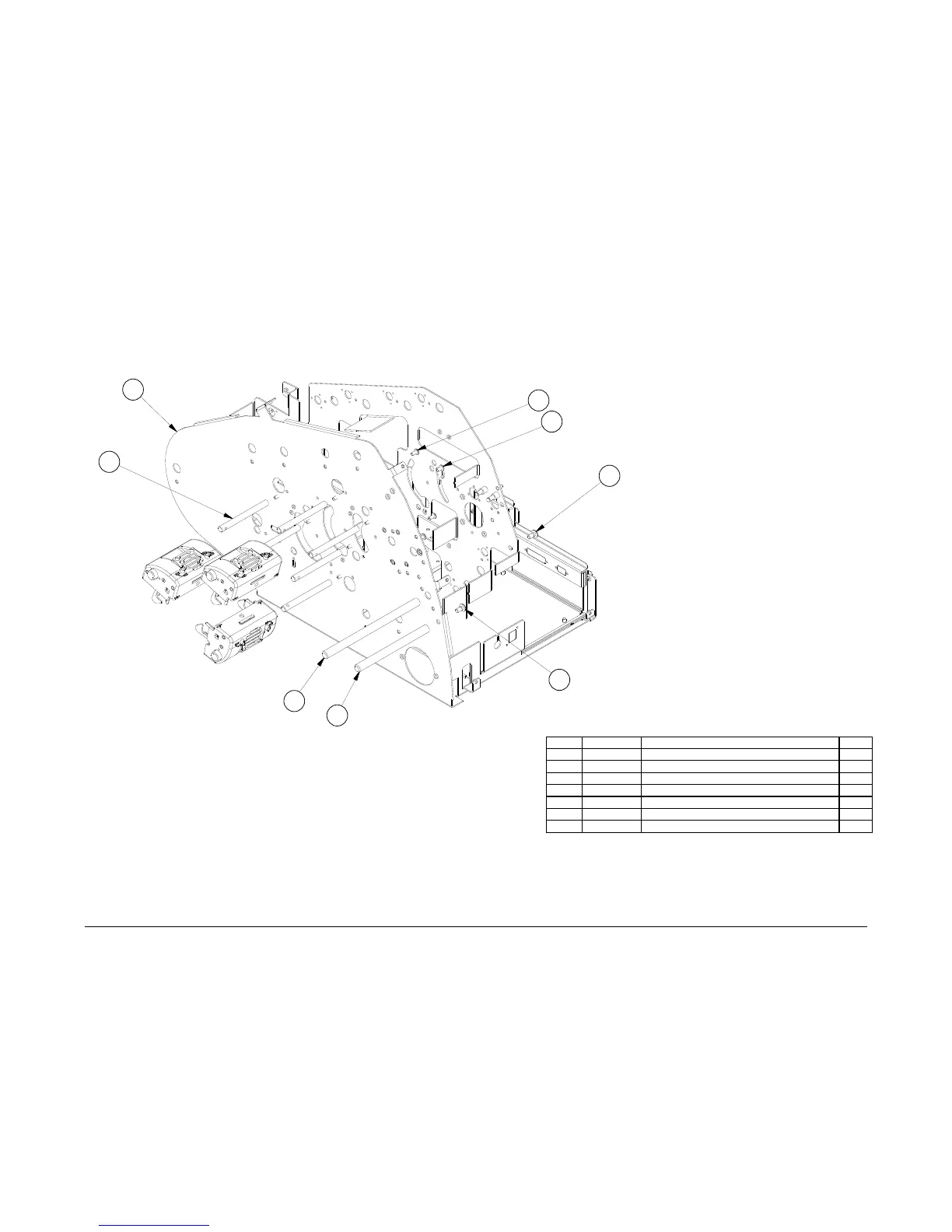

13.23 Turn Bar / Stacker Mount Assembly – Gen 2
ITEM
PART NO.
DESCRIPTION
QTY
1
05586003
SHAFT, INK TURN
6
2
05588009
SHAFT, STACKER MOUNT
1
3
05631201
KIT, FRAME ASSEMBLY, SNAP 500 2/1
1
4
05638001
SHAFT, LONG STACKER MOUNT
1
5
991374
1/4 SCREW, 1/4-20 X 1/2 PAN PHILLIPS
2
6
991379
10-32 X 3/8 PHILLIPS PAN HEAD SCREW
6
NS
05586010
STATIC BRUSH (INK ROLL)
3
6
6
5
3
1
4
2
5
