Avery Dennison SNAP 500 - Feed - Drive Train Assembly - Gen 1

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 127
Classification: Avery Dennison - Public

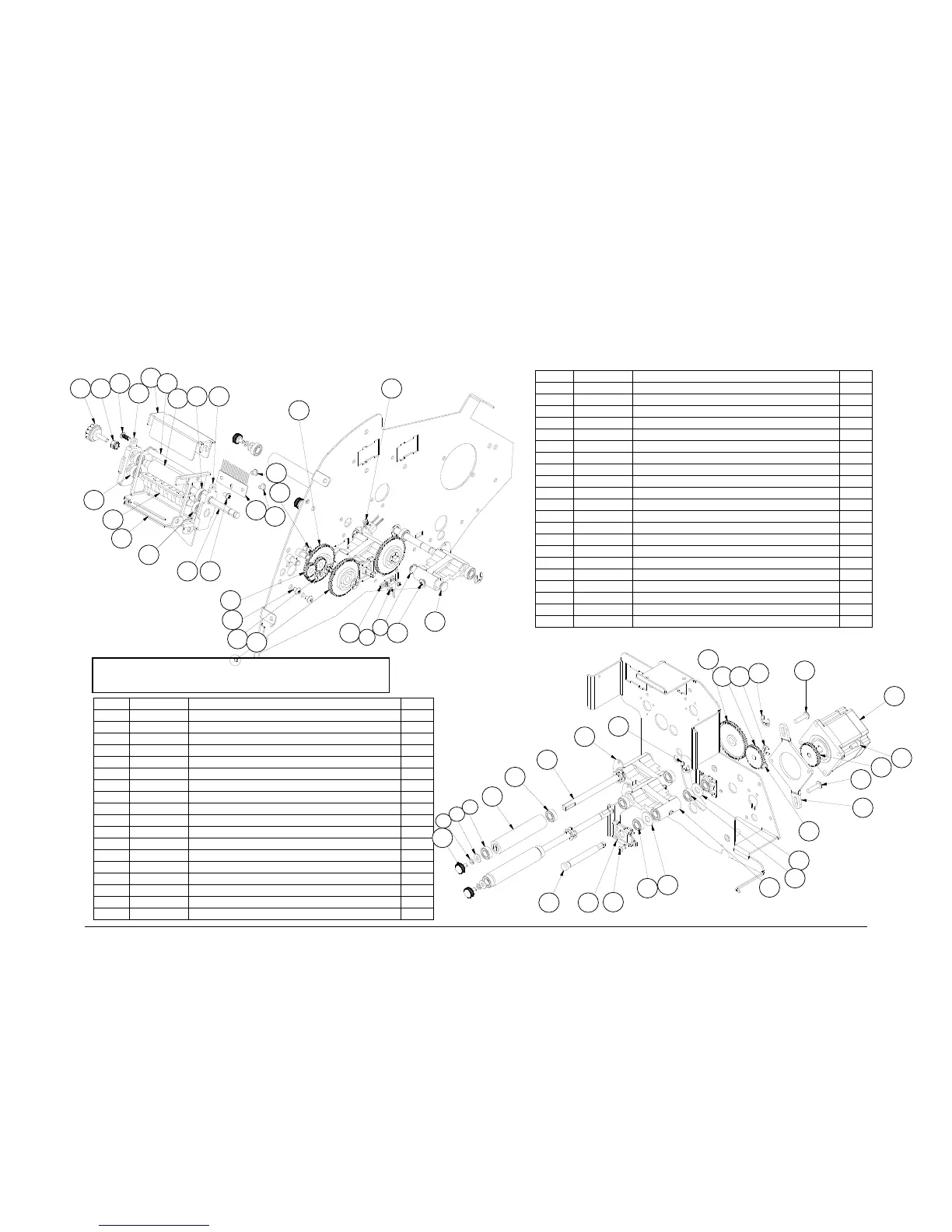

13.12 Feed – Drive Train Assembly – Gen 1
*Recommended spare parts
ITEM
PART NO.
DESCRIPTION
QTY
21
991372
6-32 X 250 PHILLIPS PAN HEAD SCREW
1
22
990019
6-32 X 1/4 BHCS
1
23
990080
10-32 X 3/8 SHCS
2
24
991373
8-32 X 1/4 PHILLIPS PAN HEAD SCREW
1
25
990104
10-32 E-S NUT
1
26
206042
THUMB SCREW KNOB WITH THREADS
1
27
05584027
GEAR, IDLER 22T, 32P
2
28
990326
E-RING, 1/4
3
29
991376
10-32 X 1/2 PHILLIPS PAN HEAD SCREW
1
30
05581130
SENOSR, OPTICAL SLOTTED, HARNESSED
2
31
989983
4-40 X 1/4 PHILLIPS PAN HEAD SCREW
4
32
991480
10-32 X 5/16 PHILLIPS PAN HEAD SCREW
1
33
990089
10-32 X 1/4 BHCS
2
34
990067
#8 SAE WASHER
2
35
990068
LOCK WASHER, #8
2
36
05584075
COVER, FEED GUARD, SNAP 500
1
37
991636
8-32 X 3/8 PHILLIPS PAN HEAD SCREW
1
38
05594041
SHAFT, AUX. DRIVE SUPPORT
1
ITEM
PART NO.
DESCRIPTION
QTY
1
05584011
FRAME, KNIFE / DRIVE
1
2
05584010
SUPPORT, BEARING
2
3
117903
BALL BEARING
16
4
118052
HOLDER, BEARING
2
5
05584026
BRACKET, FEED MOTOR MOUNT
1
6
351141
STEPPER MOTOR, HARNESSED
1
7
05585013
SHAFT, SWING BLOCK
1
8
990439
NYLON WASHER
2
9
05585014
BRACKET, SWING ARM
2
10
05585024
SHAFT, PLATEN ROLLER
2
11
05585016
GEAR, 38T DRIVE 300 DPI
2
12
117902
GEAR, PLATEN
3
13
05585012
SHAFT, SWING BLOCK
1
14
990486
SNAP RING, 3/8 E-RING
1
15*
05584012
ROLLER, AUX DRIVE
1
16*
05584013
ROLLER, MOLDED, IDLER
1
17
990327
E-RING, 5/16
10
18* **
05595010
ROLLER, MOLDED PLATEN - RED
2
18* **
05595008
ROLLER, MOLDED PLATEN – GREEN
2
19
991454
8-32 THUMB SCREW
2
20
991377
10-32 X 3/4 PHILLIPS PRINT HEAD SCREW
2
** ITEM 18 – PRINTERS COME STANDARD WITH RED
PLATEN ROLLERS UNLESS OTHERWISE SPECIFIED
26
25
37
36
38
2
15
2
3
12
30
24
15
3
1
3
16
27
33
28
12
30
31
14
32
13
40
29
40
39
10
9
17
12
11
28
17
20
6
23
11
20
5
21
8
3
9
8
3
22
4
7
19
3
18
34
35
3
