Avery Dennison SNAP 500 - Ink; Unwind Motor Assembly - Gen 2

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 126
Classification: Avery Dennison - Public

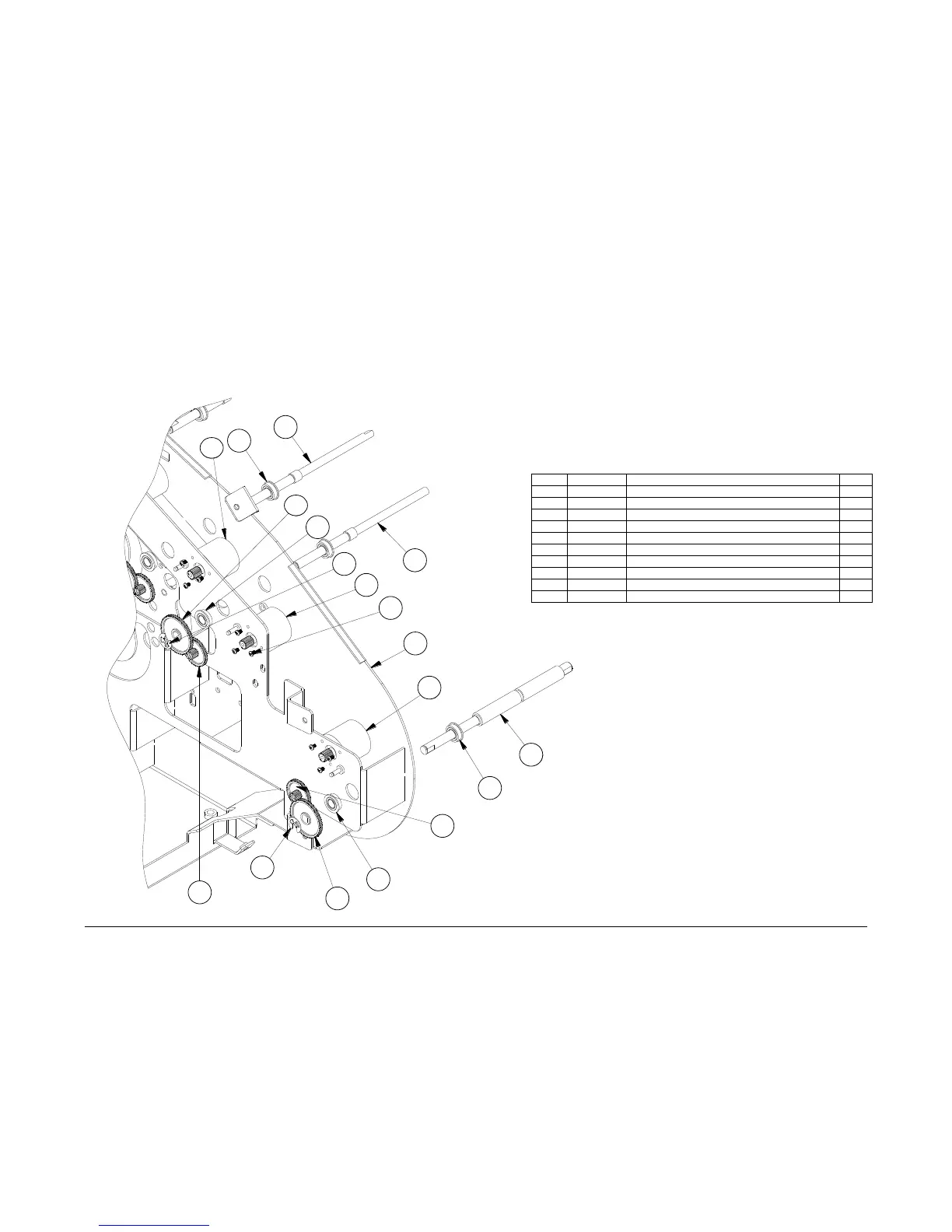

13.11 Ink / Unwind Motor Assembly – Gen 2
ITEM
PART NO.
DESCRIPTION
QTY
1
117954
GEAR-RIBBON 75T
7
2
117955
GEAR-RIBBON 54T-15T
7
3
126468
MOTOR - RIBBON
5
4
05581186
MOTOR, STOCK UNWIND W/ EXTENSION
2
5
05593001
SHAFT, UNWIND, 600
1
6
05596001
SHAFT, INK ARBOR, 600
6
7
05631201
KIT, FRAME ASSEMBLY, SNAP 500 2/1
1
8
990327
E-RING, 5/16
7
9
991510
BALL BEARING , 16mm O.D. x 8mm I.D. FLG
14
10
991639
M2.6 X 4mm PPHS
21
9
3
1
9
6
6
8
4
10
4
7
5
9
2
9
1
8
2
