Avery Dennison SNAP 500 - 600 DPI Machine Parts List - Gen 1

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 139
Classification: Avery Dennison - Public

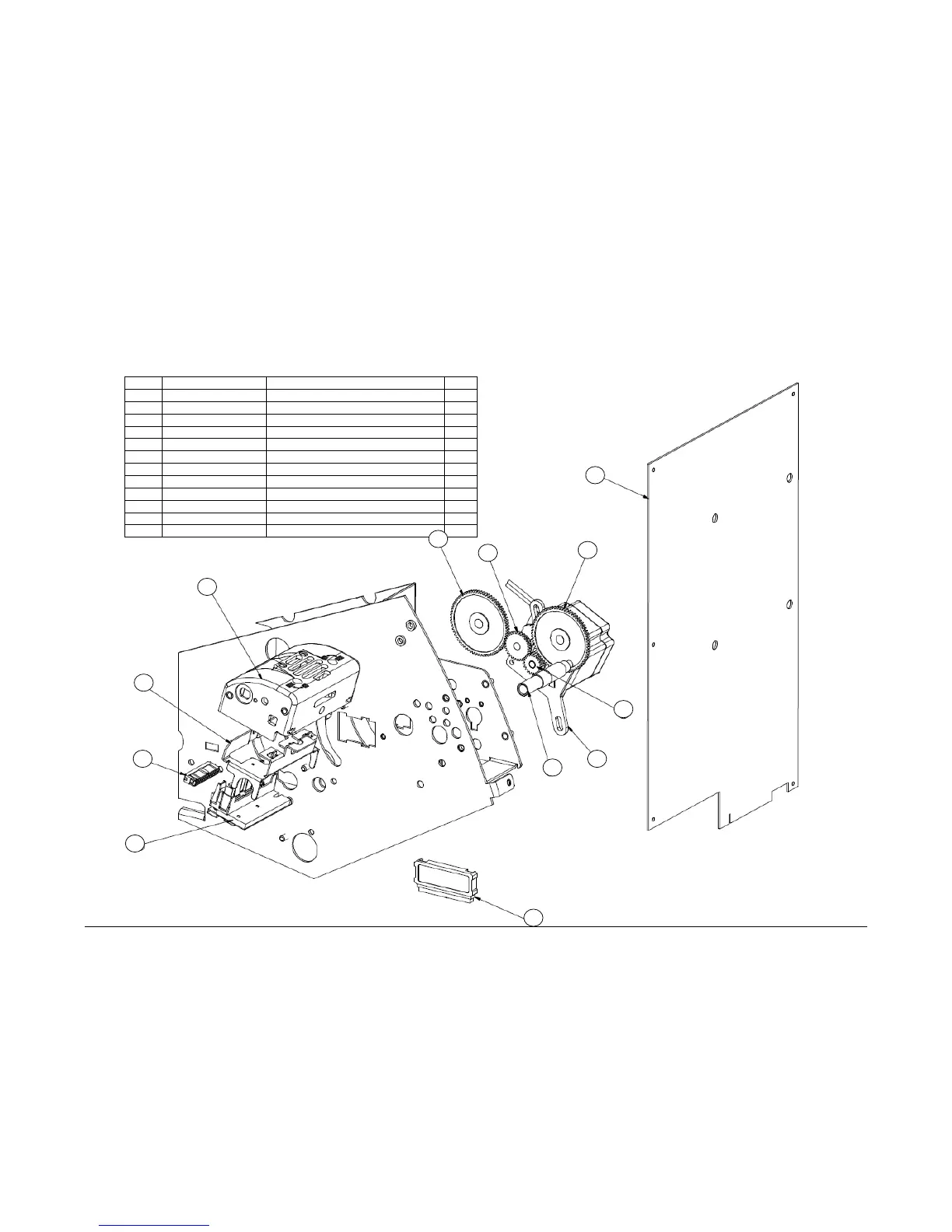

13.24 600DPI Machine Parts List – Gen 1
ITEM
PART NO.
DESCRIPTION
QTY
1
05341150A335
MODULE, PC MEMORY, ALTERED, V335
1
2
05580078D
DOCUMENT, 600DPI UPGRADE, SNAP 500
1
3
05584072
BRACKET, FEED MOTOR MOUNT 600DPI
1
4
05587117
ASSY, KNIFE DRVE SHAFT 600 DPI
1
5
05591143
CABLE, PRINT HEAD
2
6
05621107 500 600DPI
PCB, MCB 500 600DPI
1
7
05631194
PRINT HEAD, 600 DPI
2
8
05634028
GEAR, 70T
2
9
05634029
GEAR, 30T
1
10
05634031
GEAR, 21T
1
11
05635009
BRACKET, PRINT HEAD MOUNT, 600DPI
2
12
05635022
MOUNT, PRINT HEAD
2
8
9
8
10
3
4
1
7
5
11
12
6
