20 User’s Manual—SNAP™ 500 Gen 1 and Gen 2
Classification: Avery Dennison - Public
Print head retainers (mounted to print heads) and print head brackets are also
different between the two generations. They are not interchangeable. See differences
in pictures below.

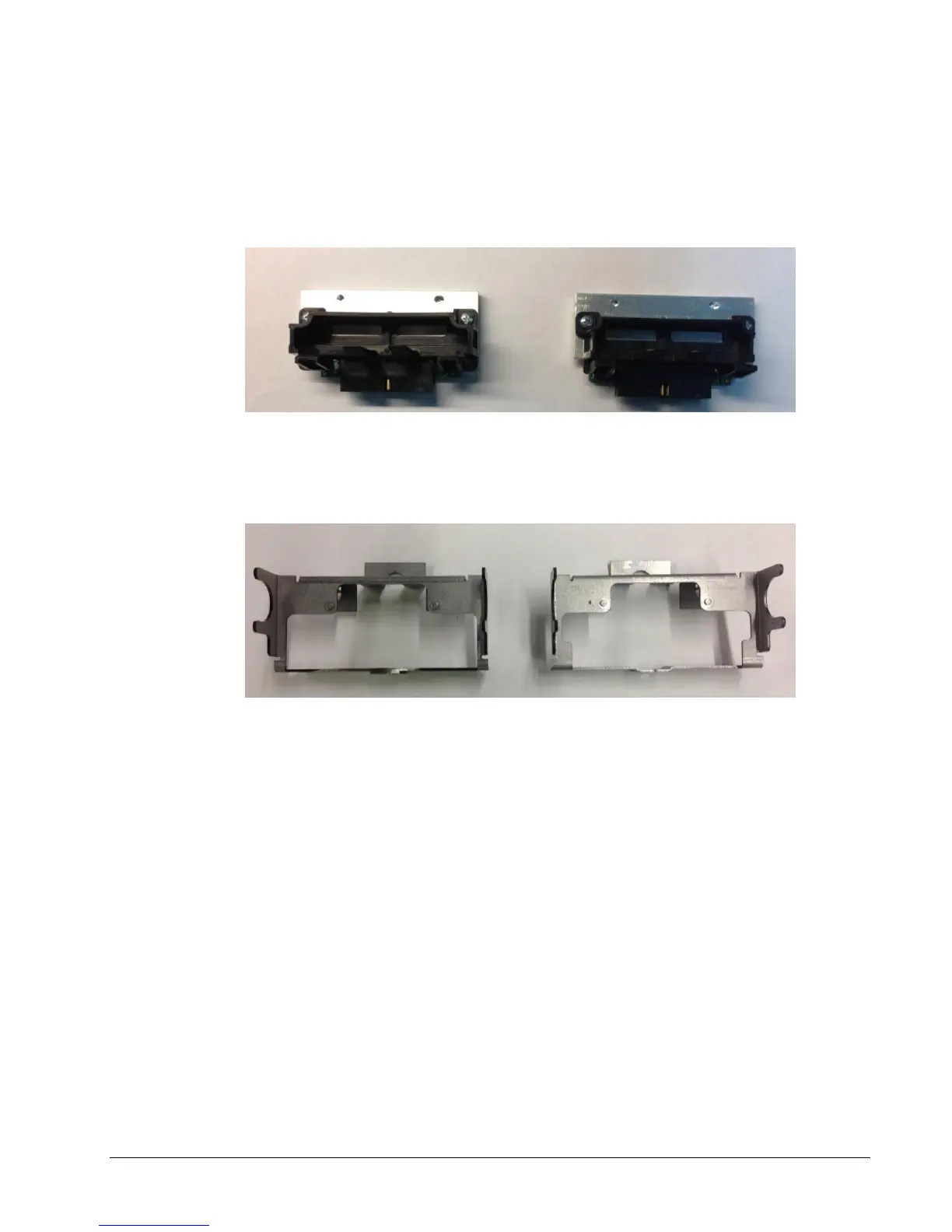

Figure 3A: Print Heads and Retainers
GEN 1 GEN2
Figure 3B: Print Head Brackets
GEN 1 GEN2
