5.1.5 Bench control foot pedal

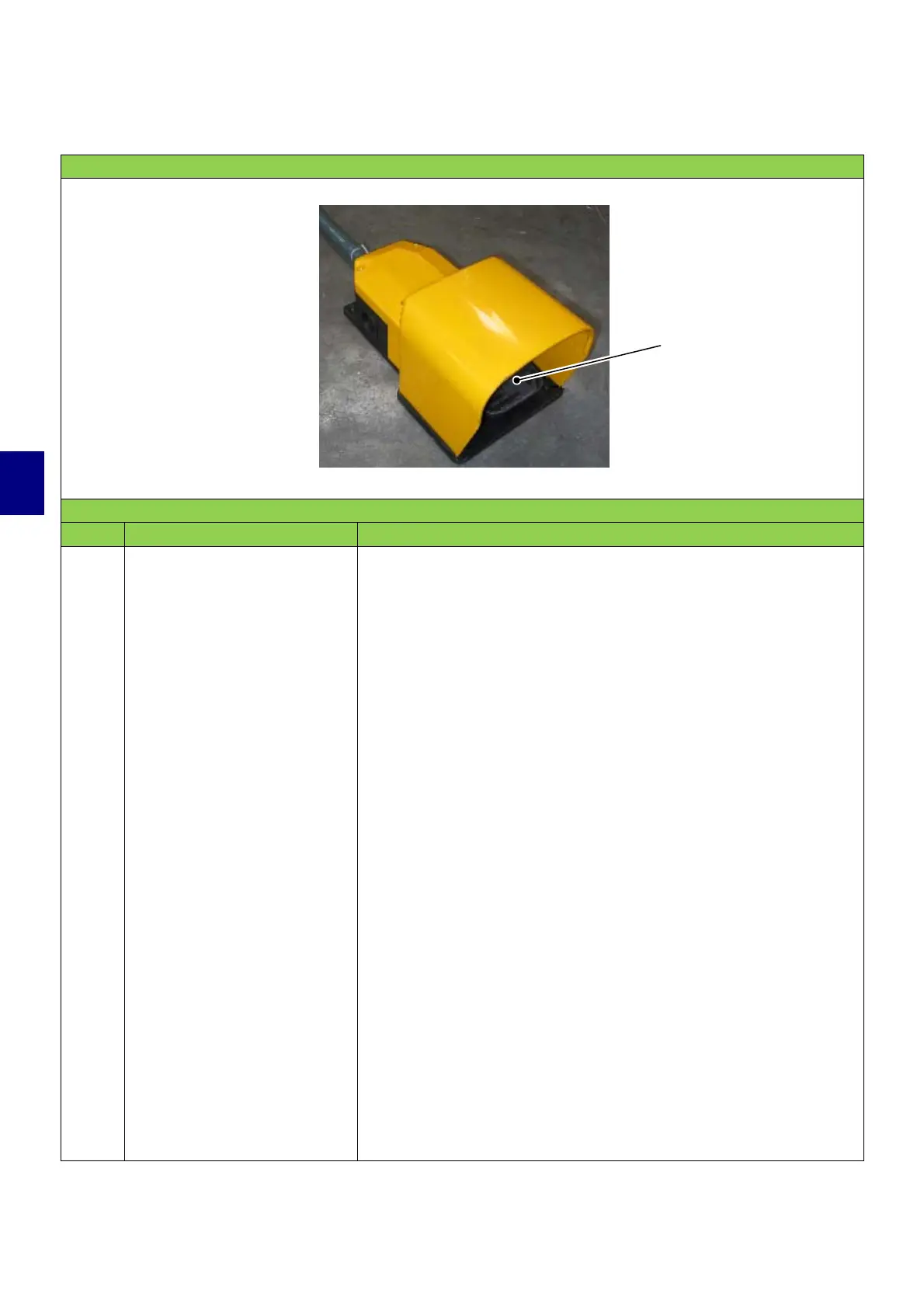

BENCH CONTROL FOOT PEDAL
DESCRIPTION OF CONTROLS
POS. CONTROL DESCRIPTION
1
“Block piece” pedal
Use this control to select how the piece is blocked.
• Manual mode:
The piece is blocked:
• For machines with TGV tables with clamps:
The piece is blocked at low pressure.
• For machines with TGV tables, vacuum surface or suction
cup system:
The piece is vacuum-blocked.
• Pressing the pedal again releases the piece.
Note: The loading door is open.
• Automatic mode:
The piece is blocked:
• For machines with TGV tables with clamps:
The piece is blocked at low pressure.
• For machines with TGV tables, vacuum surface or suction
cup system:
The piece is vacuum-blocked.
• Pressing the pedal again releases the piece.
The automatic release piece control automatically
releases the piece at the end of the cycle.
• Note: The loading door is open.
