3.7.18 Centralized grease lubrication system

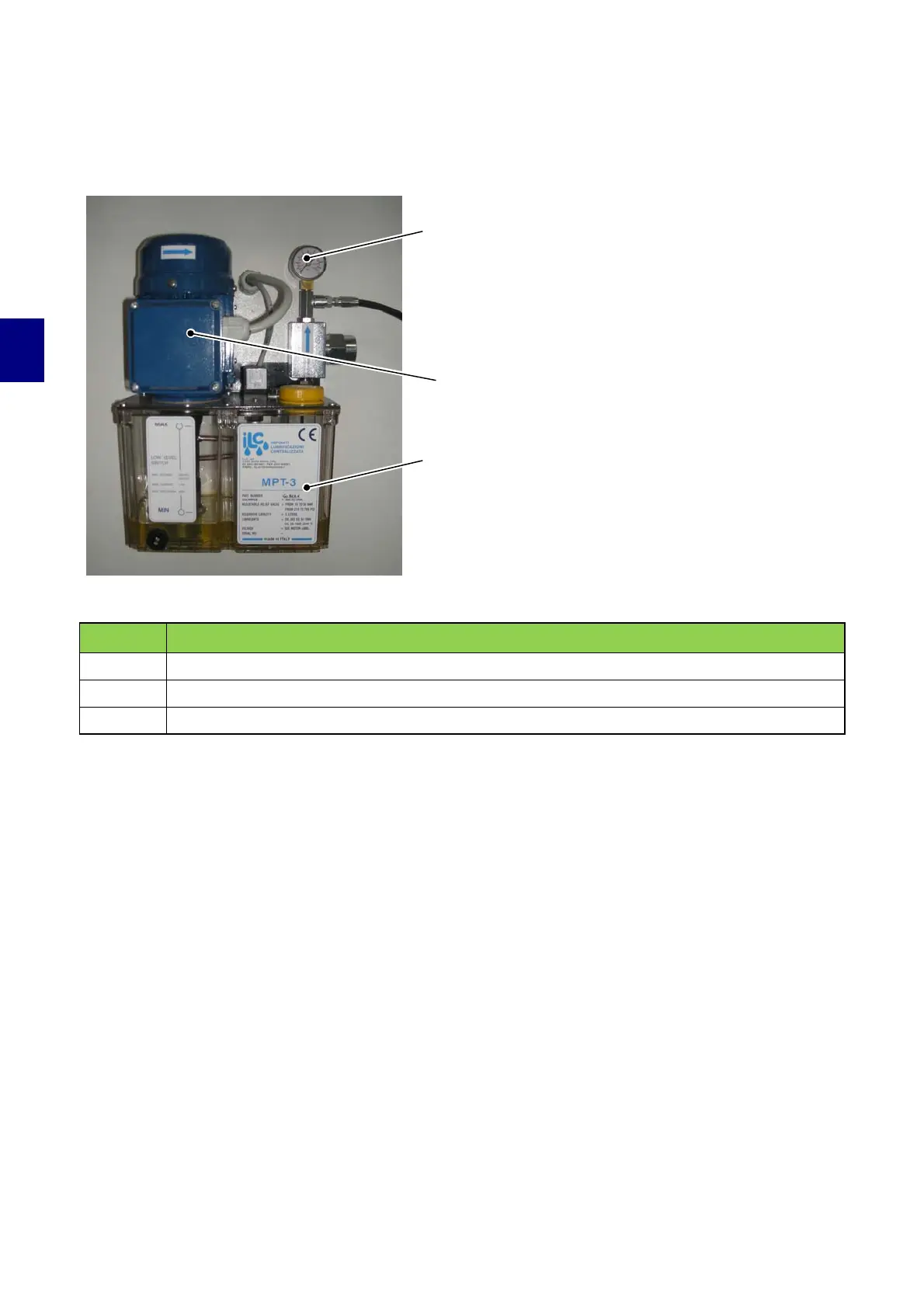

The centralized, automatic lubrication
system is connected by means of
progressive distributors to all the
recirculating ball skids and all the axis worm
screw nuts.
The system lubricates all the connected
points based on the lubricating time settings,
using the oil contained in the tank (1).
POS. NAME
1
Oil tank
2
Oil pump
3
Pressure gauge for working pressure
3.7.19 Safety guards and devices
Safety guards and devices are installed on the machine to protect mechanical moving parts (for
example, chains, gears, transmissions and moving organs) described in the chapter “2 Machine
safety devices”, paragraph “2.8 Safety measure”.
The efficiency of the safety devices must be assessed after the machine has been installed at the
end user’s site, at which point the risks related to interconnection of the machine with the other
machines in the plant may be evaluated, providing for any additional guards and/or safety devices
that may be deemed necessary.
3
1
2
