TWIN – Use and maintenance instruction manual
Chap. 3
- 8/28 -

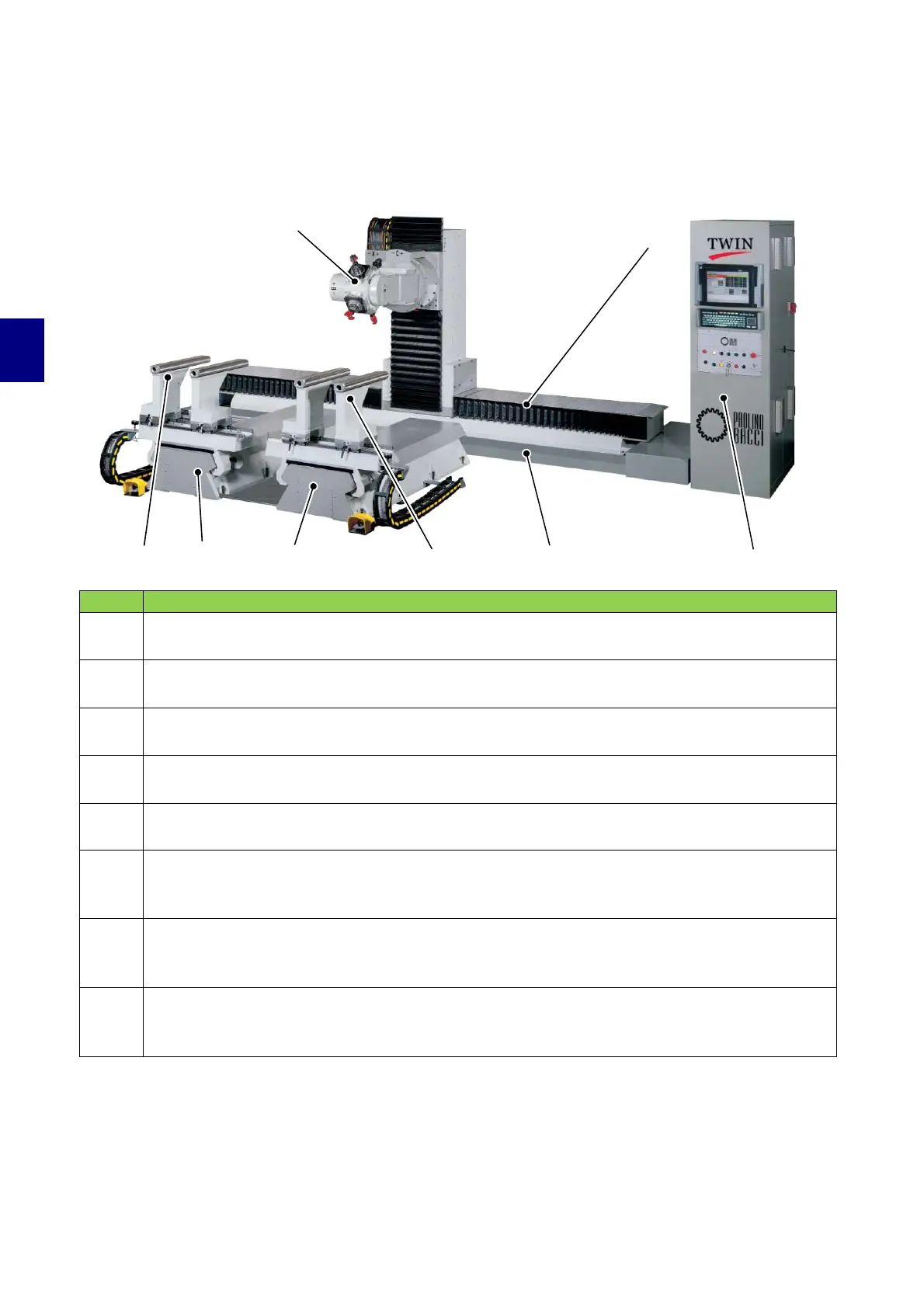

All screws and skids are automatically lubricated from the CN and lubrication is checked along the
line by a control sensor.The main units and optional units making up the machine are listed below
POS. COMPONENT DESCRIPTION
1
Machine body:
Single-strut machine structure
2
Strut (Z-axis) and machining head (B-A axis)
Set of devices that allow execution of the processing required.
3
X-axis
Support and movement carriage of the machining head along the X-axis.
4
Piece support devices (axes Y1 and Y2).
Piece support devices that allow processing along the Y-axis.
5
Tables
Units on which the piece support devices slide.
6
Enclosure:
an all-around safety guard that includes the entire machine. Access inside the enclosure
takes place through doors fitted with safe-access micro-switches.
7
Lubrication system:
automatically distributes lubricant to all connected points: skids and aces and ball bearing
screws.
8
Electrical cabinet:
contains the main controls and electronic equipment required to manage machine
operation, including numerical control and operator panel.
2
8 4
3
4
1 5 5
