8.4.5 Warping – Bow
About bow adjustment
A bow distortion can be adjusted so that a normal image is displayed. Positive adjustments angles introduce
more outside bow distortion. Negative adjustments introduce more inside bow distortion.

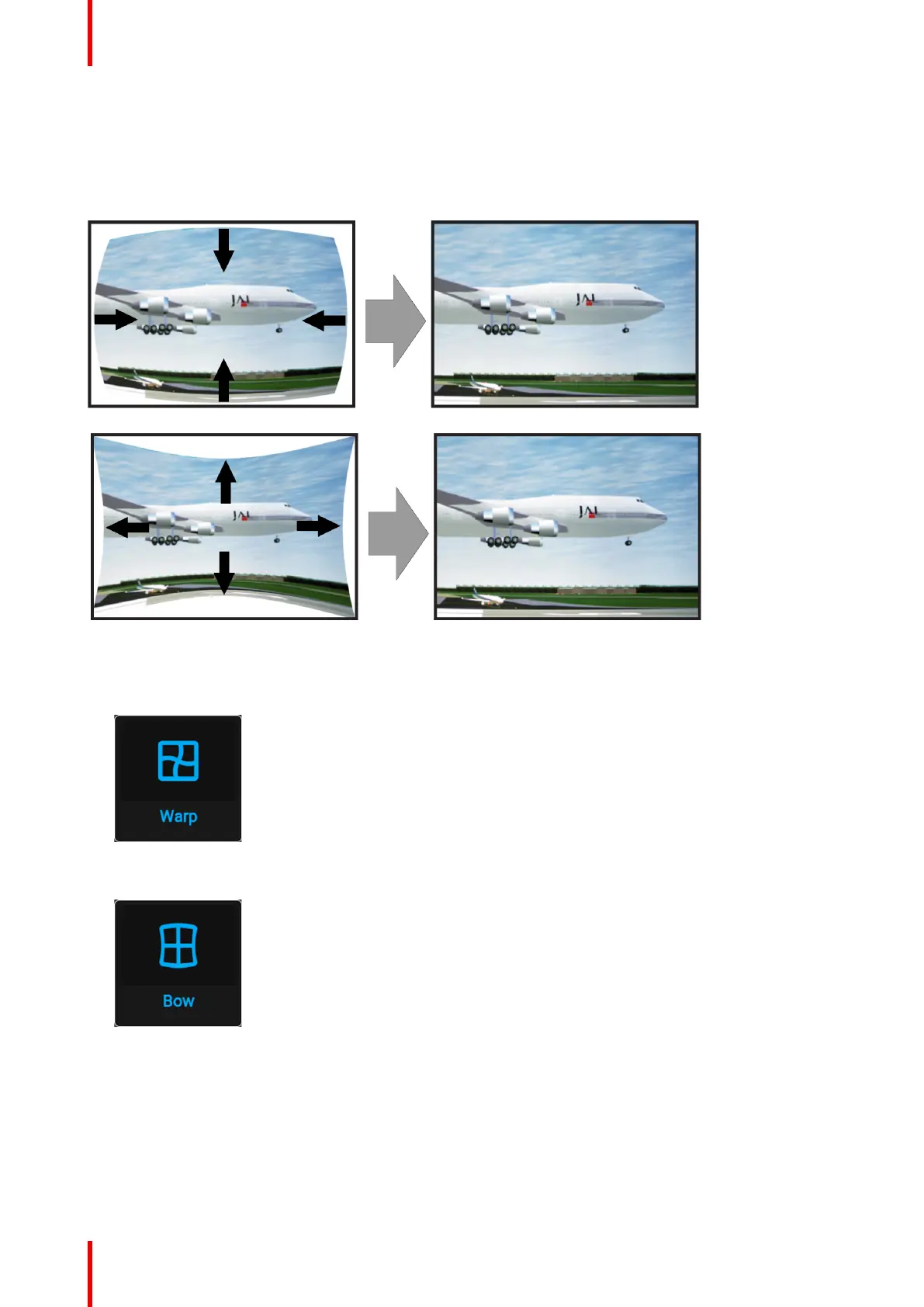

Image 8–27 Bow distortion
Symmetric bow correction
1. In the main menu, select Installation/Warp.
Image 8–28 Installation menu, Warp
2. In the Warp menu, select Bow.
Image 8–29 Warp menu, Bow
A check symbol at the bottom right corner indicates that the bow function is activated.
When the bow menu is selected, a grid will occur in the screen picture in order to visualize the adjustments
performed.
3. To enable Bow correction, make sure the Bow slider is set to On.
The slider is enabled when set to the right and when it is highlighted blue.
