105601–426 /17 F70 Series

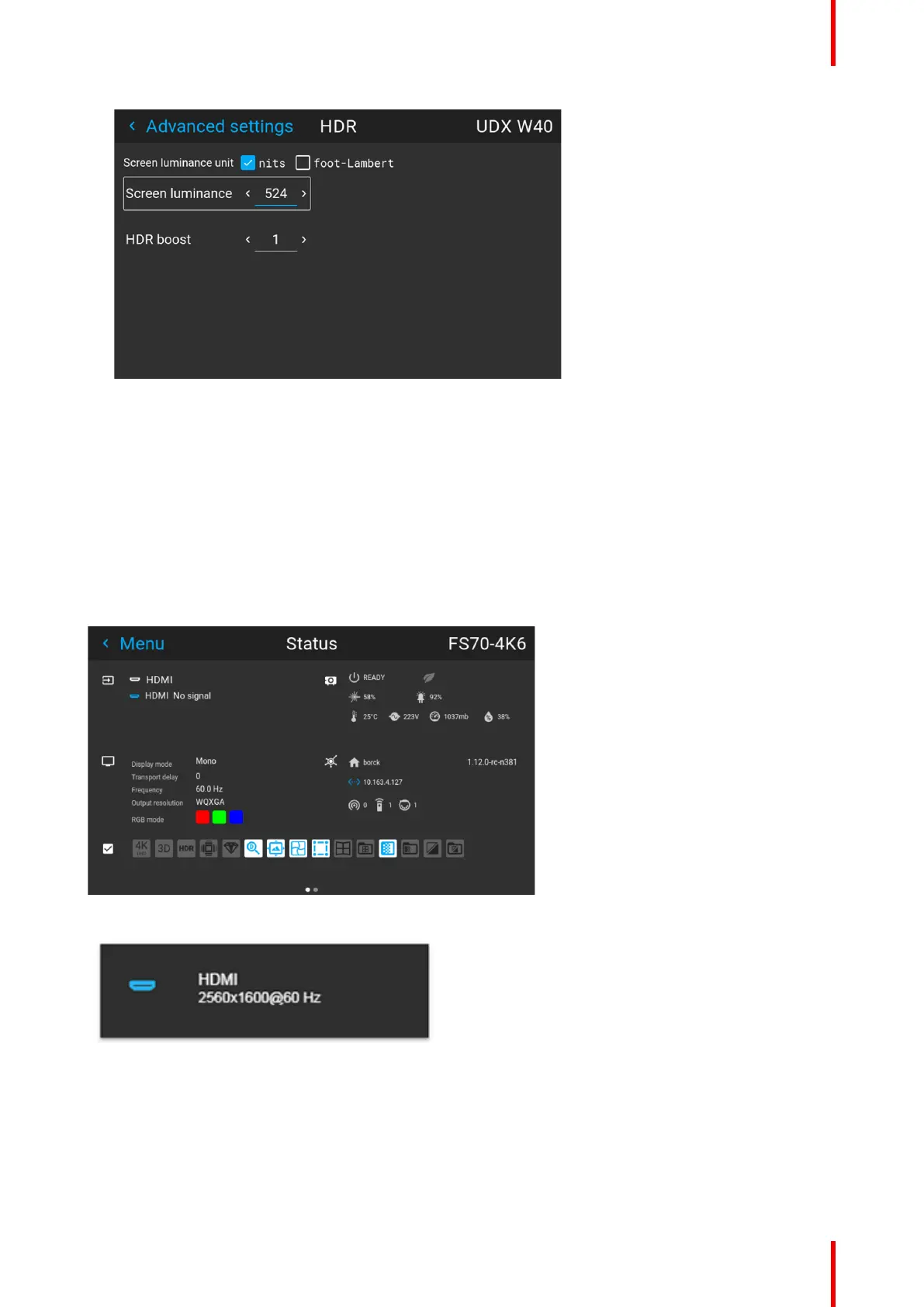

Image 7–31
2. Select the desired Unit (nits or foot-lambert).
3. Enter the Screen luminance (either in nits or foot-lambert).
4. Alter the HDR boost if necessary. You can modify this value to somewhere between 0.8 and 1.2.
7.8.7 HDR Status.
About HDR status
When an active source is HDR, an icon is visible in the status menu.
The HDR icon will also be visible in the “Source signal popup” icon in the lower right corner on the screen.
Image 7–32 HDR Icon.
Image 7–33 Source signal popup icon.
7.8.8 Night vision
About
When using e.g. displayport 1 as daylight image input, and displayport 2 as night vision input, this option make
it possible to swap these two channels in the image processing in order to synchronize with the NV goggles.
Image menu
