601–426 /17 F70 Series220
If other settings than SRP Off is desired, these settings can now be applied.

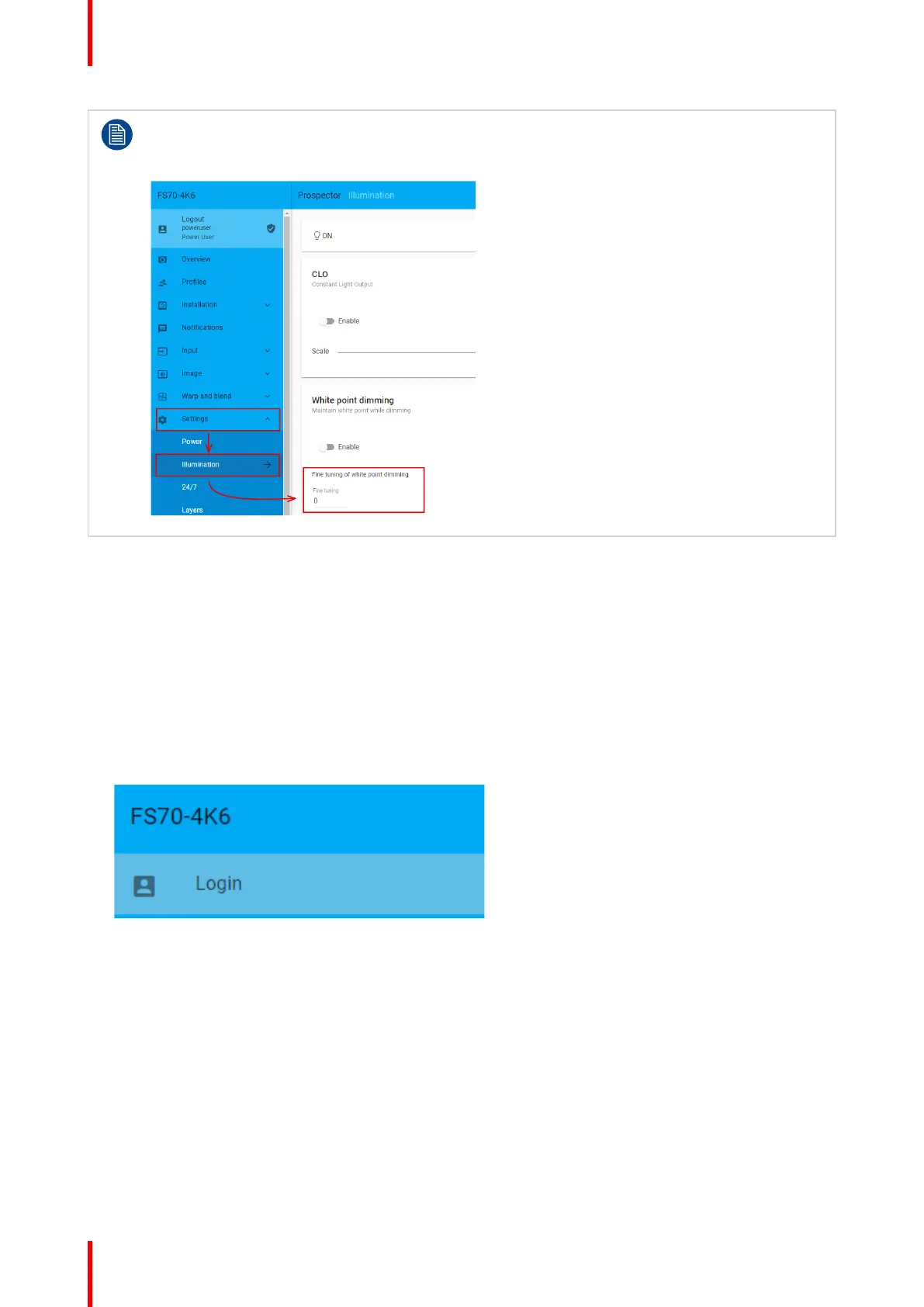

The white point can be fine-tuned through the fine tuning feature of MWPWD in Prospector
underSettings -> Illumination or through RealColor if desired
Image C–21
C.4 Native color calibration
General
The C1 color mentioned in this guide is only available on certain color wheels and Brilliant color modes. If no
color is displayed when using the C1 test pattern embedded in the Pulse SW, the color wheel and/or the
Brilliant color mode does not support C1.
As the C1 test pattern is only available through Prospector and the API, Prospector is the best option to
calibrate the colors of the projector.
1. Log on as Power user.
Image C–22
2. Select your desired settings for BC, SRP by entering the menu Image -> Settings
Color calibration guide
