601–426 /17 F70 Series182
13.1 Setup 3D mode.
Setup 3D mode.
1. Enter the Source menu, and select the desired input source.
• For active stereo input, select Displayport 1, DVI-1, HD BaseT or HDMI.
• For passive stereo input, select Dual displayport sequential, or Dual DVI sequential
2. Enter the menu Installation3D setup
When in 'auto stereo' display mode, the product shall automatically switch to 'active stereo' mode and
project synchronously at n times the input frequency - where n is as high as possible on the individual
products.
3. Roll down in the menu and select the Auto stereo selection in the Display mode menu.

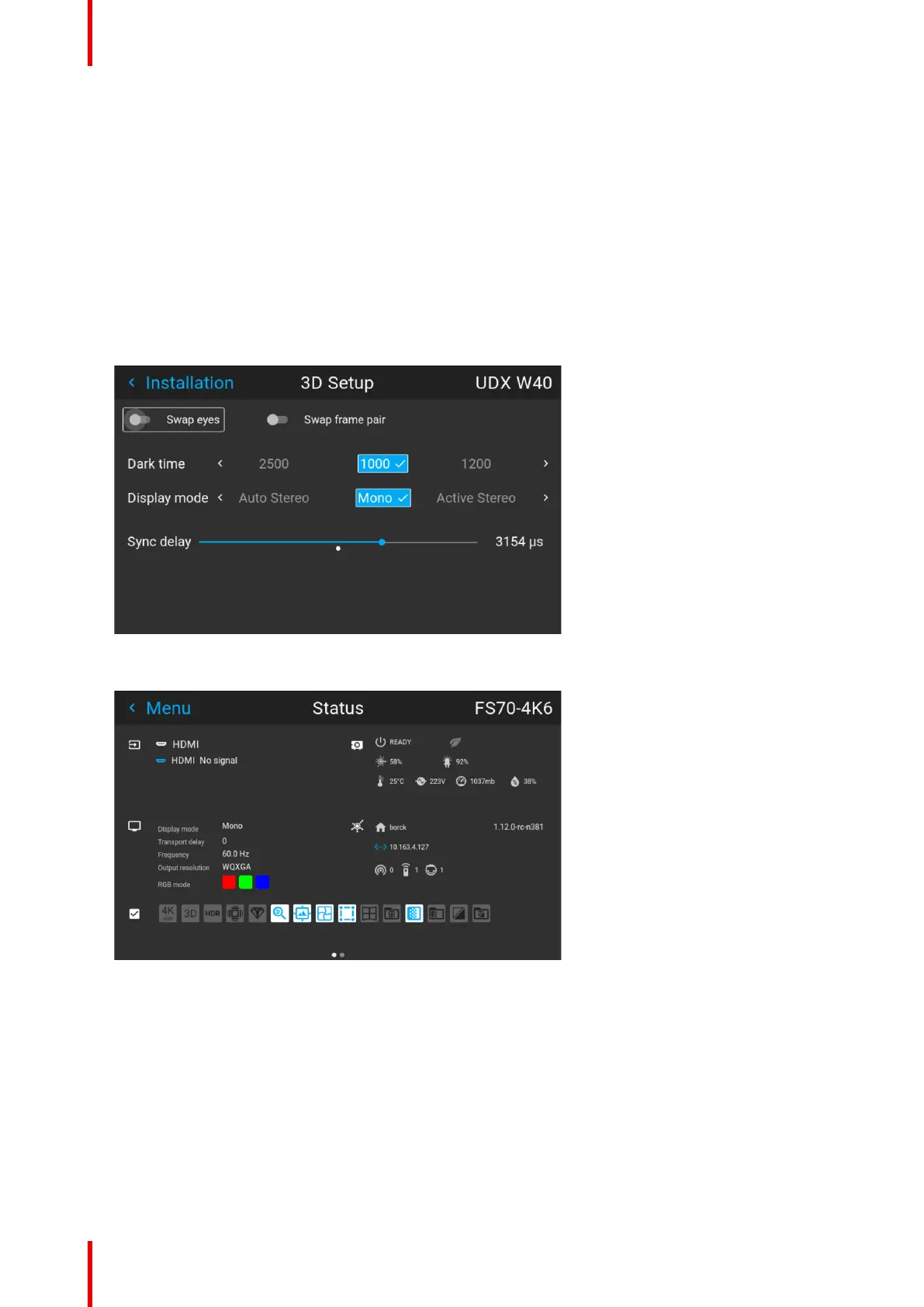

Image 13–1
4. When a HDMI 3D source is detected, it is shown in the source status that this is a 3D source.
Image 13–2
5. Enter the menu Installation/3D Setup, and select the necessary dark time. The projector detect the color
wheel, and only one option is available, depending on the color wheel.
Available color wheels with their respective dark times are :
• DCI: 1600us
• High Brightness: 1660us
• Color: 1850us
6. Run a 3D image or movie from the source.
Put on the 3D goggles, and verify by looking through the goggles with one eye at the time that only one
image is visible in each eye. A double picture or a shade of the picture from the other side shall not be
3D
